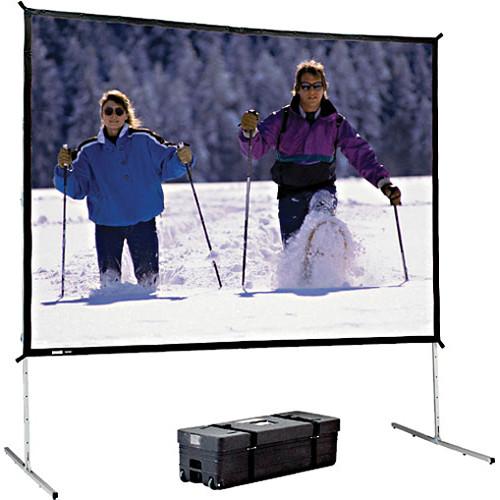

User Manual for Da-Lite 88702K Fast-Fold Deluxe Portable Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 88702K Fast-Fold Deluxe Portable Projection
- Product category: Folding Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Folding Screens
|
User manual for the Da-Lite 88702K Fast-Fold Deluxe Portable Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description - Fast Fold Deluxe Projection Screen
The Dalite Fast-Fold 10 x 10' Deluxe Portable Projection Screen is an excellent choice when you need a portable, free standing screen that sets up and collapses with a minimum of effort. The system is made with rugged 1.25" aluminum tube legs which feature quick release latches for rapid deployment. Whether for a trade show, point of purchase presentation or educational lecture, the Fast-Fold System fills the bill when you don't have need or space for a permanent installation. The screen assembles rapidly using the included Speedy Cranks. No other tools are required. The corner braces are concealed within frame tubing providing greater strength and protection. The legs, like the frame, make use of the Snap-Latch Hinge system. Completing the system is a handy wheeled polyethylene carrying case which can be thrown into your car or transported on a plane. The tab-tensioning feature assures a flat, undistorted image. The back of the screen is designed with additional bracing to promote an even flatness to the screen surface. When this is achieved, the projected image appears more professional leaving less room for your audience to be distracted by a potentially skewed image. Note: Always check with your airline carrier as to size restrictions - Snap latches on frame for easy use
- Inverted "T" legs support the screen and allow height adjustments up or down in 6" increments
- All steel hardware is plated
- Available with Da-Mat, Da-Tex (rear), Cinema Vision, Pearlescent and Dual Vision, all Fast-Fold Deluxe surfaces are interchangeable with standard Fast-Fold surfaces for easy substitution
UPC: 717068292826 In the Box Da-Lite 88702K Fast-Fold Deluxe Portable Projection Screen (10 x 10') Wheeled Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 88702K Fast-Fold Deluxe Portable Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 88702K Specs | | | Style | Fast-Fold Deluxe | | Front/Rear Projection | Front or Rear | | Mount | Free standing | | Finish | Dual Vision - flame retardant and mildew resistant; reinforced black binding on all four sides and will attach to front of frame with metal snaps | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 10 x 10' (3.1 x 3.1 m) | | Image Size | 116 x 116" (3 x 3 m) | | Diagonal | 170" (4.3 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Not Applicable | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Aluminum
With Black Anodized Frame | | Material | Aluminum | | Length | Not Applicable | | | | Shipping Weight | 92 lb (41.7 kg) Polyethylene carrying cases meet or exceed Air Transport Association (ATA) Specification 300 standards. Always check with your carrier | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 50.0 x 18.0 x 13.0" |
