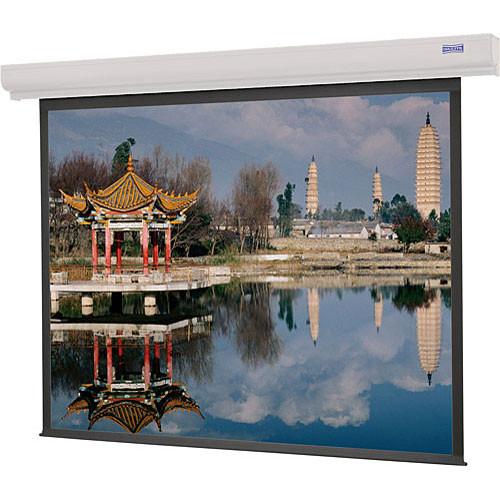

User Manual for Da-Lite 89724L Designer Contour Electrol Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 89724L Designer Contour Electrol Motorized
- Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)
|
User manual for the Da-Lite 89724L Designer Contour Electrol Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 84 x 84" Designer Contour Electrol Motorized Projection Screen is great for any room, especially boardrooms, where aesthetics are important. This reliable and fashionable screen features a built-in quality motor with a 3-position wall switch. The case is extruded aluminum and sleek measuring only 4.6 x 4.1" (HD). For those who prefer a more stylish finish to their case, a selection of various veneers is available upon purchase. The in-the-roller motor is designed to provide reduced noise during operation. This screen is available in a variety of designs and finishes to accommodate your venue. Note: An optional choice of seven veneer finishes is available for case. Standard veneers: Cherry, Mahogany, Light Oak, Natural Walnut, Medium Oak, Honey Maple and Heritage Walnut. Standard laminates: Cherry, Mahogany, Gunstock Walnut, and Light Oak. Cases covers with Honey Maple, Light Oak and Medium Oak finishes come standard with white base and end caps. Cherry, Mahogany, Natural Walnut and Heritage Walnut cases covers come with black base and end caps. Specify when purchasing. - The optional choice of a veneer or laminate case finish will give your screen a warmer and more classic appearance
- Patented in-the-roller motor mounting system for quiet operation
- Custom finishes available upon request
- Front of the case is easily removed for installation
- Matte White and Glass Beaded fabric will be seamless in select sizes
UPC: 717068814592 In the Box Da-Lite 89724L Designer Contour Electrol Motorized Screen (84 x 84") Three-Position Wall Switch Cover Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 89724L Designer Contour Electrol Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 89724L Specs | | | Style | Designer Contour Electrol | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | Spectra; flame retardant and mildew resistant fiberglass | | Tension Control | Non-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 84 x 84" (2.1 x 2.1 m) | | Diagonal | 119" (3 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Standard black masking borders | | | | Voltage | 120V, 60Hz | | Integrated Control | With Low Voltage Controller
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions | | Control Options | 3-position control switch with cover plate (included) | | | | Color | White, lightly textured powder coat | | Material | Extruded aluminum | | Length | 93.25" (2.4 m) | | | | Shipping Weight | 42 lbs (19.1kg) | | | | Package Weight | 42.0 lb | | Box Dimensions (LxWxH) | 106.0 x 8.0 x 6.0" |
