User Manual for Da-Lite 92603LS Advantage Electrol Motorized Projection Screen

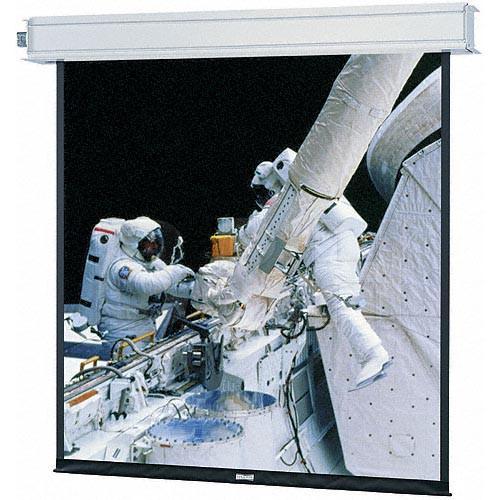

Click to enlarge the picture
Da-Lite 92603LS Advantage Electrol Motorized Projection Screen Contents of the user manual for the Da-Lite 92603LS Advantage Electrol Motorized Projection
  • Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
  • Brand: Da-Lite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)

User manual for the Da-Lite 92603LS Advantage Electrol Motorized Projection contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Da-Lite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!



Product description

The Dalite 60 x 60" Advantage Electrol Projection Screen is a unique design. Construction of this ceiling recessed screen permits the case to be installed first and the fabric added later once a suitable projection surface is decided on. This is a big "plus" since companies constructing viewing rooms may not be certain of what they need in a screen. However, the Advantage permits the basic frame to be installed in the ceiling - ready for a finished fabric assembly to be added when all is prepped.The exceptionally quiet motor gives it an edge over similarly priced screens. Quiet "up" and "down" operation makes the Advantage more professional in appearance as well as less distracting to your audience.
The Advantage Electrol has several options which make it a great choice for schools, lecture halls, libraries and corporate environments. Because it can be installed during the construction phase of your office, there is no pressure to buy a "finished" screen while budgets may still be on the table. The option of many remote controls also adds to its flexibility. Note: The Deluxe Advantage has a motorized door. The standard (non-Deluxe) Advantage will be ceiling recessed, it doesn't have the motorized door. Instead, it has a 2" slot on the bottom where the fabric drops out.
  • Designed to have the case installed during the "rough-in" stages of construction and the fabric assembly during the finish stage
  • The Silent Motor feature assures ultra quiet operation - a must for venues such as libraries, hospitals and boardrooms.
  • Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
  • Standard with a Decora style three position wall switch
  • UL Plenum Rated case
  • Matte White fabric up to and including 10' high will be seamless; Glass Beaded fabric up to and including 8' high will be seamless; Video Spectra 1.5 and High Contrast Matte White fabric are available in sizes up to 8' high; High Power fabric is available in sizes up to 9'x12' and will be seamless up to 6' high
UPC: 717068323964 In the Box Da-Lite 92603LS Advantage Electrol Motorized Projection Screen (60 x 60")
  • Wall Switch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Da-Lite 92603LS Advantage Electrol Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Da-Lite 92603LS Specs

    Style Advantage Electrol
    Front/Rear Projection Front
    Mount Ceiling recessed
    Finish Matte White HC; flame retardant and mildew resistant fiberglass
    Tension Control Non-Tensioned
    Keystone Control Not Applicable
    Overall Size Not Specified by Manufacturer
    Image Size 60 x 60" (1.5 x 1.5 m)
    Diagonal 85" (2.2 m)
    Format Square (Audio-Visual)
    Aspect Ratio 1:1
    Masking Options Standard black masking borders
    Voltage 120VAC, 60Hz
    Integrated Control Low Voltage Controller

    Motor mounted inside the roller
    Noise silencer to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor
    Electric brake to prevent coasting
    Preset, adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
    Control Options Single Motor Low Voltage Control System
    Dual Motor Low Voltage Control System
    Single Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Dual Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Color White
    Material Extruded aluminum
    Length 65.5" (1.7 m)
    Shipping Weight 61 lbs (27.7kg)
    Package Weight 60.0 lb
    Box Dimensions (LxWxH) 73.0 x 13.0 x 10.0"
