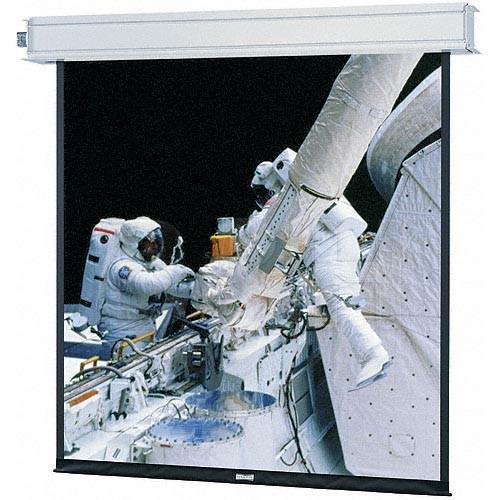

User Manual for Da-Lite 92614LS Advantage Electrol 69 x 92" Ceiling-Recessed Motorized Screen

Click to enlarge the picture
Da-Lite 92614LS Advantage Electrol 69 x 92" Ceiling-Recessed Motorized Screen Contents of the user manual for the Da-Lite 92614LS Advantage Electrol 69 x
  • Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
  • Brand: Da-Lite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)

User manual for the Da-Lite 92614LS Advantage Electrol 69 x contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Da-Lite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!



Product description

Designed to eliminate the extra step of finishing the screen with trim, the 120V 92614LS Advantage Electrol 69 x 92" Ceiling-Recessed Motorized Screen is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening, eliminating the need to complete additional trim work. Sliding installation brackets are included to make it easy to attach the screen housing to the structure above the drop ceiling.

The Advantage Electrol screen features simple in-ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage.
    High Contrast Matte White Screen Surface
  • High Contrast Matte White is a fiberglass surface with a gray base for deeper reproductions of black, which improves contrast. It is for non-high-definition projection and environments with moderate ambient light. Cone: 100° Gain: 1.1
    Key Features
    • UL Plenum-rated case
    • White powder-coated case for a clean aesthetic
    • Decora-style, three-button wall switch
    • Black backing to retain projected brightness
    • Seamless surface
    Silent Motor
  • Designed to provide silent operation when raising or lowering the screen
    Low Voltage Control (LVC)
  • Allows the included wall switch, as well as devices such as automation systems, third-party wall switches, and remotes that support LVC, to raise or lower the screen remotely
UPC: 717068325296 In the Box Da-Lite 92614LS Advantage Electrol 69 x 92" Ceiling-Recessed Motorized Screen (120V)
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Da-Lite 92614LS Advantage Electrol 69 x 92" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Da-Lite 92614LS Specs

    Front/Rear Projection Front
    Aspect Ratio 4:3
    Style Ceiling-recessed
    Viewing Area 69 x 92" / 175.3 x 233.7 cm
    Diagonal 120" / 304.8 cm
    Gain 1.1
    Viewing Angle 100°
    Screen Surface High Contrast Matte White
    Motor Quiet
    Included Controls Low voltage control
    Length 101.5" / 257.8 cm
    Voltage 120 VAC/60 Hz
    Package Weight 90.0 lb
    Box Dimensions (LxWxH) 110.0 x 13.0 x 10.0"
