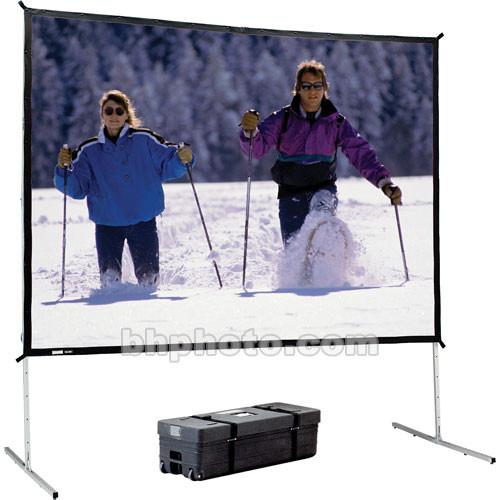

User Manual for Da-Lite 95693 Fast-Fold Deluxe Screen System Click to enlarge the picture
Contents of the user manual for the Da-Lite 95693 Fast-Fold Deluxe Screen System
- Product category: Folding Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Folding Screens
|
User manual for the Da-Lite 95693 Fast-Fold Deluxe Screen System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description - Fast Fold Deluxe Projection Screen
The Fast-Fold Deluxe Screen System from Da-Lite is constructed of sturdy 1.25" (3.2 cm) square aluminum tubing and feature easy release latches for simple, quick set up and tear down of the screen. When you don't have room for a permanently installed screen, the Fast-Fold system is the answer. It stores in a rugged storage case which also serves well when you are travelling. It's great for getting through airports or when you need to throw the whole thing in the back seat of a car (or trunk). The screen assembles easily and with a minimum of fuss.The tab-tensioning feature assures a flat, undistorted image. The back of the screen is designed with additional bracing to promote an even flatness to the screen surface. When this is achieved, the projected image appears more professional leaving less room for your audience to be distracted by a potentially skewed image. Note: The Deluxe Fast-Fold System offers a stronger frame and legs over the Standard Fast-Fold System - Speedy Cranks for easy assembly; screen can be adjusted up and down in 6" (15.2 cm) increments on legs
- Fast-Fold Deluxe frames fold without coming apart utilizing simple Snap-Latch Hinge design; legs incorporate same Snap-Latch Hinge and concealed corner brace design as frame
- Corner braces are concealed within frame tubing providing greater strength and protection
- Rugged 1.25" extruded aluminum tubing on frame provides greater strength while allowing for lightweight frame reliability
- All Fast-Fold Deluxe surfaces are interchangeable with standard Fast-Fold surfaces for easy substitution
- Complete screen also includes a rugged carrying case with wheels and is available in sizes from 54 x 54" up to 10'6 x 14'; durable wheeled poly case has built-in handles and a Speedy Crank storage compartment 1
Please Note: Polyethylene carrying cases meet or exceed Airline Transportation Association (ATA) specification 300 standards close In the Box Da-Lite 95693 Fast-Fold Deluxe Screen System (10 x 10') Wheeled Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 95693 Fast-Fold Deluxe Screen System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 95693 Specs | | | Style | Fast-Fold Deluxe Screen System | | Front/Rear Projection | Rear | | Mount | Free-standing | | Finish | DA-Tex HC; fire and mildew resistant: foldable black backed material | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 10 x 10' (3.1 x 3.1 m) | | Image Size | 116 x 116" (3.0 x 3.0 m) | | Diagonal | 170" (4.3 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Not Applicable | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Clear etched and anodized | | Material | Hard alloy aluminum tubing | | Length | Not Specified by Manufacturer | | | | Weight | Not Specified by Mahufacturer | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 50.0 x 18.0 x 13.0" |
