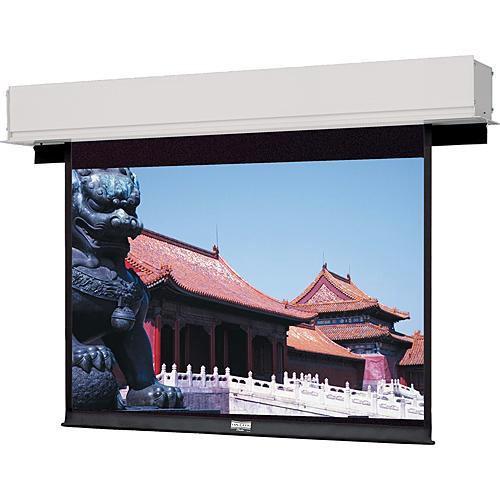

User Manual for Da-Lite Advantage Deluxe Tensioned Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite Advantage Deluxe Tensioned Motorized Front
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite Advantage Deluxe Tensioned Motorized Front contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 90x160" Advantage Deluxe Tensioned Motorized Front Projection Screen is unique in its design. It is manufactured to be installed during the construction phase of your media, class or board room. Afterwards, the fabric is added to complete the set-up. This stylish ceiling recessed screen is for those who don't want the screen showing when it is not immediately needed but available at the flip of a switch. For easy installation, the Tensioned Advantage Deluxe is available with SCB-100 and SCB-200 (RS-232 serial control board) or Low Voltage Control unit built into the case. Tensioned models are made with a thin vinyl surface that is stretched to assure a perfectly flat surface. Non-tensioned screens are fiberglass and not as taut as tensioned models. Deluxe models have a door that opens and closes, Non-Deluxe models have a 2" slot. - Handsome white powder coated closure doors and case provide a clean look and allow easy installation of ceiling tiles
- Front projection surfaces standard with black backing for opacity
UPC: 717068041097 In the Box Da-Lite Advantage Deluxe Tensioned Motorized Front Projection Screen (90x160") Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Advantage Deluxe Tensioned Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 35179R Specs | | | Style | Advantage Deluxe | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Matte White - flame retardant and mildew resistant | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 90x160" (2.3 x 4.0 m) | | Diagonal | 184" (4.7 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Black masking borders standard | | | | Voltage | Door is 120VAC, 60Hz, 1.2 amp
Screen motor is electrically operated 120 VAC, 60Hz, 1.4 amp | | Integrated Control | with built-in SCB-100 (RS-232 Serial Control Board)
Two motors - one to operate door and one to operate screen
Pre-set but adjustable limit switches to automatically stop fabric door in the "up" and "down" positions | | Control Options | Single motor Low Voltage Control(LVC) - external
Single motor Low Voltage Control(LVC) - built-in electrical connections will be on right end of screen case on units with built-in LVCs
Wireless Remote Control for LVC
Radio Frequency Remote
Infrared Remote
Video Projector Interface - 12V or 5V
Key Locking Cover Plate for 120V Switch or LVC
Key Operated Switch for 120V only (NOTE: Cannot be used with LVC)
220/240 Volt (50Hz) Motor
NET-100 Ethernet-Serial Adapter | | | | Color | White | | Material | Rigid aluminum | | Length | 184" (405cm) | | | | Shipping Weight | 203 lbs (92.3kg) | | | | Package Weight | 198.0 lb | | Box Dimensions (LxWxH) | 186.0 x 13.0 x 10.0" |
