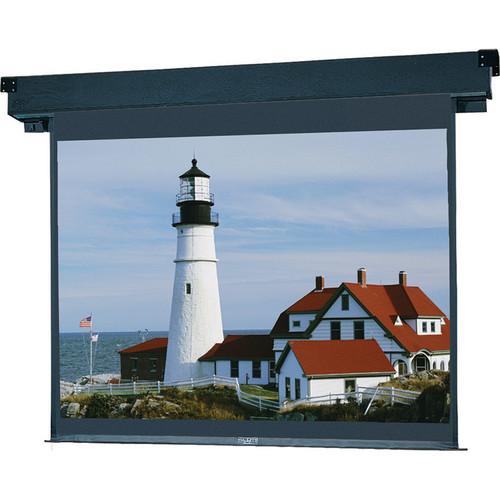

User Manual for Da-Lite Boardroom Electrol 16:10 Wide Format Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite Boardroom Electrol 16:10 Wide Format
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite Boardroom Electrol 16:10 Wide Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description This Boardroom Electrol HDTV Fixed Frame Projection Screen from DA-Lite has a 50.0 x 80.0" viewing area with a non-tensioned Matte White finish. Matte White has traditionally been the most popular screen finish for general use especially where ambient light is controllable. This finish produces an evenly lit image with accurate black and white color rendition. It features a 1.0 Gain rating and a wide 60° viewing angle with uniform edge-to-edge diffusion and Greenguard certification for indoor use. If the finish becomes soiled, it can be cleaned with mild soap and water.This UL listed screen includes a quick-reversal type motor that is oiled for life and features automatic overload cutoff. It also has an electric brake that prevents the screen from coasting, i.e. drifting when it is stopped. The ceiling recessed construction includes a door that automatically opens with a gravity drop once the motor is engaged. The wood casing is finished with a black primer that is ready for final treatment by the owner. Completing the screen is a three-position wall switch and Decora Wall Plate. A number of additional control options are available including Radio Frequency and Infrared remotes. In the Box Da-Lite Boardroom Electrol 16:10 Wide Format Projection Screen (50.0 x 80.0", Matte White) Mounting Hardware Three-Position Wall Switch Decora Wall Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Boardroom Electrol 16:10 Wide Format Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 70142 Specs | Style | Boardroom Electrol | | Front/Rear Projection | Front | | Mount | Ceiling recessed / Front projection | | Finish | Matte White; flame retardant and mildew-resistant fiberglass | | Tension Control | Non-tensioned | | Keystone Control | No | | | | Image Size | 50.0 x 80.0" (127.0 x 203.2 cm) | | Diagonal | 94.0" (2.4 m) | | Format / Aspect Ratio | Wide / 16:10 | | Gain / Viewing Angle | 1.0 / 60° (L/R) | | Masking Options | None | | | | Voltage | 120VAC / 60 Hz
Not more than 2.4 amp | | Integrated Control | Three-position control switch with cover plate | | Control Options | Single Motor Low Voltage Control (LVC) - external
Wireless Remote Control for LVC
Radio Frequency Remote
Radio Frequency Range Extender
Infrared Remote
Video Projector Interface Control - external
External SCB-100 - RS-232 Serial Control Board
NET-100 Ethernet-Serial Adapter
Key Locking Cover Plate for 120V or LVC Switch
Silent Motor
Key Operated Switch for 120V only (NOTE: Cannot be used with LVC) | | Color | Black primer coat | | Material | Wood | | Length | 97.5" (248.0 cm) | | Shipping Weight | Approx. 91.0 lb (41.3 kg) | | | | Package Weight | 97.0 lb | | Box Dimensions (LxWxH) | 106.0 x 9.0 x 8.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
