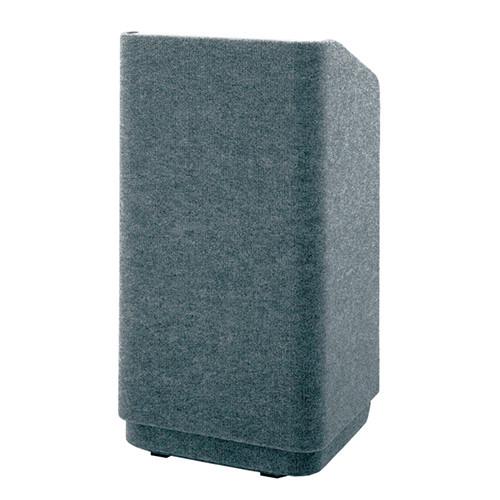

Product description The gray Concord 25" Carpeted Floor Lectern from Da-Lite comes with electric height adjustment and a sound system from AmpliVox Sound Systems. The sound system provides up to 120W of RMS power. This sleek and elegantly styled lectern features an oversized reading surface that holds a 3-ring binder, heavy-duty industrial casters for easy mobility, and a spacious storage shelf. Note: Power supply and amplifier can be accessed internally.
Controls can be accessed by removing the dash panel. - Lectern
-
- Free-standing floor lectern
- Sleek and elegantly styled lectern that blends with any modern conference room setting
- Flush panels with rounded corners
- Incorporates a high-intensity reading light and an LED digital clock/timer with countdown capability
- Electrically operated height adjustment mechanism with electronic control to adjust the height from 47 to 55” (119.3 to 140cm)
- Features a key-locked storage area below the reading surface
- Carpeted exterior will not wear out even after long-term use
1 Please Note: Power interruptions will cause the clock to flash until reset. close - Sound System
-
- Up to 120W RMS power output

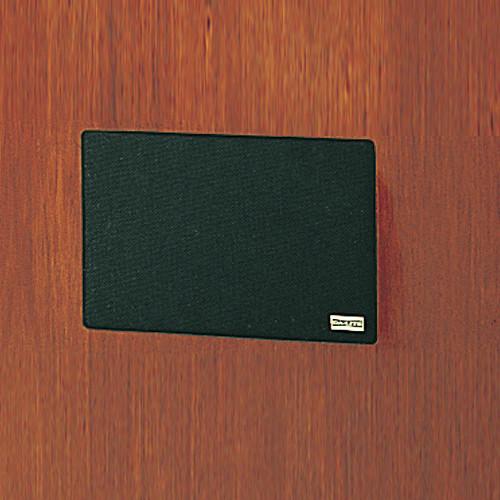

- 6.5” neodymium woofer with high-output tweeter
- Auxiliary microphone (XLR jack) input located under the reading surface for use with a second mic or wireless microphone input
- Balanced, phantom-powered auxiliary mic input with low impedance (600) for use with condenser-type microphones
- Auxiliary line input (1/4” phone jack) used for playback of tape players, musical instruments, VCRs, or audio feeds from other sound systems
- Volume control located on the dash panel
- A composite auxiliary signal line output (1/4" phone jack) can be fed directly to an audio or video tape recorder
- You can combine the sound system with an external one via the line output for a greater sound output, or the line output may be fed to the input of an assisted listening device for persons with special needs
- External speaker output (1/4" phone jack) can be used to drive external speakers in lieu of the internal lectern speaker
- Output of amplifier is self-protecting against overload
2 Please Note: Inserting a plug into external speaker jacks will disconnect internal speaker.
Low impedance (<2Ω) will cause excessive heating, thereby reducing the amplifier output. close In the Box Da-Lite Concord 25" Carpeted Floor Lectern with Electric Height Adjustment & Sound System (Gray) High-Intensity Reading Light Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Concord 25" Carpeted Floor Lectern with Electric Height Adjustment & Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98060GRC Specs | | | Type | AmpliVox sound system | | Rated Power Output | 100 W RMS, 8 Ω
120 W RMS, 4 Ω | | Frequency Response | 40 Hz to 20 kHz, ±3 dB | | Speaker Type | 6.5" (16.5 cm) Neodymium woofer with high-output tweeter
Maximum SPL: 114 dB at 3.2' (1.0 m) | | Mic Input | Lo-Z, balanced, phantom power, XLR cable to preamplifier
Auxiliary: Lo-Z, balanced, phantom power, XLR jack on power amplifier housing | | Input Sensitivity | Microphone: -58 dB
Line Input: -20 dB | | Line Output | Post fader, 600 Ω buffered, unbalanced, 1/4" jack on power amplifier housing | | AC Power Requirements | 110 to 125 VAC, 50 to 60 Hz
210 to 240 VAC, 50 to 60 Hz | | Power Consumption | Maximum: 120 W
Nominal: 40 W | | | | Power | 110 / 120 VAC, 3-wire outlet | | Adjustable Height | 47 to 55" (119 to 140 cm) | | Reading Surface (WxD) | 22.5 x 15.5" (57.1 x 39.3 cm) | | Dimensions (H x W x D) | At Minimum Height: 47.0 x 25.0 x 22.0" (119.3 x 63.5 x 56.0 cm)
At Maximum Height: 55.0 x 25.0 x 22.0" (140.0 x 63.5 x 56.0 cm) | | Weight | 163 lb (74 kg) | | | | Package Weight | 146.0 lb | | Box Dimensions (LxWxH) | 57.0 x 32.0 x 28.0" |
