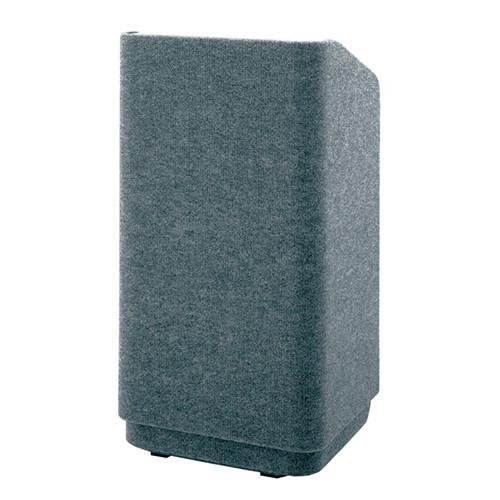

User Manual for Da-Lite Concord 32" Carpeted Floor Lectern with Sound System Click to enlarge the picture
Contents of the user manual for the Da-Lite Concord 32" Carpeted Floor Lectern
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Concord 32" Carpeted Floor Lectern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The gray Concord 32" Carpeted Floor Lectern from Da-Lite comes with a sound system from AmpliVox Sound Systems. The system provides up to 120W of RMS output. The lectern is sleek and elegantly designed with flush panels and rounded corners. This lectern features an oversized reading surface that holds a 3-ring binder. It also comes with heavy-duty industrial casters for easy mobility. Note: Power supply and amplifier can be accessed internally.
Controls can be accessed by removing the dash panel. - Lectern
-
- Free-standing floor lectern
- Sleek and elegantly styled lectern that blends with any modern conference room setting
- Incorporates a high-intensity reading light and an LED digital clock/timer with countdown capability
- Features a key-locked storage area below the reading surface
- Carpeted exterior will not wear out even after long-term use
- Flush panels with rounded corners 1
Please Note: Power interruptions will cause the clock to flash until reset. close
- Sound System
-
- Up to 120W RMS power output
- 6.5” Neodymium woofer with high-output tweeter
- Auxiliary microphone (XLR jack) input located under the reading surface for use with a second mic or wireless microphone input
- Balanced, phantom-powered auxiliary mic input with low impedance (600Ω) for use with condenser-type microphones
- Auxiliary line input (1/4” phone jack) used for playback of tape players, musical instruments, VCRs, or audio feeds from other sound systems
- Volume control located on the dash panel
- A composite auxiliary signal line output (1/4" phone jack) can be fed directly to an audio or video tape recorder
- You can combine the sound system with an external one via the line output for a greater sound output, or the line output may be fed to the input of an assisted listening device for persons with special needs
- External speaker output (1/4" phone jack) can be used to drive external speakers in lieu of the internal lectern speaker
- Output of amplifier is self-protecting against overload
2 Please Note: Inserting a plug into external speaker jacks will disconnect internal speaker.
Low impedance (<2Ω) will cause excessive heating, thereby reducing the amplifier output. close In the Box Da-Lite Concord 32" Carpeted Floor Lectern with Sound System (Gray) - High-Intensity Reading Light
- Limited 1-Year Warranty on Parts & Labor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Concord 32" Carpeted Floor Lectern with Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98066GRC Specs | | | Type | AmpliVox sound system | | Rated Power Output | 100 W RMS, 8 Ω
120 W RMS, 4 Ω | | Frequency Response | 40 Hz to 20 kHz, ±3 dB | | Speaker Type | 6.5" (16.5 cm) Neodymium woofer with high-output tweeter
Maximum SPL: 114 dB at 3.2' (1.0 m) | | Mic Input | Lo-Z, balanced, phantom power, XLR cable to preamplifier
Auxiliary: Lo-Z, balanced, phantom power, XLR jack on power amplifier housing | | Input Sensitivity | Microphone: -58 dB
Line Input: -20 dB | | Line Output | Post fader, 600 Ω buffered, unbalanced, 1/4" jack on power amplifier housing | | AC Power Requirements | 110 to 125 VAC, 50 to 60 Hz
210 to 240 VAC, 50 to 60 Hz | | Power Consumption | Maximum: 120 W
Nominal: 40 W | | | | Power | 110 / 120 VAC, 3-wire outlet | | Reading Surface (WxD) | 29.5 x 15.5" (74.9 x 39.3 cm) | | Dimensions (H x W x D) | 48.0 x 32.0 x 22.0" (122.0 x 81.2 x 56.0 cm) | | Weight | 133.00 lb (60.3 kg) | | | | Package Weight | 155.0 lb | | Box Dimensions (LxWxH) | 58.0 x 38.0 x 28.0" |
