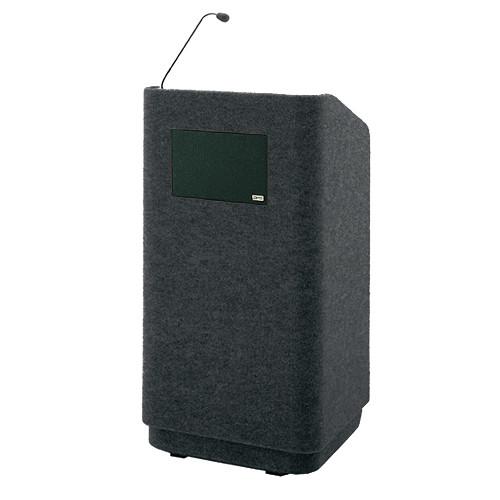

User Manual for Da-Lite Concord 42" Special Needs Floor Lectern with Gooseneck Microphone and Electric Height Adjustment Click to enlarge the picture
Contents of the user manual for the Da-Lite Concord 42" Special Needs Floor
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Concord 42" Special Needs Floor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Da-Lite Concord 42" Carpeted Special Needs Floor Lectern with Gooseneck Microphone and Electric Height Adjustment is ADA (Americans with Disabilities Act) compliant. There is room in back to accommodate a wheelchair, and the lectern is electronically height adjustable from a sitting position of 36' to 48" if you're standing. The black carpeted covering provides protection if the lectern is frequently used, or rented out.A 120VAC, 60Hz AmpliVox 100 watt amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 120 watt speaker includes a 6.5" woofer and high-output tweeter. The system features a dynamic gooseneck microphone and mount. There are Braille indications on all control components. There is also an aux line as well as lines for mic in/out. The spacious reading surface has room for a 3-ring binder. Four casters, two lockable, allow you to roll the lectern to its chosen location. In the Box Da-Lite Concord 42" Special Needs Floor Lectern with Gooseneck Microphone and Electric Height Adjustment (Black Carpeted) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Concord 42" Special Needs Floor Lectern with Gooseneck Microphone and Electric Height Adjustment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 76414BLC Specs | Construction | Wood; rectilinear design | | Finish | Carpeted covering | | Adjustments | Height: 38 to 46" (96.5 to 117 cm) | | Sound System | AmpliVox amp
Rated Power Output: 100 watts at 8 Ω
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | Yes; 120 W at 8 Ω
6.5 (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 VAC, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): buffer isolated, 1/4" phone
Two aux speaker outputs | | Electrical Components | LED digital clock
Timer with countdown function | | Controls | Mic volume
Bass/treble
Switch for raise/lower functions
Switch for LED clock/timer
All controls have Braille identification | | Casters | Four; two lockable | | Power Requirements | 110-125 VAC, 50/60 Hz
Includes 12' power cord suitable for a North American outlet | | Power Consumption | Not specified by manufacturer | | Shelf | No | | Reading Surface | 30.0 x 42.0" (76 x 107 cm) | | Dimensions | 46 x 42 x 30" (117 x 107 x 76 cm) | | Weight | 233 lb (106 kg) | | | | Package Weight | 263.0 lb | | Box Dimensions (LxWxH) | 48.0 x 47.0 x 36.0" |
