User Manual for Da-Lite Da-Lift 15M Electric Projector Lift With Plenum Cover Click to enlarge the picture
Contents of the user manual for the Da-Lite Da-Lift 15M Electric Projector Lift
- Product category: Projector Lifts Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Projector Lifts
|
User manual for the Da-Lite Da-Lift 15M Electric Projector Lift contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

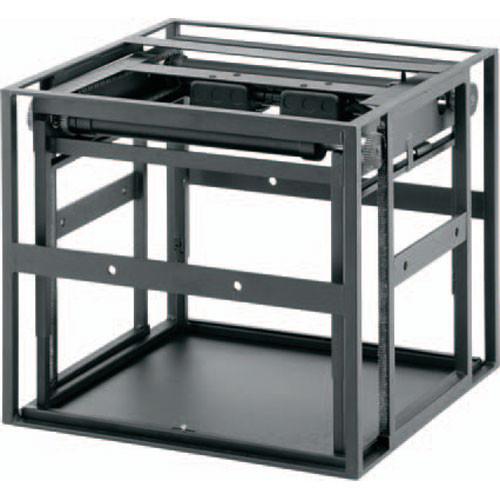

Product description The Da-Lite Da-Lift 15M Electric Projector Lift With Plenum Cover (120VAC) is designed to raise and lower projectors weighing up to 40 lbs (18.14 kg) in a 2 x 2' (70 x 70 cm) ceiling recessed installation. The black welded steel frame has 2 electrical outlets and operates with a rack-and-pinion drive lift mechanism. The specially designed motor is a three-wire with ground, quick-reversal type, is oiled for life, and has an automatic thermal overload cutout, integral gears, capacitor, and an electric brake that prevents coasting. The included plenum cover meets building and/or fire codes. A three-position control switch with cover plate is included. Optional low-voltage, radio-frequency or infrared remotes are available. An optional plenum kit is available where required by code. This lift is supplied for use with 120VAC. - For use in a recessed ceiling
- Included plenum cover meets building and/or fire codes
- Load capacity of 40 lbs (18.14 kg)
- Optional low-voltage, radio-frequency or infrared remotes are available
In the Box Da-Lite Da-Lift 15M Electric Projector Lift With Plenum Cover (120VAC) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Da-Lift 15M Electric Projector Lift With Plenum Cover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 7366 Specs | Lift Type | Electric | Depth From Mounting Source | Not specified by manufacturer | Mounting Source Opening (WxD) | 22.62 x 22" (57.45 x 55.88 cm) | Travel Distance | 15" (38.1 cm) | | Control Option | A three-position control switch with cover plate is included; Optional low-voltage, radio-frequency or infrared remotes are available | | Construction | Black welded steel | Power Requirements | 120VAC | Maximum Current Draw | 1.5A | Dimensions | 22.62 x 20 x 22" (57.45 x 50.8 x 55.88 cm) | Weight Capacity | 40 lbs (18.14 kg) | Weight | 87 lbs (39.6 kg) | | Package Weight | 137.0 lb | Box Dimensions (LxWxH) | 31.0 x 28.0 x 28.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
