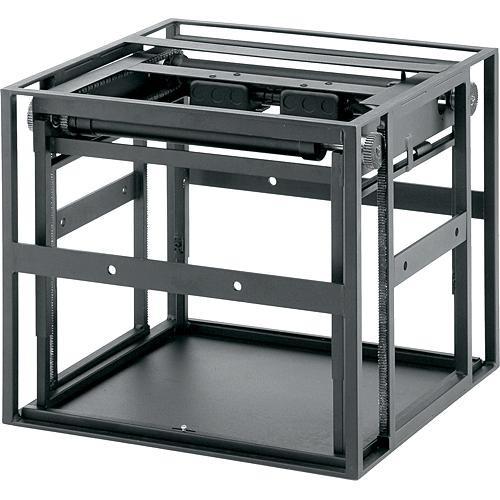

User Manual for Da-Lite DA-Lift 15M Motorized Projector Lift with Plenum Cover Click to enlarge the picture
Contents of the user manual for the Da-Lite DA-Lift 15M Motorized Projector Lift
- Product category: Projector Lifts Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Projector Lifts
|
User manual for the Da-Lite DA-Lift 15M Motorized Projector Lift contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite DA-Lift 15M Motorized Projector Lift is designed to raise or lower a video projector weighing up to 300 lb. The 3-position control switch (included) is all you need to operate it. The included Plenum cover covers the space taken by the lift's opening in the ceiling. The lift contains a removable tray that is attached to bottom of the frame assembly to allow for ceiling tile attachment. The motor is an oiled-for-life type with an auto thermal cutoff to prevent burnouts. In addition, the braking system is designed to prevent "coasting". The system also has a preset but adjustable limit switch to automatically stop lift in the "down" position. When you are finished using the projector, and the lift is fully retracted into its casing, a micro switch engages to cut power to the lift's motor. Note: This item is ONLY wired for 220V, European voltage. - Ceiling recessed installation
- Bottom of lift is adjustable for flush installation and can be finished to match ceiling
- Optional low voltage, radio frequency or infrared, remotes available
UPC: 717068155718 In the Box Da-Lite DA-Lift 15M Motorized Projector Lift with Plenum Cover (220V, 50Hz) 3-Position Control Switch 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite DA-Lift 15M Motorized Projector Lift with Plenum Cover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 7366E Specs | | | Lift Type | DA-Lift 15M | | Depth From Mounting Source | Flush with ceiling | | Mounting Source Opening (WxD) | Da-Lift 10M and 15M are designed to fit into a 2' x 2' ceiling | | Closure Panel Dimension (WxD) | Not Specified by Manufacturer | | Max Equipment Size | Not Specified by Manufacturer | | Travel Distance | Not Specified by Manufacturer | | Travel Speed | Not Specified by Manufacturer | | Adjustments | Not Applicable | | | | Control Option | Low voltage, radio frequency or infrared remotes | | Integrated Control | 3-position control switch; two electrical outlets furnished on the platform | | Low Voltage | Not Specified by Manufacturer | | | | Construction | All-metal | | Power Requirements | 220V,50Hz | | Maximum Current Draw | 1.5 amp | | Dimensions | Overall: 22.75 x 20 x 22" (58 x 51 x 56cm)
Inside: 18.5 x 15 - 22 x 17.5" (47 x 38-56 x 45cm) | | Weight Capacity | 40 lb (18.1kg) | | Weight | Unit Weight: 87 lb (39.6kg)
Shipping Weight: 115 lb (52.3kg) | | | | Package Weight | 137.0 lb | | Box Dimensions (LxWxH) | 31.0 x 28.0 x 28.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
