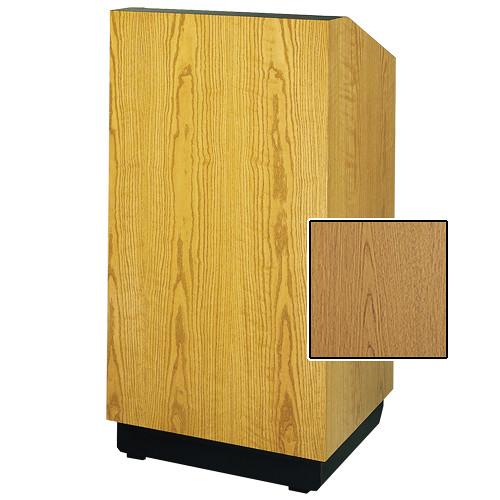

User Manual for Da-Lite Lexington 25" Floor Lectern with Sound System Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 25" Floor Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Lexington 25" Floor Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The standard light oak laminate Lexington 25" Floor Lectern from Da-Lite features an AmpliVox sound system that provides up to 120W of RMS power. The lectern displays a rectilinear design with flush panels and square corners. This free-standing floor lectern features an oversized reading surface that holds a 3-ring binder, heavy-duty industrial casters for easy mobility, and a spacious storage shelf. Additionally, the lectern incorporates a high-intensity reading light and an LED digital clock / timer with countdown capability. Note: - Power interruptions will cause the clock to flash until reset.
- Power supply and amplifier can be accessed internally.
- Controls can be accessed by removing the dash panel.
Lectern - Features a key-locked storage area below the reading surface
- Standard light oak laminate
AmpliVox Sound System - 6.5" Neodymium woofer with high-output tweeter offer up to 120W RMS power output
- Auxiliary microphone (XLR jack) input located under the reading surface for use with a second mic or wireless microphone input
- Balanced, phantom-powered auxiliary mic input with low impedance (600Ω) for use with condenser-type microphones
- Features volume control located on the dash panel and auxiliary line input (1/4" phone jack) used for playback of tape players, musical instruments, VCRs, or audio feeds from other sound systems
- A composite auxiliary signal line output (1/4" phone jack) can be fed directly to an audio or video tape recorder
- You can combine the sound system with an external one via the line output for a greater sound output, or the line output may be fed to the input of an assisted listening device for persons with special needs
- External speaker output offers 50W of power via a 1/4" phone jack that can be used to drive external speakers in lieu of the internal lectern speaker 1
Please Note: Inserting a plug into external speaker jacks will disconnect internal speaker. close - Output of amplifier is self-protecting against overload 2
Please Note: Low impedance (<2Ω) will cause excessive heating, reducing amplifier output. close In the Box Da-Lite Lexington 25" Floor Lectern with Sound System (Standard Light Oak Laminate) High-Intensity Reading Light Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 25" Floor Lectern with Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98104LOL Specs | | | Type | AmpliVox Sound System | | Rated Power Output | 100 W RMS, 8 Ω
120 W RMS, 4 Ω
External Speaker Output: 50 W | | Frequency Response | 40 Hz to 20 kHz, ±3 dB | | Speaker | Type:
6.5" (16.5 cm) Neodymium woofer with high-output tweeter
Maximum SPL: 114 dB at 3.2' (1.0 m) | | Mic Input | Lo-Z, balanced, phantom power, XLR cable to preamplifier | | Auxiliary Input | Mic: Lo-Z, balanced, phantom power, XLR jack on power amplifier housing | | Input Sensitivity | Microphone: -58 dB
Line Input: -20 dB | | Line Output | Post fader, 600 Ω buffered, unbalanced, 1/4" jack on power amplifier housing | | AC Power Requirements | 110 to 125 VAC, 50 to 60 Hz | | Power Consumption | Maximum: 120 W
Nominal: 40 W | | | | Type | Floor | | Power | 110 / 120 VAC, 3-wire outlet | | Reading Surface (WxD) | 22.5 x 15.5" (57.1 x 39.3 cm) | | Dimensions (H x W x D) | 48.0 x 25.0 x 22.0" (121.9 x 63.5 x 55.8 cm) | | Weight | 108.0 lb (48.9 kg) | | | | Package Weight | 132.0 lb | | Box Dimensions (LxWxH) | 57.0 x 31.0 x 28.0" |
