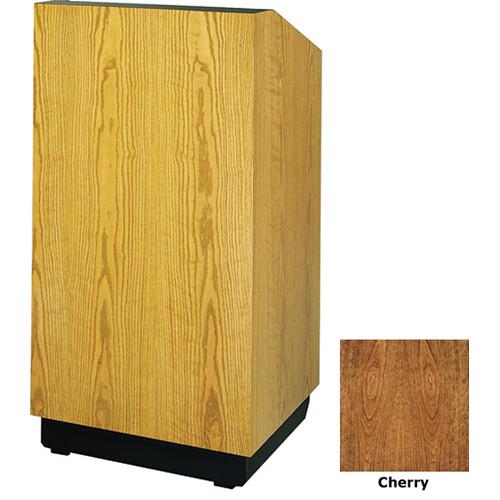

User Manual for Da-Lite Lexington 25" Stacking Lectern with Sound System Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 25" Stacking Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Lexington 25" Stacking Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The cherry laminate Lexington 25" Stacking Lectern with Sound System from Da-Lite offers you two options for your presentations. Use it as a full-size floor lectern or separate it giving you the top half for a table top lectern and the bottom half for a projection table. The top half has a high-intensity reading light, 70W speaker system, removable microphone with gooseneck mount, and LED clock/timer with countdown capability. There is also an aux line as well as lines for mic in/out. The reading surface is spacious enough for a 3-ring binder. A power cord supplies electricty to the top half while the lower portion has built-in 110-125V, 50/60 Hz receptacles. A major advantage of this design is that it saves you the expense of having to buy two pieces of A/V furniture. And, the two non-locking casters give you the option to move the lectern to the venue of your choice. The rectilinear design with flush panels, square corners and cherry laminate wood finish gives the Lexington its clean professional appearance. In the Box Da-Lite Lexington 25" Stacking Lectern with Sound System (Cherry Laminate) Microphone Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 25" Stacking Lectern with Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98108CHL Specs | Construction | Wood; rectilinear design with flush panels and square corners | | Finish | Cherry laminate | | Adjustments | Manually stackable; Use as full-size floor size lectern or separate to use bottom as projection table | | Shelf | None | | Casters | Two; non-lockable | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Speaker | One; 70W
6.5" (16.5 cm) woofer
High-output tweeter | | Microphone | Handheld with gooseneck mount | | Connectors | Two 110-125V, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power. XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Mic Output (post fader): Lo-Z, transformer balanced, XLR
Line Output (post fader): buffer isolated, 1/4" phone | | Power Requirements | 110-125VAC, 50/60Hz
Includes power cord suitable for a North American outlet | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Aux line
Bass/treble | | Reading Surface | 22.5 x 15.5" (57.2 x 39.4 cm) | | Sections | Top: 25.0 x 17.25 x 22.0" (63.5 x 43.8 x 55.9 cm)
Bottom: 25.0 x 26.75 x 22.0" (63.5 x 67.9 x 55.9 cm) | | Dimensions | 25.0 x 48.0 x 22.0" (63.5 x 121.9 x 55.9 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 165.0 lb | | Box Dimensions (LxWxH) | 57.0 x 28.0 x 28.0" |
