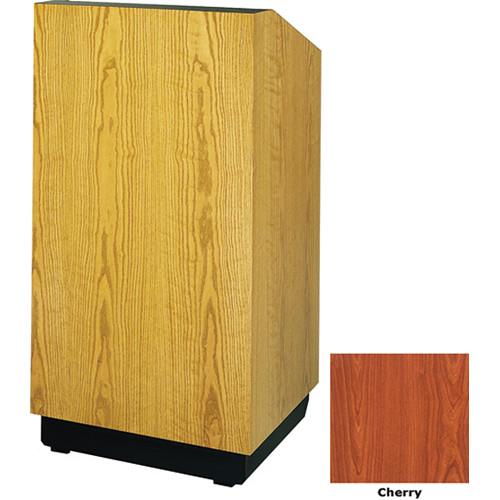

User Manual for Da-Lite Lexington 32" Floor Lectern with Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 32" Floor Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Lexington 32" Floor Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Lexington 32" Floor Lectern with Gooseneck Microphone from Da-Lite is a wooden unit that features a cherry veneer and built-in sound system. The large reading surface will hold a 3-ring binder, and a rear storage shelf provides space for collateral material. The built-in sound system features a dynamic gooseneck microphone that is powered by a 100 watt amplifier. A 120W speaker is on the front of the lectern. The dashboard features on/off controls for the built-in high-intensity reading light, speaker on/off, mic volume, bass/treble controls, two power outlets, and the LED digital clock with countdown timer. Two non-lockable casters allow you to move the Lexington to your chosen venue. In the Box Da-Lite Lexington 32" Floor Lectern with Gooseneck Microphone (Cherry Veneer) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 32" Floor Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98102CHV Specs | Construction | Wood; rectilinear design | | Finish | Cherry veneer | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 100 watts RMS at 8 Ω
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One; 120 W at 8 Ω
6.5" (16.5 cm) woofer
High-output tweeter | | Inputs/Outputs | Two 110-125 VAC, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble
Clock/timer settings | | Casters | Two; non-lockable | | Power Requirements | 110-125 VAC, 50/60 Hz
Includes 12' power cord suitable for a North American outlet | | Shelf | 9.5 x 29.5 x 19.0" (24.1 x 74.9 x 48.3 cm) | | Reading Surface | 29.5 x 15.5" (74.9 x 39.4 cm) | | Dimensions | 48.0 x 32.0 x 22.0" (121.9 x 81.3 x 55.9 cm) | | Weight | 133.0 lb (60.3 kg) | | | | Package Weight | 155.0 lb | | Box Dimensions (LxWxH) | 58.0 x 28.0 x 28.0" |
