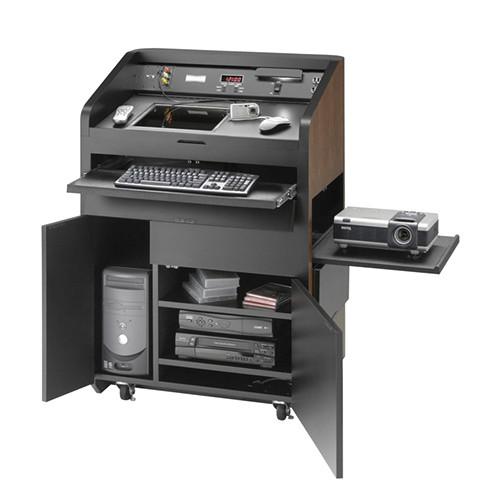

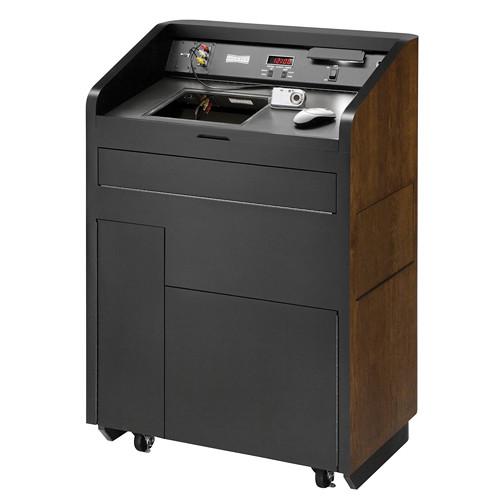

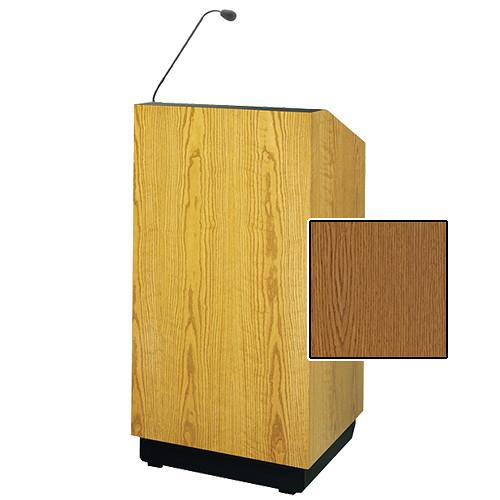

Product description The Lexington 32" Multi-Media Lectern with Gooseneck Microphone from Da-Lite is a wooden unit with a medium oak veneer finish, a 70W sound system, and built-in gooseneck microphone. There is a slanted cutout for a 15" monitor on the hinged reading surface. The reading surface is large enough to accommodate a 3-ring binder. Additionally, a fold down door conceals a pull out shelf for a keyboard, and a side slide out shelf for projection or other media equipment is also provided.The dashboard features a high-intensity reading lamp as well as controls for lamp on/off, speaker on/off, mic volume, and bass/treble, an LED clock/timer with a countdown feature, and two 110-125VAC, 50/60 Hz outlets. There is a six-outlet power strip located inside the lectern. A CPU bay and storage cabinet for collateral material or additional equipment are located at the base of the lectern. Two heavy-duty, non-lockable casters allow you to easily roll the lectern where it is needed. In the Box Da-Lite Lexington 32" Multi-Media Lectern with Gooseneck Microphone (Medium Oak Veneer) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 32" Multi-Media Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 91869MOV Specs | Construction | Wood; rectilinear design | | Finish | Medium oak veneer | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One, 70 W
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 V, 50/60 Hz outlets
Interior six-outlet power strip
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks | | Electrical Components | High-intensity reading light
Digital clock/timer | | Controls | Light on/off
Clock/timer switch
Speaker on/off
Speaker volume
Bass/treble | | Casters | Two; non-locking | | Power Requirements | 110-125 VAC, 50/60 Hz
Includes 12' power cord suitable for a North American outlet | | Cabinet | Yes; 20 x 16.5" (51 x 42 cm) | | Dimensions | Overall: 32.0 x 48.0 x 22.0" (81.3 x 121.9 x 55.9 cm)
CPU Bay: 9 x 23" (23 x 58 cm)
Keyboard Tray: 28.0 x 10.0" (71.1 x 25.4 cm)
Side Slide Out Shelf: 18 x 18" (46 x 46 cm) | | Weight | 158 lb (72 kg, approx) | | | | Package Weight | 257.0 lb | | Box Dimensions (LxWxH) | 57.0 x 38.0 x 28.0" |
