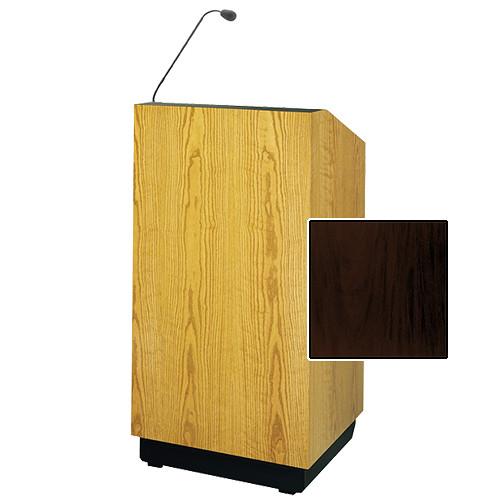

User Manual for Da-Lite Lexington 32" Multi-Media Lectern with Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 32" Multi-Media Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
 |
User manual for the Da-Lite Lexington 32" Multi-Media Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

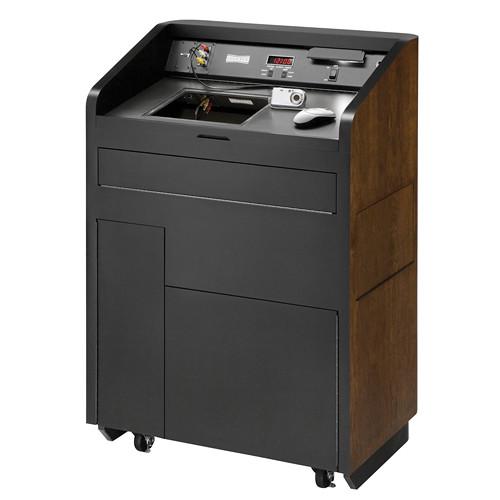

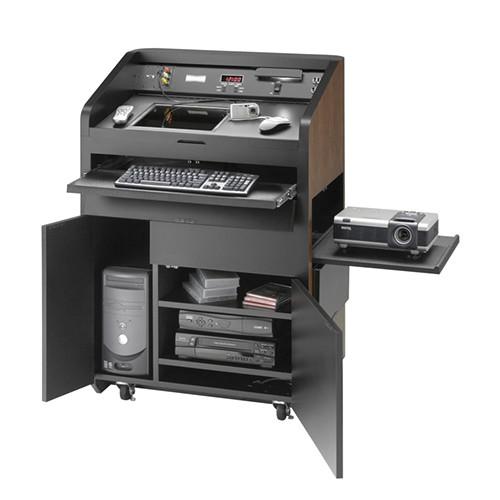

Product description The Lexington 32" Multi-Media Lectern with Gooseneck Microphone from Da-Lite is a wooden unit with mahogany laminate, and a computer-based presentation area that can also accommodate an array of media equipment. The hinged reading surface has a cutout for a 15" monitor. The front has a pull out keyboard shelf with fold-down door. A right side pull-out shelf is there for a small projector. The illuminated reading surface features a high-intensity lamp and is large enough to support a 3-ring binder. A 120VAC, 60Hz AmpliVox 100 watt amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 120 watt speaker includes a 6.5" woofer and high-output tweeter. The system features a dynamic gooseneck microphone with mount. On the base of the lectern, there are two storage areas; one taller cabinet can hold a CPU tower, and the other has two fixed shelves to store various items. The dashboard features an LED digital clock/timer with countdown function, and two power outlets. The interior of the lectern features a six-outlet power strip. Four, 4" swivel casters (two with brake) allow you to move the lectern to your desired location. The Lexington operates on 120VAC / 60Hz and includes a 12' power cord suitable for a North American outlet. In the Box Da-Lite Lexington 32" Multi-Media Lectern with Gooseneck Microphone (Mahogany Laminate) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 32" Multi-Media Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 91868ML Specs | Construction | Wood; rectilinear design | | Finish | Mahogany laminate | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 100 watts RMS at 8 Ω
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One, 120 W at 8 Ω
6.5" (16.5 cm) woofer
High-output tweeter | | Inputs/Outputs | Two 110-125 V, 50/60 Hz outlets (on dash panel)
Interior six-outlet power strip
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks | | Electrical Components | High-intensity reading light
Digital clock/timer | | Controls | Light on/off
Clock/timer settings
Speaker on/off
Speaker volume
Bass/treble | | Casters | Four; two locking | | Power Requirements | 110-125 VAC, 50/60 Hz
Includes 12' power cord suitable for a North American outlet | | Cabinet | One cabinet for a computer tower
One cabinet for storage | | Dimensions | Overall: 48.0 x 32.0 x 22.0" (121.9 x 81.3 x 55.9 cm)
Reading Surface: 29.5 x 15.5" (74.9 x 39.4 cm)
CPU Bay: 23 x 8.9 x 19.0" (58.4 x 22.6 x 48.3 cm)
Storage Area: 16.5 x 19.9 x 19.0" (41.9 x 50.5 x 48.3 cm)
Keyboard Tray: 28.0 x 10.0" (71.1 x 25.4 cm)
Side Slide-Out Shelf: 18.0 x 18.0" (45.7 x 45.7 cm) | | Weight | 158.0 lb (71.7 kg, approx) | | | | Package Weight | 257.0 lb | | Box Dimensions (LxWxH) | 57.0 x 38.0 x 28.0" |
