User Manual for Da-Lite Lexington 42" Multi-Media Lectern with Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 42" Multi-Media Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
 |
User manual for the Da-Lite Lexington 42" Multi-Media Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

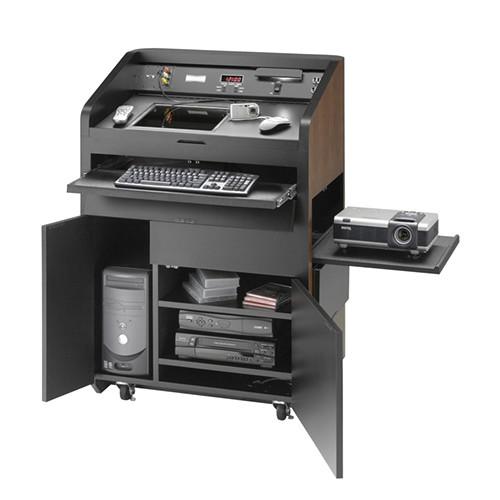

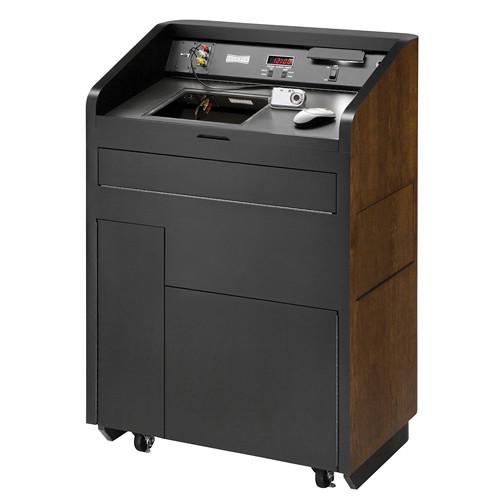

Product description The Da-Lite Lexington 42" Multi-Media Lectern with Gooseneck Microphone is a wooden unit with mahogany veneer, and a computer-based presentation area that can also accommodate an array of media equipment. The reading surface has a cutout for a 15" monitor. The front has a pull out keyboard shelf with fold-down door, and there is also a pull-out shelf for a mouse. A right side pull-out shelf is there for a small projector. The illuminated reading surface features a high-intensity lamp and is large enough to support a 3-ring binder.A 120VAC, 60Hz AmpliVox 70 watt amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 70 watt speaker includes a 6.5" woofer and high-output tweeter. The system features a dynamic gooseneck microphone with mount.On the base of the lectern, there are two doors with adjustable interior storage shelves. The dashboard features an LED digital clock/timer with countdown function, and two power outlets. The interior of the lectern features a six-outlet power strip. Two non-locking casters allow you to move the lectern to a desired position. The Lexington operates on 120VAC / 60Hz and includes a 12' power cord suitable for a North American outlet. In the Box Da-Lite Lexington 42" Multi-Media Lectern with Gooseneck Microphone (Mahogany Laminate) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 42" Multi-Media Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 83145ML Specs | Construction | Wood | | Finish | Mahogany laminate | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One; 70 W @ 4 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 VAC, 50/60 Hz outlets
Interior: six-outlet power strip
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble | | Casters | Two; non-lockable | | Power Requirements | 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet | | Power Consumption | 120 watts max; 40 watts nominal | | Cabinet | Two doors with interior storage shelves | | Shelves | Monitor Cutout: 15" (38 cm) diagonal
Slide Out: 21.0 x 19" (53.0 x 48.0 cm)
Keyboard: 22.0 x 10.0" (56.0 x 25.4 cm)
Mouse Pad: 8.9 x 9.4" (22.6 x 24.0 cm)
Three Rear Shelves: 20" (51 cm) each | | Reading Surface | 39.5 x 24.5" (100.0 x 62.2 cm) | | Dimensions | 48.0 x 30.0 x 42.0" (122 x 76 x 107 cm) | | Weight | 220.0 lb (100.0 kg, approx) | | | | Package Weight | 220.0 lb | | Box Dimensions (LxWxH) | 57.0 x 48.0 x 37.0" |
