User Manual for Da-Lite Lexington 42" Multimedia Floor Lectern with AmpliVox Sound System Click to enlarge the picture
Contents of the user manual for the Da-Lite Lexington 42" Multimedia Floor Lectern
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
 |
User manual for the Da-Lite Lexington 42" Multimedia Floor Lectern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

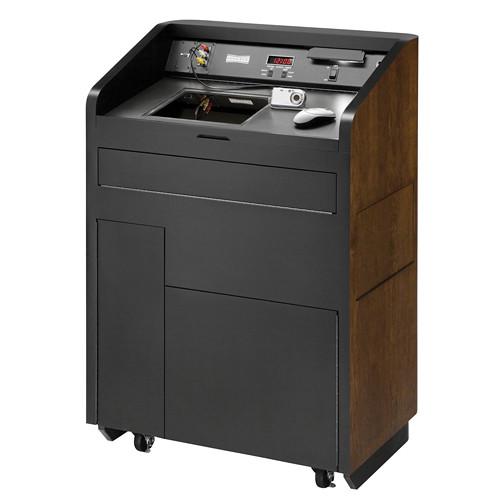

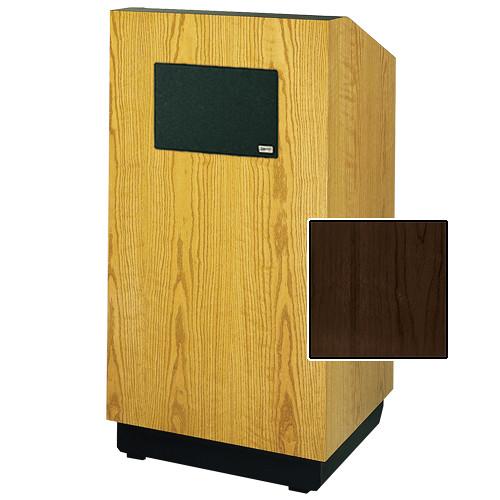

Product description The standard heritage walnut veneer Lexington 42” Multimedia Floor Lectern from Da-Lite comes with an AmpliVox sound system that provides up to 120W of RMS output. It sports a clean, rectilinear design with flush panels and square corners. This lectern features an oversized reading surface that holds a 3-ring binder, heavy-duty industrial casters for easy mobility, and shelves for monitor, keyboard, and other equipment. Additionally, it incorporates a high-intensity reading light and an LED digital clock / timer with countdown capability.

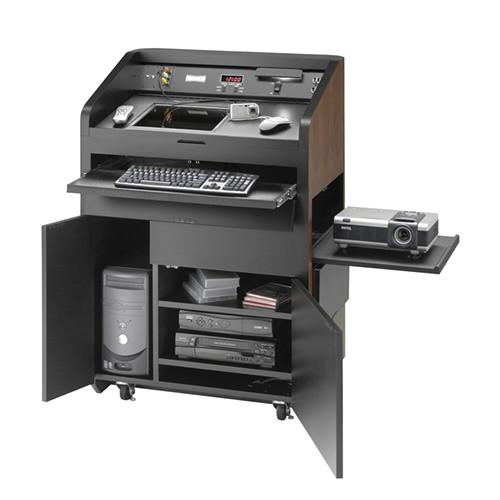

This multimedia lectern with a simple and stylish design provides a platform to accommodate a complete computer-based presentation. The lectern can be customized by adding a cooling fan, custom cut-outs, and equipment rack mount (all sold separately). Lectern - Monitor with a diagonal screen size of up to 15" can be accommodated in the monitor shelf
- Hinged reading surface allows access to monitor and routing cords
- Keyboard shelf has a fixed-height pullout with fold-down door to conceal the keyboard when not in use
- Adjustable equipment shelves (to store CPU or other equipment) below the reading surface, concealed behind hinged doors
- Projection equipment shelf for multimedia presenters and digital video projectors
- Pull-out projection equipment drawer on the side of the lectern with fold-down door 1
Please Note: It can be equipped with an optional lock. close - Two electrical outlets on the dash panel and a 6-outlet strip in the lower part of the lectern
- Standard real wood, hand-rubbed heritage walnut veneer for a deep and rich appearance
AmpliVox Sound System - Up to 120W RMS power output
- 6.5" Neodymium woofer with high-output tweeter
- Auxiliary microphone (XLR jack) input located under the reading surface for use with a second mic or wireless microphone input
- Balanced, phantom-powered auxiliary mic input with low impedance (600Ω) for use with condenser-type microphones
- Auxiliary line input (1/4" phone jack) used for playback of tape players, musical instruments, VCRs, or audio feeds from other sound systems
- Volume control located on the dash panel
- A composite auxiliary signal line output (1/4" phone jack) can be fed directly to an audio or video tape recorder
- You can combine the sound system with an external one via the line output for a greater sound output, or the line output may be fed to the input of an assisted listening device for persons with special needs
- External speaker output (1/4" phone jack) can be used to drive external speakers in lieu of the internal lectern speaker 2
Please Note: Inserting a plug into external speaker jacks will disconnect internal speaker. close - Output of amplifier is self-protecting against overload 3
Please Note: Low impedance (<2Ω) will cause excessive heating, reducing amplifier output. close In the Box Da-Lite Lexington 42" Multimedia Floor Lectern with AmpliVox Sound System (Standard Heritage Walnut Veneer) High-Intensity Reading Light Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 42" Multimedia Floor Lectern with AmpliVox Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 82953HWV Specs | | | Type | AmpliVox Sound System | | Rated Power Output | 100 W RMS, 8 Ω
120 W RMS, 4 Ω | | Frequency Response | 40 Hz to 20 kHz, ±3 dB | | Speaker | Type:
6.5" (16.5 cm) Neodymium woofer with high-output tweeter
Maximum SPL: 114 dB at 3.2' (1.0 m) | | Mic Input | Lo-Z, balanced, phantom power, XLR cable to preamplifier | | Auxiliary Input | Mic: Lo-Z, balanced, phantom power, XLR jack on power amplifier housing | | Input Sensitivity | Microphone: -58 dB
Line Input: -20 dB | | Line Output | Post fader, 600 Ω buffered, unbalanced, 1/4" jack on power amplifier housing | | AC Power Requirements | 110 to 125 VAC, 50 to 60 Hz
210 to 240 VAC, 50 to 60 Hz | | Power Consumption | Maximum: 120 W
Nominal: 40 W | | | | Type | Multimedia | | Power | 110 / 120 VAC, 3-wire outlet | | Reading Surface (WxD) | 40.5 x 29.0" (102.8 x 73.6 cm) | | Dimensions (H x W x D) | Lectern (H x W x D): 47.87 x 42.00 x 30.00" (121.58 x 106.68 x 76.20 cm)
Slide-Out Shelf (L x W): 19.0 x 21.0" (48.2 x 53.3 cm)
Keyboard Shelf (L x W): 10.0 x 22.0" (25.4 x 55.8 cm)
Mouse Pad Shelf (L x W): 9.44 x 8.87" (23.97 x 22.52 cm)
15" Standard Monitor Cutout (L x W): 12.59 x 10.23" (31.97 x 25.98 cm) | | | | Package Weight | 220.0 lb | | Box Dimensions (LxWxH) | 62.25 x 52.38 x 43.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
