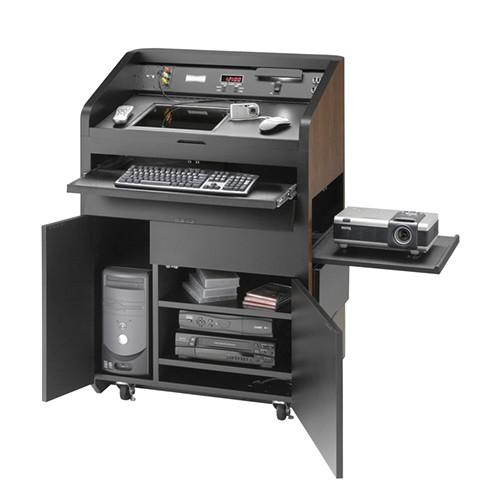

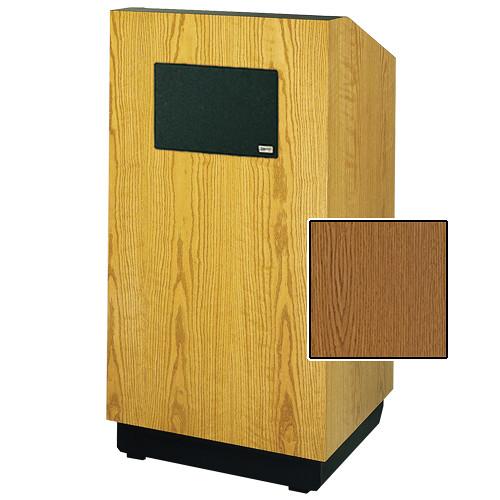

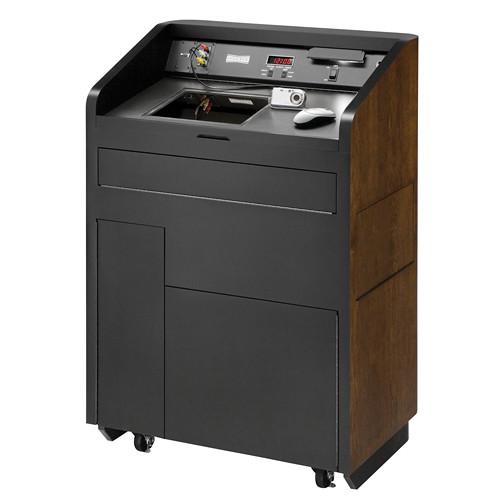

Product description The standard medium oak veneer Lexington 42” Multimedia Floor Lectern from Da-Lite comes with an AmpliVox sound system that provides up to 120W of RMS output. It sports a clean, rectilinear design with flush panels and square corners. This lectern features an oversized reading surface that holds a 3-ring binder, heavy-duty industrial casters for easy mobility, and shelves for monitor, keyboard, and other equipment. Additionally, it incorporates a high-intensity reading light and an LED digital clock / timer with countdown capability.
This multimedia lectern with a simple and stylish design provides a platform to accommodate a complete computer-based presentation. The lectern can be customized by adding a cooling fan, custom cut-outs, and equipment rack mount (all sold separately). Lectern - Monitor with a diagonal screen size of up to 15" can be accommodated in the monitor shelf
- Hinged reading surface allows access to monitor and routing cords
- Keyboard shelf has a fixed-height pullout with fold-down door to conceal the keyboard when not in use
- Adjustable equipment shelves (to store CPU or other equipment) below the reading surface, concealed behind hinged doors
- Projection equipment shelf for multimedia presenters and digital video projectors
- Pull-out projection equipment drawer on the side of the lectern with fold-down door 1
Please Note: It can be equipped with an optional lock. close - Two electrical outlets on the dash panel and a 6-outlet strip in the lower part of the lectern
- Standard real wood, hand-rubbed medium oak veneer for a deep and rich appearance
AmpliVox Sound System - Up to 120W RMS power output
- 6.5" Neodymium woofer with high-output tweeter
- Auxiliary microphone (XLR jack) input located under the reading surface for use with a second mic or wireless microphone input
- Balanced, phantom-powered auxiliary mic input with low impedance (600Ω) for use with condenser-type microphones
- Auxiliary line input (1/4" phone jack) used for playback of tape players, musical instruments, VCRs, or audio feeds from other sound systems
- Volume control located on the dash panel
- A composite auxiliary signal line output (1/4" phone jack) can be fed directly to an audio or video tape recorder
- You can combine the sound system with an external one via the line output for a greater sound output, or the line output may be fed to the input of an assisted listening device for persons with special needs
- External speaker output (1/4" phone jack) can be used to drive external speakers in lieu of the internal lectern speaker 2
Please Note: Inserting a plug into external speaker jacks will disconnect internal speaker. close - Output of amplifier is self-protecting against overload 3
Please Note: Low impedance (<2Ω) will cause excessive heating, reducing amplifier output. close In the Box Da-Lite Lexington 42" Multimedia Floor Lectern with AmpliVox Sound System (Standard Medium Oak Veneer) High-Intensity Reading Light Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington 42" Multimedia Floor Lectern with AmpliVox Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 82953MOV Specs | | | Type | AmpliVox Sound System | | Rated Power Output | 100 W RMS, 8 Ω
120 W RMS, 4 Ω | | Frequency Response | 40 Hz to 20 kHz, ±3 dB | | Speaker | Type:
6.5" (16.5 cm) Neodymium woofer with high-output tweeter
Maximum SPL: 114 dB at 3.2' (1.0 m) | | Mic Input | Lo-Z, balanced, phantom power, XLR cable to preamplifier | | Auxiliary Input | Mic: Lo-Z, balanced, phantom power, XLR jack on power amplifier housing | | Input Sensitivity | Microphone: -58 dB
Line Input: -20 dB | | Line Output | Post fader, 600 Ω buffered, unbalanced, 1/4" jack on power amplifier housing | | AC Power Requirements | 110 to 125 VAC, 50 to 60 Hz
210 to 240 VAC, 50 to 60 Hz | | Power Consumption | Maximum: 120 W
Nominal: 40 W | | | | Type | Multimedia | | Power | 110 / 120 VAC, 3-wire outlet | | Reading Surface (WxD) | 40.5 x 29.0" (102.8 x 73.6 cm) | | Dimensions (H x W x D) | Lectern (H x W x D): 47.87 x 42.00 x 30.00" (121.58 x 106.68 x 76.20 cm)
Slide-Out Shelf (L x W): 19.0 x 21.0" (48.2 x 53.3 cm)
Keyboard Shelf (L x W): 10.0 x 22.0" (25.4 x 55.8 cm)
Mouse Pad Shelf (L x W): 9.44 x 8.87" (23.97 x 22.52 cm)
15" Standard Monitor Cutout (L x W): 12.59 x 10.23" (31.97 x 25.98 cm) | | | | Package Weight | 220.0 lb | | Box Dimensions (LxWxH) | 62.25 x 52.38 x 43.0" |
