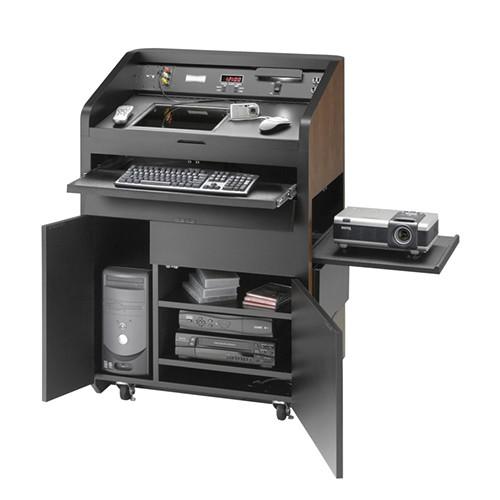

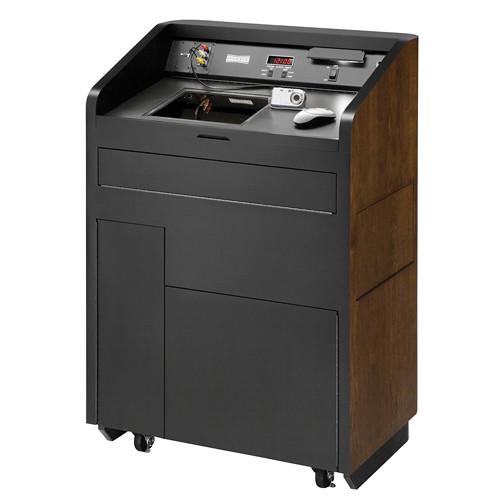

Product description The Da-Lite Lexington Multimedia Lectern with Microphone and Premium Sound System is a 48 x 32 x 22" floor lectern that comes with a microphone and premium sound system that provides 100W of RMS power. This lectern has a platform to do a complete computer-based presentation and can accommodate up to a 15" computer screen. It features a keyboard shelf that has a fixed-height pullout with a fold-down door, so the keyboard can be concealed when not in use. The adjustable equipment shelves can store a CPU or other equipment. This lectern is for 220V electrical systems only. The microphone has an electret-type, unidirectional element that offers miniature size and super sensitivity. It features a built-in pre amp, a slim and flexible gooseneck, and a male XLR connector to plug directly into the microphone input jack on the lectern. - Monitor shelf can accommodate up to a 15" diagonal monitor
- Keyboard shelf has a fixed-height pullout with a fold-down door, so the keyboard can be concealed when not in use
- Equipment shelves are adjustable to store a CPU or other equipment
- Hinged reading surface allows access to monitor and routing cords
- Two electrical outlets on the dash and six outlets on the inside of the lectern
- Projection equipment shelf is great for multimedia presenters and digital video projectors
In the Box Da-Lite Lexington Multimedia Lectern with Microphone and Premium Sound System (32", Cherry Veneer, 220V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington Multimedia Lectern with Microphone and Premium Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 91869ECHV Specs | Inputs/Outputs | Inputs: XLR jack, 1/4" phone jack
Outputs: 2 x 1/4" phone jacks | | Outlets | Dash: 2
Inside: 6 | | Sound System | Rated Power Output: 100 W RMS @ 8 ohm
Max SPL @ Rated Power: 107 dB @ 1 m
Frequency Response: 65 Hz - 15 kHz
Speaker Type: 6.5" (16.51 cm) woofer, high-output tweeter
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Sensitivity for Rated Output (Microphone): -52 dBV (2.5 mV rms)
Sensitivity for Rated Output (Line): -14 dB V (200 mV rms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" phone
Speaker Output: 120 W @ 8 ohm, switched, 1/4" phone
AC Power Requirements: 110-125 VAC, 50/60 Hz (40 VAC nominal, 120 VAC max
210-240 VAC, 50/60 Hz | | Microphone | Microphone Element Type: Electret condenser (requires phantom power)
Polar Pattern: Unidirectional, cardioid
Frequency Response: 50-18,000 Hz
Output Level @ 1000 Hz: -70 +/- 3 dB (0.32 mV) (0 dB = 1 V/microbar)
Front-to-Back Ratio: 20 dB
Output Impedance: 600 ohm (balanced)
Operating Voltage: 9-52 VDC phantom
Current Drain: 2.0 ma typical
Maximum SPL: 130 dB (1% THD, open circuit)
Signal-to-Noise Ratio: Greater than 40 dB @ 1 microbar
Connector: XLR male
Windscreen: Black urethane foam
Dimensions: 24 x 0.5" (61 x 13 cm)
Weight: 6.5 oz (0.18 kg) | | Power | 220 V | | Dimensions | Overall: 48 x 32 x 22" (121.92 x 81.28 x 55.88 cm)
Reading Surface: 29.5 x 15.5" (74.93 x 39.37 cm) |
