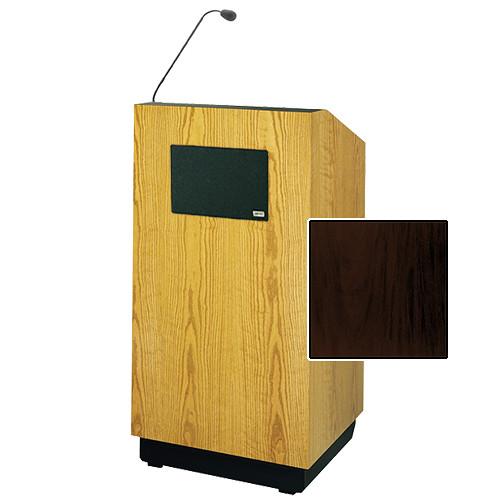

Product description The Da-Lite Lexington Special Needs Adjustable Floor Lectern with Microphone and Premium Sound System is a 42 x 30 x 38-46" floor lectern that comes with a microphone and premium sound system that provides 100W of RMS power. It has an LED digital clock/timer with countdown capability. All the controls have Braille identification, and it has an over-size reading surface that holds a three ring binder. Heavy duty industrial casters provide easy mobility. The height can be adjusted by using the electric height adjustment switch. This lectern is for 220V electrical systems only. The microphone has an electret-type, unidirectional element which offers miniature size and super sensitivity. It features a built-in pre amp, a slim and flexible gooseneck, and a male XLR connector to plug directly into the microphone input jack on the lectern. In the Box Da-Lite Lexington Special Needs Adjustable Floor Lectern with Microphone and Premium Sound System (42", Mahogany Laminate, 220V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Lexington Special Needs Adjustable Floor Lectern with Microphone and Premium Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 76420EML Specs | Inputs/Outputs | Inputs: XLR jack, 1/4" phone jack
Outputs: 2 x 1/4" phone jacks | | Sound System | Rated Power Output: 100 W RMS @ 8 ohm
Max SPL @ Rated Power: 107 dB @ 1 m
Frequency Response: 65 Hz-15 kHz
Speaker Type: 6.5" (16.51 cm) woofer, high-output tweeter
Lectern Mic Input: Lo-Z, balanced, phantom power. XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Sensitivity for Rated Output (Microphone): -52 dBV (2.5 mV rms)
Sensitivity for Rated Output (Line): -14 dB V (200 mV rms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" phone
Speaker Output: 120 W @ 8 ohm, switched, 1/4" phone
AC Power Requirements: 110-125 VAC, 50/60 Hz (40 VAC nominal, 120 VAC max
210-240 VAC, 50/60 Hz | | Microphone | Microphone Element Type: Electret condenser (requires phantom power)
Polar Pattern: Unidirectional, cardioid
Frequency Response: 50-18,000 Hz
Output Level @ 1000 Hz: -70 +/- 3 dB (0.32 mV) (0 dB = 1 V/microbar)
Front-to-Back Ratio: 20 dB
Output Impedance: 600 ohm (balanced)
Operating Voltage: 9-52 VDC phantom
Current Drain: 2.0 ma typical
Maximum SPL: 130 dB (1% THD, open circuit)
Signal-to-Noise Ratio: Greater than 40 dB @ 1 microbar
Connector: XLR male
Windscreen: Black urethane foam
Dimensions: 24 x 0.5" (61 x 13 cm)
Weight: 6.5 oz (0.18 kg) | | Power | 220 V | | Dimensions | 42 x 30 x 38-46" (107 x 76 x 97-117 cm) |
