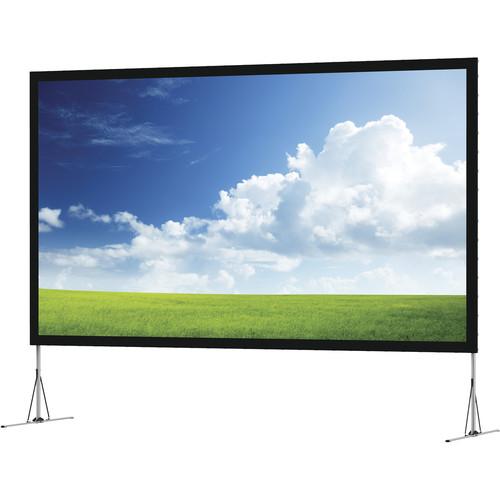

User Manual for Da-Lite NLCH120X192 Fast-Fold Large NXT 10 x 16' Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite NLCH120X192 Fast-Fold Large NXT 10
- Product category: Folding Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Folding Screens
 |
User manual for the Da-Lite NLCH120X192 Fast-Fold Large NXT 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

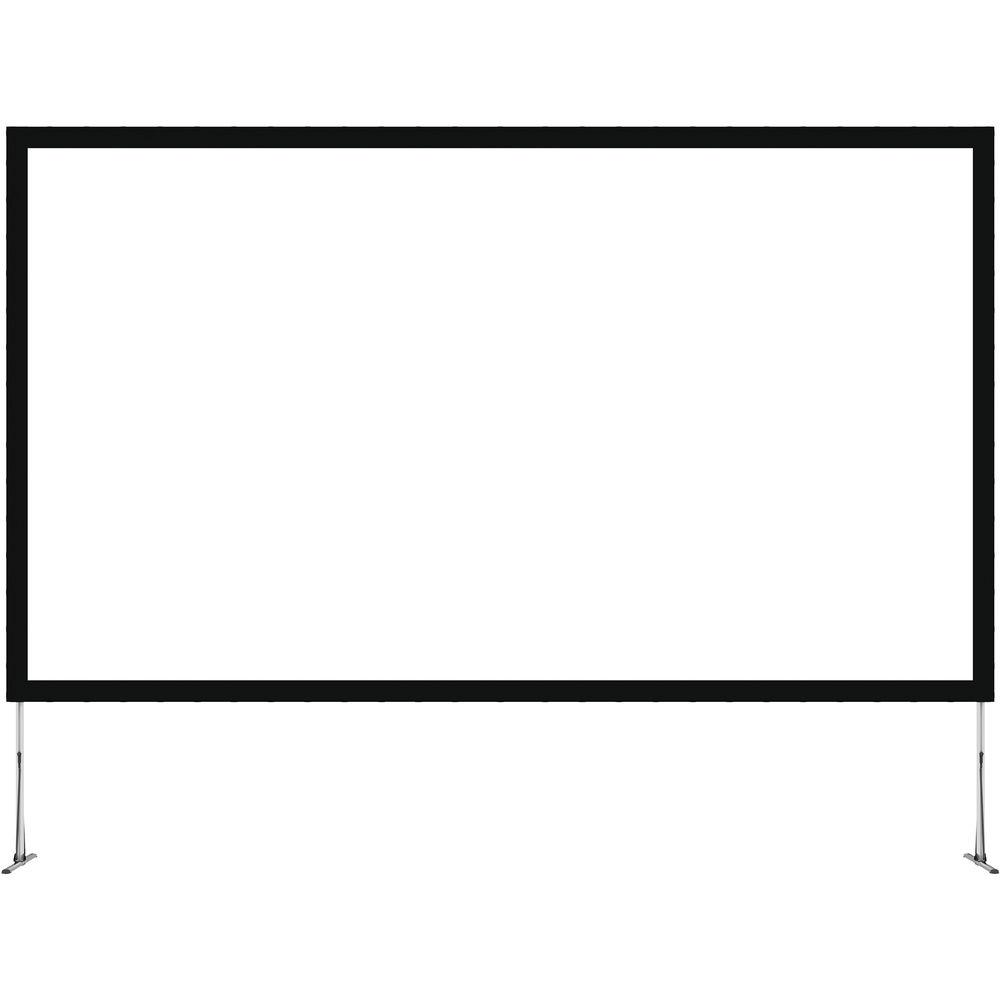

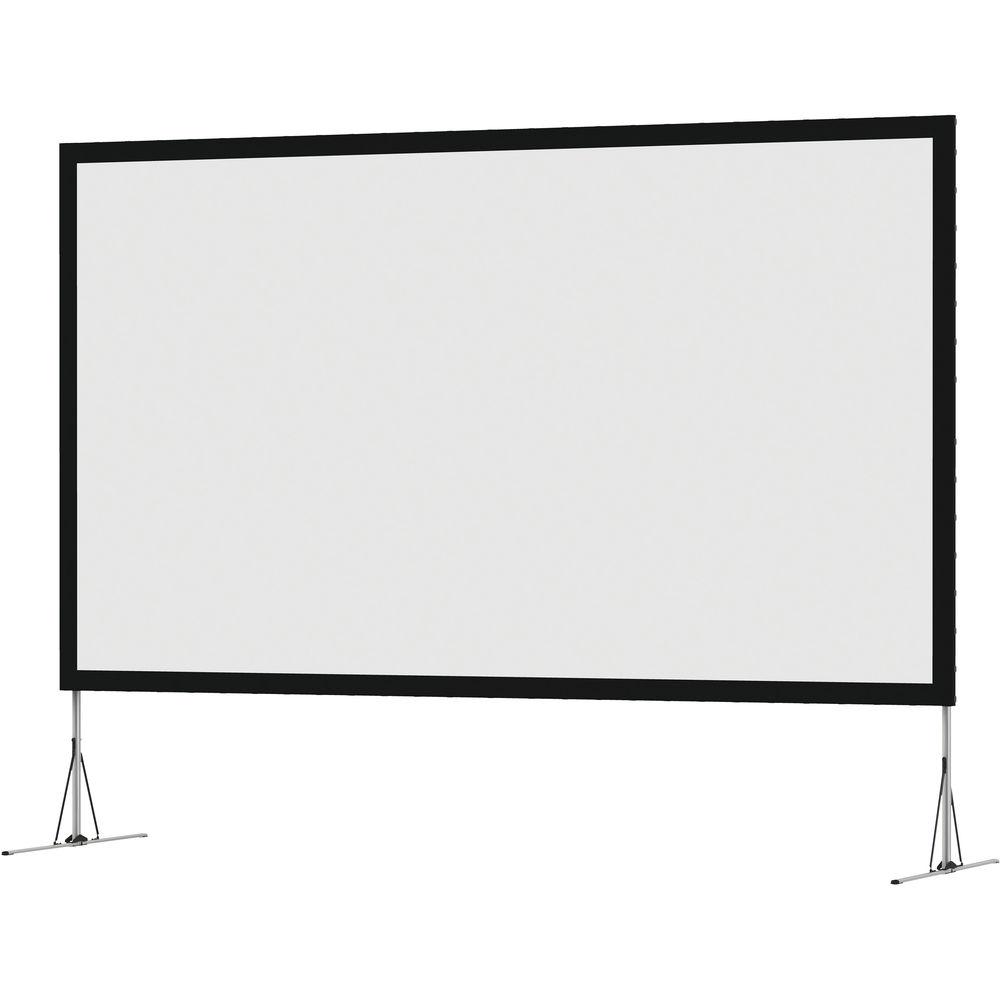

Product description The NLCH120X192 Fast-Fold Large NXT 10 x 16' Projection Screen from Da-Lite is a portable projection screen system that folds away neatly into its included wheeled transit case. The screen is an update over previous Fast-Fold models, featuring a new frame system that boasts reinforced extruded aluminum, a new snap-together assembly concept, and a clip-on screen surface. - 4.5" Black Border
- The screen features a 4.5" black border to enhance image contrast and compensate for slight overspill
- HD Rental Foldable Screen Surface
- A foldable HD Rental surface that is 4K-ready and features an updated wrap around binding. The binding is vinyl and easier to attach to the frame with clips, eliminating snaps and the difficulty of replacing them in the field when they fail. It features unity gain and a 160° viewing angle
- Extruded Aluminum Frame
-
- More aluminum means a slightly larger frame and more strength
- Ribs give additional strength where you need it and prevent bowing
- Shape improves aesthetic of frame and streamlines accessories by centralizing the location of all attachments
- Orient any screen in portrait or landscape format
- Hinged Frame
-
- Internal hinge improves durability and aesthetic
- Increased strength in design that uses epoxy instead of exposed rivets
- Push-button release for easy tear down
- Corner Piece
-
- Interchangeable for easy setup
- Push-button release for easy tear down
- Fixed corner design improves durability
- Welded insert for additional reinforced strength
- Surface alignment that is the same every time
- Adjustable Legs
-
- No speedy cranks. Easily adjust screen height while screen is assembled and upright with micro-sawtooth height adjustment
- Easily add height adjustment sections when additional height is needed
- Latch-attach to frame
- Lower profile, gliding feet for moving the screen
- Independently leveling feet for uneven floors
- Clip-On Surface
- The surface features a clip-on design for easier attachment and removal. Vinyl binding allows for easier attachment and flexibility
- Rolling Transport Case
-
- Ribbing for increased strength
- Updated internal organization to protect surface and components
- Four wheels
- Designed to be stored upright or stacked horizontally
- Labeling system for quick identification
- Fewer case sizes for simplification
Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite NLCH120X192 Fast-Fold Large NXT 10 x 16' Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite NLCH120X192 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | | | Viewing Area | 10.0 x 16.0' / 3.0 x 4.9 m | | Diagonal | 226.0" / 574.0 cm | | Overall HxW | 129.0 x 201.0" / 327.7 x 510.5 cm | | | | Gain | 1.0 | | Viewing Angle | 160 degrees |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
