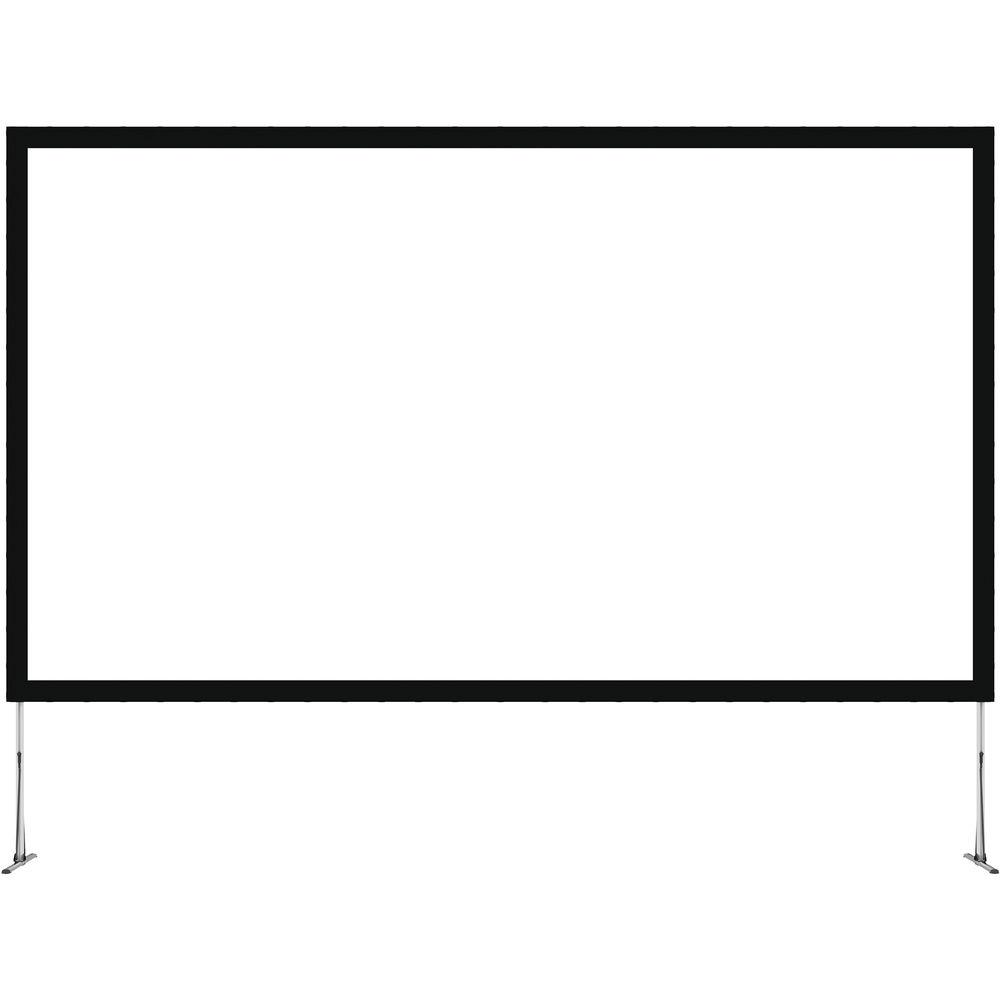

User Manual for Da-Lite NLCV198X318 Fast-Fold Large NXT 198 x 318" Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite NLCV198X318 Fast-Fold Large NXT 198
- Product category: Folding Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Folding Screens
 |
User manual for the Da-Lite NLCV198X318 Fast-Fold Large NXT 198 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

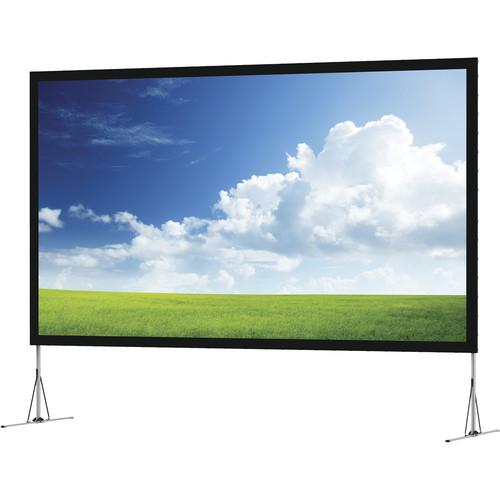

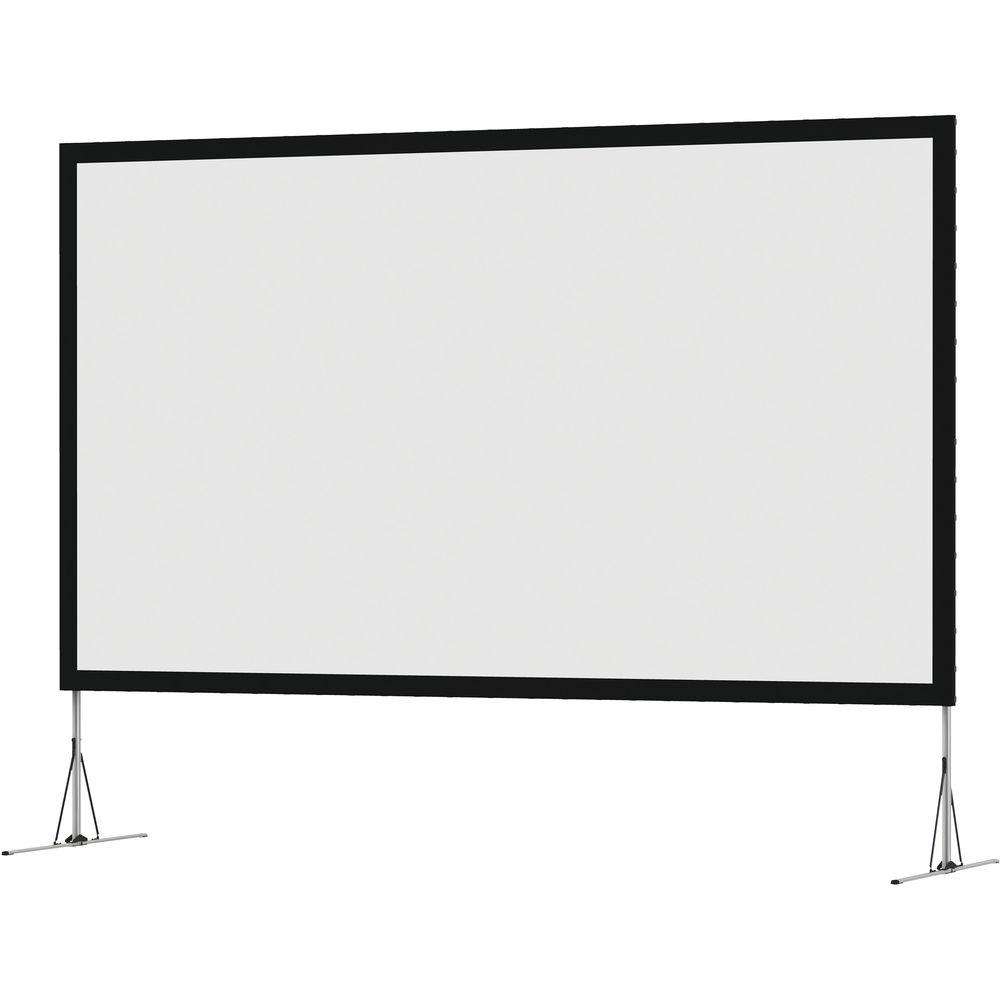

Product description The NLCV198X318 Fast-Fold Large NXT 198 x 318" Projection Screen from Da-Lite is a portable projection screen system that folds away neatly into its included wheeled transit case. The screen is an update over previous Fast-Fold models, featuring a new frame system that boasts reinforced extruded aluminum, a new snap-together assembly concept, and a clip-on screen surface. - 4.5" Black Border
- The screen features a 4.5" black border to enhance image contrast and compensate for slight overspill
- Dual Vision: Front/Rear Projection
- Dual Vision is a flexible vinyl surface ideal for rear projection, but capable of front projection as well. Dual Vision is ideal for video projection under controlled ambient light conditions. With a wide viewing cone and light gray tint, a sharp image with no color shift is observed regardless of location in the room. Cone: 130° Gain: 0.9
- Extruded Aluminum Frame
-
- More aluminum means a slightly larger frame and more strength
- Ribs give additional strength where you need it and prevent bowing
- Shape improves aesthetic of frame and streamlines accessories by centralizing the location of all attachments
- Orient any screen in portrait or landscape format
- Hinged Frame
-
- Internal hinge improves durability and aesthetic
- Increased strength in design that uses epoxy instead of exposed rivets
- Push-button release for easy tear down
- Corner Piece
-
- Interchangeable for easy setup
- Push-button release for easy tear down
- Fixed corner design improves durability
- Welded insert for additional reinforced strength
- Surface alignment that is the same every time
- Adjustable Legs
-
- No speedy cranks. Easily adjust screen height while screen is assembled and upright with micro-sawtooth height adjustment
- Easily add height adjustment sections when additional height is needed
- Latch-attach to frame
- Lower profile, gliding feet for moving the screen
- Independently leveling feet for uneven floors
- Clip-On Surface
- The surface features a clip-on design for easier attachment and removal. Vinyl binding allows for easier attachment and flexibility
- Rolling Transport Case
-
- Ribbing for increased strength
- Updated internal organization to protect surface and components
- Four wheels
- Designed to be stored upright or stacked horizontally
- Labeling system for quick identification
- Fewer case sizes for simplification
Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite NLCV198X318 Fast-Fold Large NXT 198 x 318" Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite NLCV198X318 Specs | | | Front/Rear Projection | Front and rear | | Aspect Ratio | 16:10 | | | | Viewing Area | 198.0 x 318.0" / 502.9 x 807.7 cm | | Diagonal | 375.0" / 952.5 cm | | Overall HxW | 207.0 x 327.0" / 525.8 x 830.6 cm | | | | Gain | 0.9 | | Viewing Angle | 130 degrees | | Black Backing | No |
