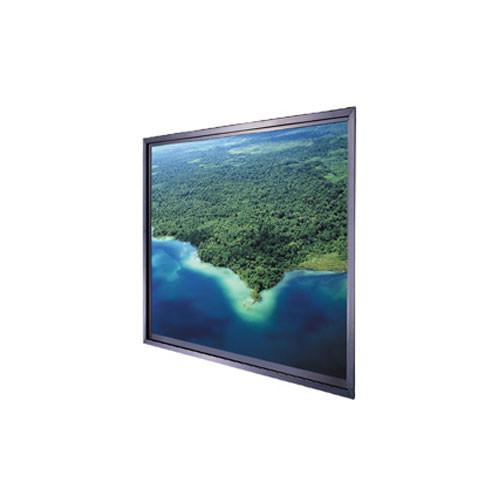

User Manual for Da-Lite Polacoat Rear Screen Projection Screen, Da-Plex Substrate, Self-Trimming Frame-90 x 120" Click to enlarge the picture
Contents of the user manual for the Da-Lite Polacoat Rear Screen Projection Screen,
- Product category: Rear Projection Components Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Rear Projection Components
|
User manual for the Da-Lite Polacoat Rear Screen Projection Screen, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description This is a Da-lite 90 x 120" Polacoat Rear Screen Projection Screen, Da-Plex. This is a rear projection plexiglass screen that installs like a commercial window that has a 90 x 120" (HW) viewing area and a self-trimming frame. The screen substrate is clear acrylic plastic. The substrate has an optical coating on one surface not exceeding .004" in thickness. The overall size of the acrylic panels shall be as detailed with tolerances of ±.125" for 1/4" or ±.250" for 3/8" or ±.375" for 1/2". - Acrylic base for breakage resistance, lightweight, high optical quality, ease of handling, and superior transmission
- Four factory framing options are offered: Standard frame, Deluxe frame, Base frame, and Self-trimming frame.
- Diffusion coatings are available for all types of applications with any size screen and a wide range of viewing angles.
- Diffusion coating is permanently bonded to the substrate. It cannot peel off like laminated film or vinyl-based diffusion screens.
- Two substrates offered: Da-Plex (acrylic substrate) available in standard sizes up to 9 x 18' (HW) and Da-Glas (glass substrate) available standard in sizes up to 10 x 20' (HW).
- Da-Plex rear projection screens are mounted with the coated surface toward the audience.
In the Box Da-Lite Polacoat Rear Screen Projection Screen, Da-Plex Substrate, Self-Trimming Frame-90 x 120" Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Polacoat Rear Screen Projection Screen, Da-Plex Substrate, Self-Trimming Frame-90 x 120" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 27586 Specs | | | Style | Polacoat | | Front/Rear Projection | Rear | | Mount | Wall | | Finish | Da-Plex | | Tension Control | Permanently tensioned | | Keystone Control | None | | | | Overall Size | 90 x 120" (2.3 x 3m) (HW) | | Image Size | 90 x 120" (2.3 x 3m) (HW | | Diagonal | 150" (3.8m) | | Format | Video | | Aspect Ratio | 4:3 | | Masking Options | None | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Gray | | Material | Acrylic plastic | | Length | 130" (3302mm) | | | | Shipping Weight | 652 lbs (295.7kg) | | | | Package Weight | 652.0 lb | | Box Dimensions (LxWxH) | 130.0 x 100.0 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
