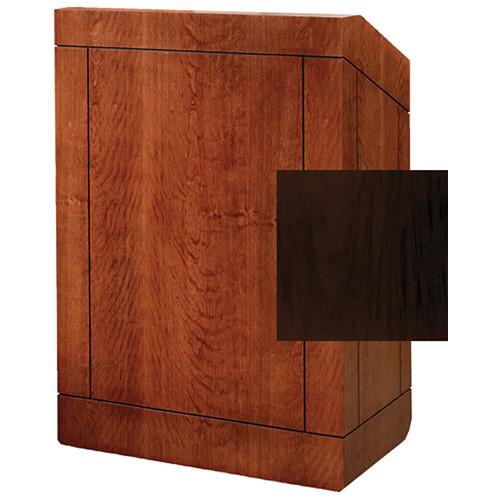

Product description The Da-Lite Providence 25" Stacking Lectern with Gooseneck Microphone is a two-piece wooden unit with a mahogany laminate finish that can serve a double function. It can be used as a full size lectern or convert to a tabletop lectern, with the bottom serving as a projection stand.A 120VAC, 60Hz AmpliVox 70 watt amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 70 watt speaker includes a 6.5" woofer and high-output tweeter. The system features a dynamic gooseneck microphone with mount.The dashboard features a high-intensity reading light and LED clock/timer with countdown function. Additionally, the dashboard has controls for the speaker and light. Two non-lockable casters provide mobility. In the Box Da-Lite Providence 25" Stacking Lectern with Gooseneck Microphone (Mahogany Laminate) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Providence 25" Stacking Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 98160ML Specs | Construction | Wood
Rectilinear design | | Finish | Mahogany laminate | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One; 70 W @ 4 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 VAC, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble | | Casters | Two; non-lockable | | Power Requirements | 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet | | Power Consumption | 120 watts max; 40 watts nominal | | Reading Surface | 22.5 x 15.5" (57.2 x 39.4 cm) | | Shelf | 5.5 x 22.0 x 19.0" (24 x 56 x 48 cm) | | Dimensions | Overall: 22.0 x 48.0 x 25.0" (56 x 122 x 64 cm)
Top: 17.25 x 25.0 x 22.0" (44 x 64 x 56 cm)
Base: 30.75 x 25.0 x 22.0" (78 x 64 x 56 cm) | | Weight | 148 lb (67 kg, approx) | | | | Package Weight | 165.0 lb | | Box Dimensions (LxWxH) | 57.0 x 32.0 x 28.0" |
