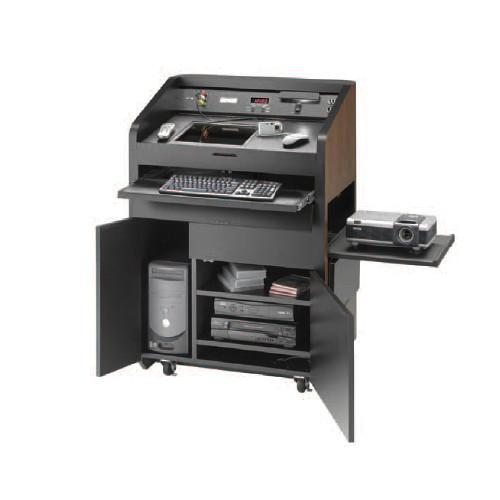

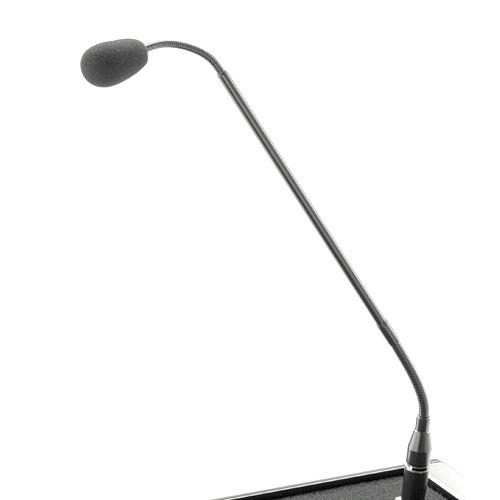

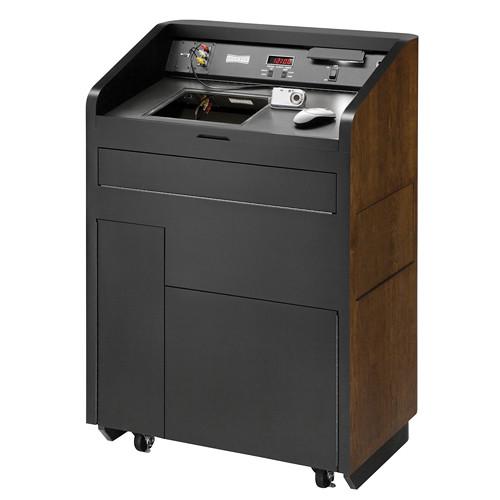

Product description The Da-Lite Providence 32" Multi-Media Floor Lectern with Gooseneck Microphone is a wooden unit with heritage walnut veneer, and a computer-based presentation area that can also accommodate an array of media equipment. The slanted reading surface has a cutout for a 15" monitor. The front has a pull-out keyboard shelf with fold-down door. There is a right side pull-out shelf for a small projector. The illuminated reading surface features a high-intensity lamp and is large enough to support a 3-ring binder.A 120VAC, 60Hz AmpliVox 70 watt amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 70 watt speaker includes a 6.5" woofer and high-output tweeter. The system features a dynamic gooseneck microphone with mount.On the base of the lectern, there is a left side CPU bay plus a second cabinet featuring three storage shelves-both cabinets hidden behind non-lockable hinged doors. The dashboard features an LED digital clock/timer with countdown function, and two power outlets. The interior of the lectern features a six-outlet power strip. Two non-locking casters allow you to move the lectern to a desired position. The Providence operates on 120VAC / 60Hz and includes a 12' power cord suitable for a North American outlet. In the Box Da-Lite Providence 32" Multi-Media Floor Lectern with Gooseneck Microphone (Heritage Walnut Veneer) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Providence 32" Multi-Media Floor Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 94988HWV Specs | Construction | Wood | | Finish | Heritage walnut veneer | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 100 watts RMS @ 8 ohms
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One; 120 W @ 8 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two dashboard 110-125 VAC, 50/60 Hz outlets
Interior: Six-outlet power strip
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble
Clock/timer settings | | Casters | Two; non-lockable | | Power Requirements | 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet | | Power Consumption | Not specified | | Cabinet | Left Side CPU Bay: 9.0 x 23.0" (23.0 x 58.0 cm)
Storage Cabinet: 16.5 x 20.0" (42.0 x 51.0 cm) | | Shelves | Monitor Cutout: 15" (38 cm)
Slide Out: 18 x 18" (46.0 x 46.0 cm)
Keyboard: 28.0 x 10.0" (71.0 x 25.4 cm)
Three inside storage cabinet | | Reading Surface | 29.5 x 15.5" (75 x 39 cm) | | Dimensions | 48.0 x 22.0 x 32" (122 x 66 x 81 cm) | | Weight | 158.0 lb (71.7 kg, approx) | | | | Package Weight | 257.0 lb | | Box Dimensions (LxWxH) | 57.0 x 39.0 x 28.0" |
