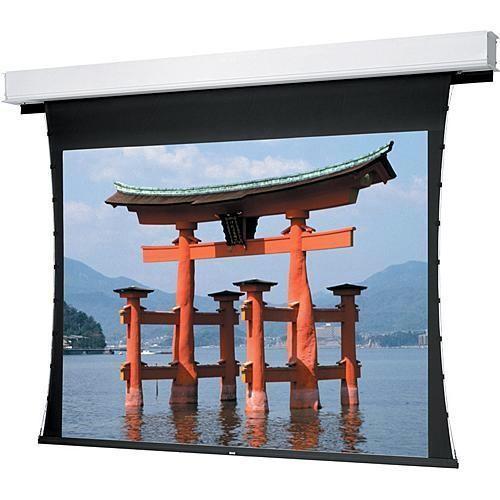

Product description This Tensioned Advantage Deluxe Electrol 16:10 Wide Format Motorized Projection Screen from Da-Lite has a 100.0 x 160.0" viewing area with a Dual Vision flame retardant and mildew-resistant finish. The benefit of Dual Vision is its ability to be used for front or rear projection. With its 0.9 Gain rating and 65° (L/R) viewing angle, it works best where ambient light is controllable. The light gray tint delivers an especially wide viewing angle with edge-to-edge sharpness and no color shift. If the finish becomes soiled, it can be cleaned with mild soap and water. Tensioning on each side of the fabric assures a flat, undistorted surface that eliminates any chance of a skewed image. One of the major advantages of this screen is that the fabric roller can either be factory installed or at your chosen location after the ceiling recessed, UL Plenum rated extruded aluminum white housing has been roughed in. The enables you to finish the initial installation but choose your screen finish at a later date. The screen includes two motors; one for the ceiling door and one for the fabric. The interior roller features a quick reversal motor, oiled for life, with automatic thermal overload cutout, integral gears, capacitor, and an electric brake to prevent coasting when the screen is stopped at a chosen length. The built-in Low Voltage Control controls up/down and stop functions using the included 12VDC three-position switch that can be wall mounted where convenient. It can also be operated from an optional radio frequency, infrared or auxiliary transmitter. In the Box Da-Lite Tensioned Advantage Deluxe Electrol 16:10 Wide Format Motorized Projection Screen (100.0 x 160.0", Dual Vision) Three-Position Control Switch Decora Wall Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Tensioned Advantage Deluxe Electrol 16:10 Wide Format Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 70094 Specs | Style | Tensioned Advantage Deluxe Electrol | | Design | Motorized / Front or Rear projection | | Mount | Ceiling recessed | | Finish | Dual Vision; vinyl, flame retardant and mildew-resistant | | Tension Control | Tensioned | | Keystone Control | No | | | | Image Size | 100.0 x 160.0" (254.0 x 406.4 cm) | | Diagonal | 189" (480.1 cm) | | Format / Aspect Ratio | Wide / 16:10 | | Gain / Viewing Angle | 0.9 / 65° (L/R) | | Masking Options | None | | | | Voltage | 120VAC / 60 Hz
Not more than 2.4 amp | | Integrated Control | Pre-set, adjustable limit switches to automatically stop screen in the up and down positions
Integrated low voltage control unit
Three-position control switch | | Control Options | Wireless Remote Control for LVC
Radio Frequency Remote
Radio Frequency Range Extender
Infrared Remote
Video Projector Interface Control - built-in
SCB-100 RS-232 Serial Control Board - built-in
NET-100 Ethernet-Serial Adapter
SCB-100 RS-232 Serial Control Board - external
NET-100 Ethernet-Serial Adapter | | | | Color | White | | Material | Extruded aluminum | | Length | 185.25" (471.0 cm) | | Shipping Weight | Approx. 203.0 lb (92.1 kg) | | | | Package Weight | 203.0 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 0.0" |
