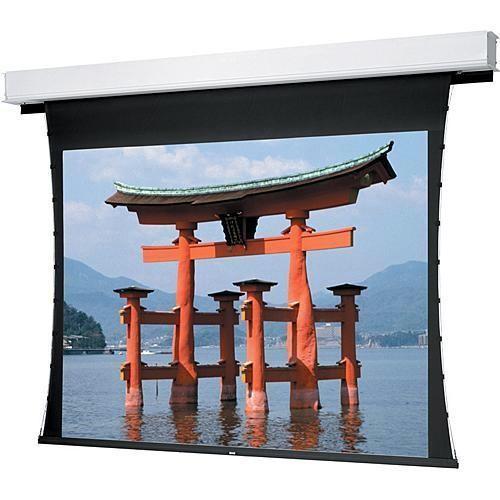

User Manual for Da-Lite Tensioned Advantage Deluxe Electrol HDTV Format Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite Tensioned Advantage Deluxe Electrol HDTV
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite Tensioned Advantage Deluxe Electrol HDTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 58.0 x 104.0" Tensioned Advantage Deluxe Electrol HDTV Format Motorized Projection Screen from Da-Lite is a ceiling recessed screen with an HD Progressive 1.1 Perf finish, 1.1 Gain rating, 85° viewing angle (L/R) and Greenguard certification for use indoors. The fire retardant, mildew-resistant finish delivers true color and uniform edge-to-edge image diffusion. The white finish has black backing material for opacity and is optimized for high resolution projectors. Tensioning on each side of the seamless fabric assures a flat, undistorted surface that eliminates any chance of a skewed image.One of the major advantages of this screen is that the fabric roller can either be factory installed or at your chosen location after the ceiling recessed, UL Plenum rated extruded aluminum white housing has been roughed in. The enables you to finish the initial installation but choose your screen finish at a later date.The screen includes two motors; one for the ceiling door and one for the fabric. The interior roller features a quick reversal motor, oiled for life, with automatic thermal overload cutout, integral gears, capacitor, and an electric brake to prevent coasting when the screen is stopped at a chosen length. The built-in Low Voltage Control controls up/down and stop functions using the included 12VDC three-position switch that can be wall mounted where convenient. It can also be operated from an optional radio frequency, infrared or auxiliary transmitter. In the Box Da-Lite Tensioned Advantage Deluxe Electrol HDTV Format Motorized Projection Screen (58.0 x 104.0", HD Progressive 1.1) Three-Position Control Switch Decora Wall Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Tensioned Advantage Deluxe Electrol HDTV Format Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 20328 Specs | Style | Tensioned Advantage Deluxe Electrol | | Design | Motorized / Front projection | | Mount | Ceiling recessed | | Finish | HD Progressive 1.1; flame retardant and mildew-resistant | | Tension Control | Tensioned | | Keystone Control | No | | | | Image Size | 58.0 x 104.0" (147.3 x 264.2 cm) | | Diagonal | 119" (302.3 cm) | | Format / Aspect Ratio | HDTV / 16:9 | | Gain / Viewing Angle | 1.1 / 85° (L/R) | | Masking Options | None | | | | Voltage | 120VAC / 60 Hz
Not more than 2.4 amp | | Integrated Control | Pre-set, adjustable limit switches to automatically stop screen in the up and down positions
Integrated low voltage control unit
Three-position control switch | | Control Options | Wireless Remote Control for LVC
Radio Frequency Remote
Radio Frequency Range Extender
Infrared Remote
Video Projector Interface Control - built-in
SCB-100 RS-232 Serial Control Board - built-in
NET-100 Ethernet-Serial Adapter
SCB-100 RS-232 Serial Control Board - external
NET-100 Ethernet-Serial Adapter | | | | Color | White | | Material | Extruded aluminum | | Length | 128.25" (326.0 cm) | | Shipping Weight | Approx. 150.0 lb (68.0 kg) | | | | Package Weight | 166.0 lb | | Box Dimensions (LxWxH) | 138.0 x 13.0 x 10.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
