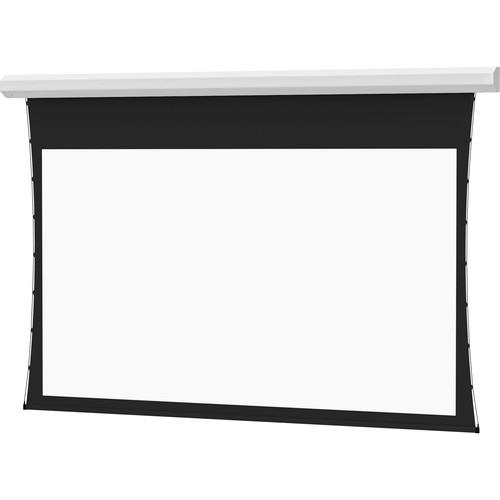

User Manual for Da-Lite Tensioned Large Cosmopolitan Electrol 16:10 Wide Format Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite Tensioned Large Cosmopolitan Electrol 16:10
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite Tensioned Large Cosmopolitan Electrol 16:10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description This Tensioned Large Cosmopolitan Electrol 16:10 Wide Format Motorized Projection Screen from Da-Lite has a 110 x 176" viewing area with a Da-Tex finish. Da-Tex is a rear screen, translucent neutral gray finish with a 1.3 Gain rating and 30° (L/R) viewing angle. It is characterized by high transmission and low reflectance values. Color rendition is true and contrast is good. This finish is especially suitable for lace and grommet screens. The screen features a 12" drop from the top that enables you to adjust the height of the screen to accommodate the viewing comfort of your audience. If the finish becomes soiled, it can be cleaned with mild soap and water.The screen's tensioned, seamless finish assures a flat, undistorted surface that eliminates any chance of a skewed image. This finish comes with standard black masking borders. The extruded aluminum case is made from two pieces in order to accommodate larger screen finishes.This UL listed screen includes a quick-reversal type motor that is oiled for life and features automatic overload cutoff. It also has an electric brake that prevents the screen from coasting, i.e. drifting when it is stopped. The motor has built-in, adjustable limits to stop the screen in your chosen up/down positions. Completing the screen is a three-position wall switch and Decora wall plate. A number of additional control options are available including radio frequency and infrared remotes. In the Box Da-Lite Tensioned Large Cosmopolitan Electrol 16:10 Wide Format Motorized Projection Screen (110.0 x 176", Da-Tex) Three-Position Wall Switch Decora Wall Plate Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Tensioned Large Cosmopolitan Electrol 16:10 Wide Format Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 70270 Specs | Style | Tensioned Large Cosmopolitan Electrol | | Front/Rear Projection | Rear | | Mount | Wall or ceiling / Motorized | | Finish | Da-Tex; flame retardant and mildew-resistant | | Tension Control | Tensioned | | Keystone Control | No | | | | Image Size | 110.0 x 176.0" (279.4 x 447.0 cm) | | Diagonal | 208.0" (5.3 m) | | Format / Aspect Ratio | Wide / 16:10 | | Gain / Viewing Angle | 1.3 / 30° (L/R) | | Masking Options | None | | | | Voltage | 120 VAC / 60 Hz
Not more than 2.4 A | | Integrated Control | Three-position wall switch | | Control Options | Single Motor Low Voltage Control (LVC) - external
Single Motor Low Voltage Control (LVC) - built-in
Wireless Remote Control for LVC
Radio Frequency Remote
Radio Frequency Range Extender available
Infrared Remote
Silent Motor
Silent Motor with Integrated LVC
Key Locking Cover Plate for 120V or LVC Switch
Key Operated Switch for 120V only (NOTE: Cannot be used with LVC)
220 Volt (50 Hz) Motor
Video Projector Interface | | | | Color | Black | | Material | Extruded aluminum | | Length | 199.75" (5.1 m) | | Shipping Weight | Approx. 225.0 lb (102.1 kg) | | | | Package Weight | 260.0 lb | | Box Dimensions (LxWxH) | 206.25 x 15.0 x 12.0" |
