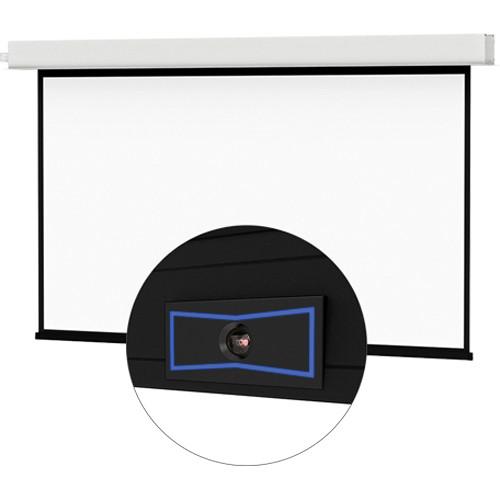

User Manual for Da-Lite ViewShare Advantage 113" Video Spectra 1.5 Electrol Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite ViewShare Advantage 113" Video Spectra
- Product category: Video Conference Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Video Conference Screens
|
User manual for the Da-Lite ViewShare Advantage 113" Video Spectra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Da-Lite ViewShare Advantage 113" Video Spectra 1.5 Electrol Screen offers the same features as the Advantage Electrol with the added benefits of ViewShare Technology, which incorporates an integrated Logitech C930e HD video camera for video conferencing. Built on the Advantage Electrol Projection Screen technology, construction of this ceiling-recessed screen permits the case to be installed first and the fabric added later once a suitable projection surface is decided on. This is a big plus since companies constructing viewing rooms may not be certain of what they need in a screen. Quiet operation makes the Advantage more professional in appearance as well as less distracting to your audience. With easy plug and play USB connectivity, and the fact that it is compatible with any free peer-to-peer (P2P) video conferencing software, the ViewShare Advantage Electrol Screen is suitable for many venues. - Integrated Logitech C930e HD video camera
Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
H.264/SVC video compression
Supports H.264 SVC 1080p for Microsoft Lync 2013, along with optimizations for best call performance in single or multi-party HD video
90° field of view
Zoom to 4x in 1080p
Rightlight 2 Technology for clear image in various lighting environments, even low light
Optional light application for control of pan, tilt and zoom
Carl Zeiss lens certification
Auto focus
External privacy shutter
Automatic low-light correction
Hi-Speed USB 2.0 certified (USB 3.0 ready) - This screen surface is specially designed with a reflective coating, which provides an increased amount of brightness with a moderately reduced viewing angle. The increased gain of this surface makes it suitable for environments where ambient lighting is uncontrollable and a projector with moderate light output is utilized. Flame retardant and mildew resistant. Viewing Angle: 35° Gain: 1.5
- Easy plug-and-play USB connectivity
- Compatibility with any free peer-to-peer video conferencing software
- The screen features a standard silent drive system, which keeps your screen whisper quiet
- Integrated low voltage control to keep your screen operation flexible
- White aluminum case provides a clean look and allows easy installation of ceiling tiles
- Screen fabric is flame retardant and mildew resistant fiberglass with black masking borders
- Provided USB to CAT5 powered extender allows the use of up to 200' (61 m) of CAT5 cable
UPC: 717068066311 In the Box Da-Lite ViewShare Advantage 113" Video Spectra 1.5 Electrol Screen Speaker/Microphone Unit CAT5 to USB Power Supply 6' (1.8 m) USB Cable Local CAT5 to USB Extender Powered USB Hub Limited 3-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite ViewShare Advantage 113" Video Spectra 1.5 Electrol Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24109LS Specs | Style | ViewShare Advantage Electrol | | Size | Diagonal: 113" (287 cm) | | Surface | Video Spectra 1.5 | | Format | 16:10 wide format | | Length | Case: 105.5" (268 cm) | | Viewing Area (HxW) | 60 x 96" (152 x 244 cm) | | System Requirements | For Webcam:
Windows 7 or 8 (Note: Win 7 today would be HD through MJPG)
Mac OS X 10.7 or higher 2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port (USB 3.0 ready) | | | | Package Weight | 94.0 lb | | Box Dimensions (LxWxH) | 114.0 x 13.0 x 10.0" |
