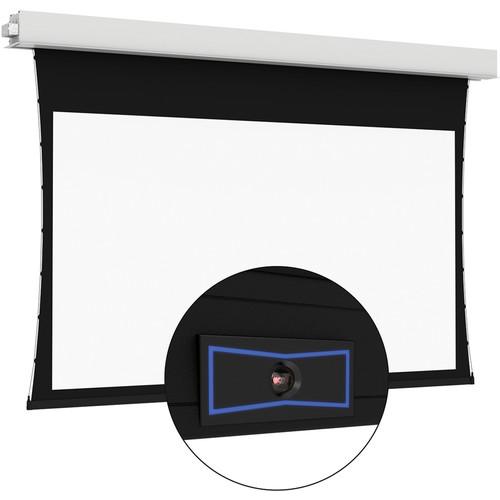

User Manual for Da-Lite ViewShare Tensioned Advantage 72.5 x 116" 16:10 Screen with Da-Mat Surface Click to enlarge the picture
Contents of the user manual for the Da-Lite ViewShare Tensioned Advantage 72.5 x
- Product category: Video Conference Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Video Conference Screens
|
User manual for the Da-Lite ViewShare Tensioned Advantage 72.5 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The ViewShare Tensioned Advantage 72.5 x 116" 16:10 Screen with Da-Mat Surface (Full Assembly, 220V) from Da-Lite integrates an HD camera into the screen and is compatible with any free peer-to-peer video conferencing software.Designed to eliminate the extra step of finishing the screen with trim, the screen features ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening, eliminating the need to complete additional trim work. Sliding installation brackets are provided to make it easy to attach the screen housing to the structure above the drop ceiling.The ViewShare system screen features simple ceiling-tile installation that can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage.This item is wired for 220V European. - Da-Mat Surface
-
- Da-Mat is a unity gain vinyl surface with a smoother surface than Matte White. It features a white surface for good color reproduction for environments with controllable ambient light. Da-Mat has a gain of 1.0 and a cone of 120°.
- Tensioning System
-
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Logitech C930e HD Webcam
-
- Auto-focusing camera integrated into the slat bar
- Plug-and-play connectivity
- Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
- H.264/SVC video compression
- Supports H.264 SVC 1080p for Microsoft Lync 2013, along with optimizations for call performance in single or multiparty HD video
- 90° field of view
- Up to 4X zoom in 1080p
- Rightlight 2 Technology for clear image in various lighting environments, even low light
- Optional light application for control of pan, tilt and zoom
- Carl Zeiss lens
- External privacy shutter
- Automatic low-light correction
- High-speed USB 2.0 certified
- System requirements: Windows 7 or 8 / Mac OS X 10.7 or higher
- 2.4 GHz Intel Core 2 Duo processor
- 2GB of RAM
- Adequate hard drive space for recorded videos
- USB 2.0 port
- Compatible with UVC apps, and H/264 for Lync 2013
- Optimized for Lync and Skype
- Silent Motor
-
- Designed to provide silent operation when raising or lowering the screen
- Low Voltage Control
-
- Keeps screen operation flexible
- Black Backing
-
- Black-backed screen material for enhanced image quality and opacity
- Additional Features
-
- Simple installation with the included installation kit
- Standard black backing retains projected brightness on front projection surfaces
- Seamless screen surface
UPC: 717068380837 In the Box Da-Lite ViewShare Tensioned Advantage 72.5 x 116" 16:10 Screen with Da-Mat Surface (Full Assembly, 220V) Decora-Style Three-Button Wall Switch Limited 5-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite ViewShare Tensioned Advantage 72.5 x 116" 16:10 Screen with Da-Mat Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24074ELSI Specs | | | Series | Viewshare Tensioned Advantage Electrol | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 72.5 x 116.0" / 184.2 x 294.6 cm | | Diagonal | 137.0" / 347.1 cm | | | | Finish Name | Da-Mat | | Gain | 1.0 | | Viewing Angle | 120 degrees | | Tensioned | Yes | | Black Backing | Yes | | | | Motor | Quiet | | Included Controls | Low voltage control, Sync with projector |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
