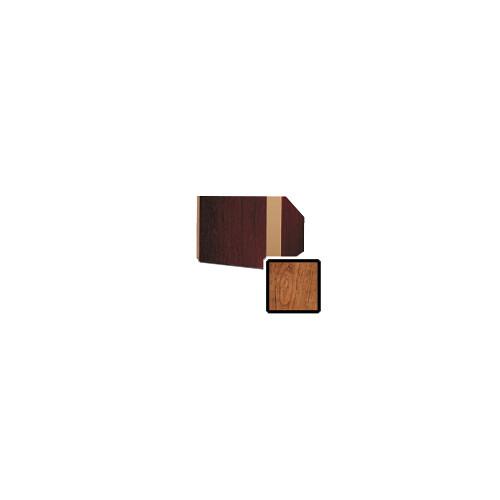

User Manual for Da-Lite Yorkshire 25" Tabletop Lectern with Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Da-Lite Yorkshire 25" Tabletop Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Yorkshire 25" Tabletop Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Da-Lite Yorkshire 25" Tabletop Lectern with Gooseneck Microphone features a cherry veneer, bronze trim running down the front edges, and built-in sound system. The unit is designed to be placed on a table, but act as a full-size lectern. The large slanted reading surface will hold a 3-ring binder.The built-in sound system features a dynamic gooseneck microphone that is powered by a 70 watt amplifier. The dashboard features on/off controls for the built-in high-intensity reading light, speaker on/off, mic volume, bass/treble controls, and the LED digital clock with countdown timer. In the Box Da-Lite Yorkshire 25" Tabletop Lectern with Gooseneck Microphone (Cherry Veneer, Bronze Trim) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Yorkshire 25" Tabletop Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 75957CHVBZ Specs | Construction | Wood | | Finish | Cherry veneer
Bronze trim | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB | | Microphone | Dynamic gooseneck | | Speaker | One; 70 W @ 4 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 VAC, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble | | Casters | None | | Power Requirements | 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet | | Power Consumption | 120 watts max; 40 watts nominal | | Shelf | None | | Reading Surface | 22.5 x 15.5" (57.0 x 39.0 cm) | | Dimensions | 18.0 x 25.0 x 22.0" (45.7 x 63.5 x 56 cm) | | Weight | 48 lb (22 kg, approx) | | | | Package Weight | 61.0 lb | | Box Dimensions (LxWxH) | 28.0 x 28.0 x 28.0" |
