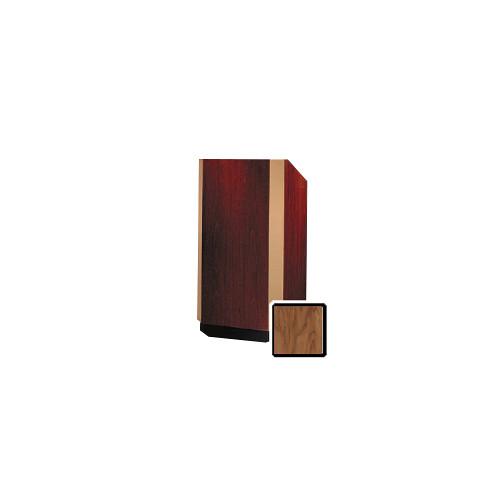

User Manual for Da-Lite Yorkshire 32" Floor Lectern with Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Da-Lite Yorkshire 32" Floor Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite Yorkshire 32" Floor Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Da-Lite Yorkshire 32" Floor Lectern with Gooseneck Microphone is a wooden unit that features a natural walnut veneer and vertical brass trim that runs down the front edges. There is an over-sized reading surface large enough for a 3-ring binder as well as a rear storage shelf for collateral material.A 120VAC, 60Hz AmpliVox 70W amp sound system is provided that features multiple inputs and outputs including two aux outputs for optional satellite speakers. The built-in 70 watt speaker includes a 6.5" woofer and high-output tweeter. The lectern features a dynamic gooseneck microphone.The dashboard features a high-intensity reading light and LED clock/timer with countdown function. Additionally, the dashboard has controls for the speaker and light as well as two power outlets for optional equipment. The lectern features a 12' power cord suitable for a North American outlet. Two non-lockable casters provide mobility. In the Box Da-Lite Yorkshire 32" Floor Lectern with Gooseneck Microphone (Natural Walnut Veneer, Brass Trim) Limited One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite Yorkshire 32" Floor Lectern with Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 75941NWVBS Specs | Construction | Wood
Rectilinear design with brass trim | | Finish | Natural walnut veneer | | Adjustments | None | | Sound System | AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3 dB | | Speaker | One; 70 W @ 4 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter | | Connectors | Two 110-125 V, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffered, isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks) | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Microphone | Dynamic gooseneck | | Controls | Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble
Clock/timer settings | | Casters | Two; non-lockable | | Power Requirements | 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet | | Power Consumption | Not specified | | Reading Surface | 29.5 x 15.5" (74.9 x 39.4 cm) | | Shelf | 19.0 x 9.5 x 29.5" (48 x 24 x 75 cm) | | Dimensions | 22.0 x 48.0 x 32.0" (56 x 122 x 81 cm) | | Weight | 133 lb (60 kg, approx) | | | | Package Weight | 155.0 lb | | Box Dimensions (LxWxH) | 58.0 x 38.0 x 28.0" |
