User Manual for Dahle High-Capacity Shredder Click to enlarge the picture
Contents of the user manual for the Dahle High-Capacity Shredder
- Product category: Shredders Dahle
- Brand: Dahle
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahle Shredders
 |
User manual for the Dahle High-Capacity Shredder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahle product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahle user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahle product will considerably shorten its lifespan!
|
Product description The High-Capacity Shredder from Dahle quickly and safely destroys confidential paper waste such as bank statements, credit applications, and financial records. With a capacity of 25 to 30 sheets per pass, this shredder reduces paper—and credit cards—into 0.08 x 0.56" cross-cut pieces in conformance with security level P-5 standards. The opening is 16" wide and accommodates both letter- and legal-size sheets, which can be fed without removing staples and paper clips since the shredder cuts through them as well.

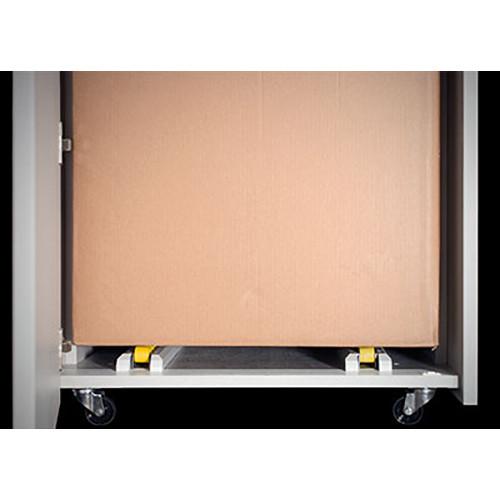

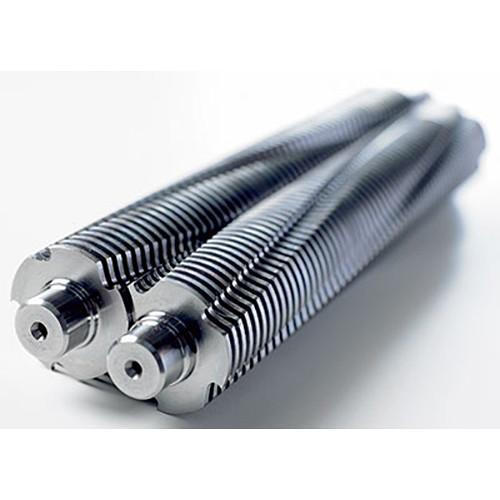

This high-capacity shredder includes a number of electronic capabilities designed to maximize safety and convenience. The shredder engages automatically when paper is inserted into the feed opening and stops once the paper has passed completely through the shredding mechanism. To rule out accidents, the machine shuts off automatically when the cabinet door is opened. The shredder also shuts off when the waste drawer reaches its maximum capacity, notifying you it is time to empty the box or change the bag. Lastly, the cylinders reverse when they are over-fed to prevent jamming. The machine is housed in a sturdy wooden cabinet with casters, making it easy to move within your office. Rollers on each side of the cabinet allow for easy removal of the 50-gallon shredded-waste container. - Two precision-milled solid steel cutting cylinders
- Steel chain and gears cylinder connection
In the Box Dahle High-Capacity Shredder (16" Feed, 25-30 Sheet Capacity) Limited 2-Year Warranty for Shredder Limited Lifetime Warranty for Cutting Cylinders Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahle High-Capacity Shredder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahle 20392 Specs | Feed Opening | 16" (40.6 cm) | | Particle Size | 0.08 x 0.56" (2.03 x 14.22 mm) cross-cut | | Sheet Capacity | 25-30 | | Security Level | P-5 | | Wastebin Capacity | 50 gallons (189 liters) | | Speed | 22 f/m | | Decibel Level | 60 dB | | Compatible With | 706 shred bag
739 shred box | | Electrical Requirements | Not specified by manufacturer | | Dimensions | 46.5 x 27.5 x 24.0" (118.1 x 69.9 x 61.0 cm) | | Weight | 328 lb (149 kg) | | | | Package Weight | 460.0 lb | | Box Dimensions (LxWxH) | 68.0 x 48.0 x 32.0" |
