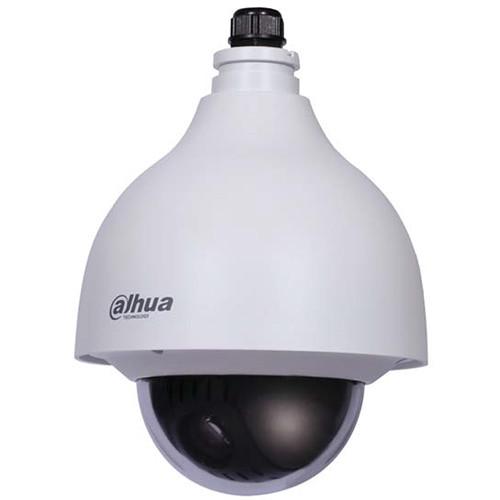

Product description The 2MP Outdoor HD-CVI PTZ Dome Camera from Dahua Technology uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. The 5.3-64mm varifocal lens delivers a 58.4 to 4.9° horizontal field of view. The camera features endless panning, a -2 to 90° tilt range, and 12x optical zoom. It has an audio input. HD-CVI, HD-TVI, AHD, and CVBS formats are supported.
This camera is equipped with a built-in heater. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Video transmission distance up to 2625'
- Starlight technology for visibility in low-light conditions
- IR cut filter enables day and night functionality
- Switchable between HD-CVI, HD-TVI, AHD & CVBS formats via OSD menu or PFM820 UTC controller (available separately)
- Dual video output signals (HD-CVI or CVBS)
- Auto and manual focus control
- 3.94 to 39.37" close focus distance
- 120 dB wide dynamic range, backlight compensation, and highlight compensation
- Auto and manual gain control
- White balance modes include auto, ATW, indoor, outdoor, and manual
- Privacy masking for up to twenty-four areas
- Two alarm inputs and one alarm output
- DORI Distance
-
- Detect (8 ppf): 2987'
- Observe (19 ppf): 1158'
- Recognize (38 ppf): 581'
- Identify (76 ppf): 289'
- PTZ Functions
-
- Endless panning
- 0.1 to 300°/s manual pan speed
- 300°/s preset pan speed
- -2 to 90° tilt range
- 0.1 to 120°/s manual tilt speed
- 200°/s preset tilt speed
- 180° auto flip
- 300 presets
- PTZ modes include five patterns, eight tours, auto pan, and auto scan
- Human-oriented focal length and speed adaptation
- Auto restore to previous PTZ and lens status after power failure
- Idle motion includes activate preset, scan, tour, and pattern if there is no command in the specified period
- Protocols include DH-SD and Pelco P/D (auto recognition)
UPC: 819290020175 In the Box Dahua Technology 2MP Outdoor HD-CVI PTZ Dome Camera with Heater 24 VAC/1.5A Power Supply Wall Mount Bracket Mount Adapter for Dome Camera (2.3 x 2.1") Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 2MP Outdoor HD-CVI PTZ Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 40212IC Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 1920 x 1080, 2 MP | | Electronic Shutter Speed | 1/300,000 to 1/3 Seconds | | Minimum Illumination | Color: 0.005 Lux at f/1.6
B&W: 0.0005 Lux at f/1.6 | | S/N Ratio | >50 dB | | | | Focal Length | 5.3-64mm | | Maximum Aperture | f/1.6-3.0 | | Field of View | Horizontal: 58.4 to 4.9° | | Optical Zoom | 12x | | Focus Control | Auto, Manual | | Close Focus Distance | 3.94 to 39.37" / 100 to 1000 mm | | | | Pan/Tilt | Pan: 0 to 360° Endless
Tilt: -2 to 90°
Auto Flip: 180° | | Manual Pan/Tilt Speeds | Pan: 0.1 to 300°/s
Tilt: 0.1 to 120°/s | | Preset Speeds | Pan: 300°/s
Tilt: 200°/s | | Number of Presets | 300 | | PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan | | Speed Setup | Human-Oriented Focal Length / Speed Adaptation | | Power Up Action | Auto Restore to Previous PTZ and Lens Status After Power Failure | | Idle Motion | Activate Preset, Scan, Tour, Pattern if There's No Command in the Specified Period | | Protocol | DH-SD, Pelco P/D (Auto Recognition) | | | | Resolution | 1920 x 1080
1280 x 720 | | Frame Rate | 1920 x 1080 at 30 fps
1280 x 720 at 60 fps
1280 x 720 at 30 fps | | Video Output | 1 x BNC
HD-CVI, AHD, HD-TVI, CVBS (Switchable) | | Transmission Distance | RG-59/U:
720p: 1640.42' / 500 m
1080p: 1312.24' / 400 m
RG-6/U:
720p: 2624.67' / 800 m
1080p: 1968.5' / 600 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1246.72' / 380 m
1080p: 1246.72' / 380 m | | Day/Night | Auto IR Cut Filter, Color, B&W | | OSD Menu | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish | | Backlight Compensation | BLC, HLC, WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | 2D-DNR, 3D-DNR | | Advanced Features | Defog | | Digital Zoom | 16x | | Flip | 180° | | Privacy Masking | Up to 24 Areas | | | | Video | 1 x BNC Output | | Audio | 1 x Audio Input | | RS-485 | 1 x RS-485 Port | | Alarm | 2 x Alarm Inputs
1 x Alarm Output | | | | Power Supply | 24 VAC, 3 A (±10%) | | Power Consumption | 10 W
19 W with Heater On | | Operating Conditions | -40 to 140°F / -40 to 60°C
Less than 90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | Casing | Metal | | Certifications | CE: EN55032, EN55024, EN50130-4
Safety: UL60950-1+CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B, ANSI C63.4-2014 | | Dimensions | Ø7.33 x 9.23" / Ø186.2 x 234.4 mm | | Weight | 5.07 lb / 2.3 kg | | | | Package Weight | 10.065 lb | | Box Dimensions (LxWxH) | 13.8 x 10.3 x 10.2" |
