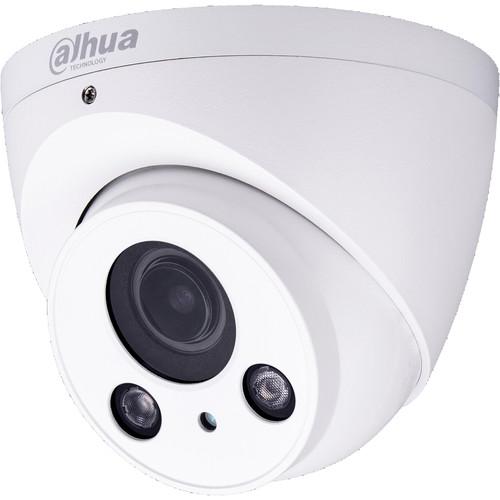

User Manual for Dahua Technology 2MP Starlight Outdoor HD-CVI Eyeball Camera with 2.7-13.5mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology 2MP Starlight Outdoor HD-CVI
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology 2MP Starlight Outdoor HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 2MP Starlight Outdoor HD-CVI Eyeball Camera from Dahua Technology utilizes a 2MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video. It features Starlight Technology for ultra-low light sensitivity. The camera offers WDR of up to 120 dB for capturing images under varied lighting conditions. It also features HD and SD switchable output and integrated smart IR. -
- 1920 x 1080 maximum resolution at 30 fps
- HD and SD switchable output
- Starlight Technology for ultra-low light sensitivity
- Supports multiple video formats: HD-CVI, CVBS, AHD, and TVI
- 2.7-13.5mm motorized optical zoom lens
- Integrated smart IR with 98' distance
UPC: 819290020137 In the Box Dahua Technology 2MP Starlight Outdoor HD-CVI Eyeball Camera with 2.7-13.5mm Lens and Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 2MP Starlight Outdoor HD-CVI Eyeball Camera with 2.7-13.5mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A22AH9Z Specs | | | Image Sensor | 2 MP 1/2.8" progressive scan CMOS | | Effective Pixels | 1937 x 1097 | | Electronic Shutter Speed | 1/100,000 to 1/30 sec | | Minimum Illumination | Color: 0.005 lux at f/1.3, 30 IRE
0 lux with IR on | | S/N Ratio | >65 dB | | IR Distance | Up to 196.9' (60 m) | | IR Control | On/Off: Auto/manual | | Number of IR LEDs | 2 | | | | Lens Type | Motorized lens / fixed iris | | Mount Type | Board-in | | Focal Length | 2.7-13.5mm | | Aperature | f/1.3 | | Horizontal Angle of View | 99 to 29° | | Focus Control | Auto, Manual | | Close Focus Distance | 7.87" / 200mm | | | | DORI Distance | Detect / 8 ppf
Wide: 154' / 47 m
Telephoto: 502' / 153 m
Observe / 19 ppf
Wide: 62' / 19 m
Telephoto: 200' / 61 m
Recognize / 38 ppf
Wide: 30' / 9 m
Telephoto: 102' / 31 m
Identify / 76 ppf
Wide: 16' / 5 m
Telephoto: 49' / 15 m | | | | Pan Range | 0 to 360° | | Tilt Range | 0 to 78° | | Rotation Range | 0 to 360° | | | | Resolution | 1080p (1920 x 1080) | | Frame Rate | 1080p at 30 fps
720p at 30 fps | | Video Output | 1 x BNC HD-CVI HD Channel
1 x BNC CVBS, AHD, or TVI Channel (switchable) | | Transmission | RG-59/U Coax
720p: 2624.7' / 800 m
1080p: 1640.4' / 500 m
RG-6/U Coax
720p: 3937' / 1200 m
1080p: 2624.7' / 800 m
Cat 6 UTP (Balun Required)
720p: 1476.4' / 450 m
1080p: 984.3' / 300 m | | Day/Night | Auto (ICR), Manual | | OSD Menu | Multi-language | | Backlight Compensation | BLC, HLC | | Wide Dynamic Range | 120 dB true WDR | | Gain Control | AGC | | Noise Reduction | 2D/3D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Power Supply | 24 VAC
