User manual
Dahua Technology 2MP Starlight Outdoor PTZ

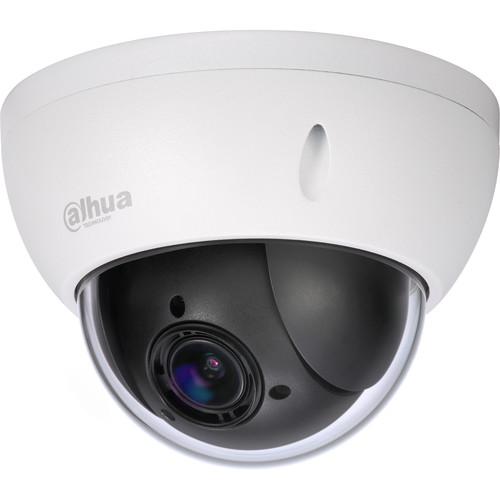

User Manual for Dahua Technology 2MP Starlight Outdoor PTZ Network Mini Dome Camera with 2.7-11mm Lens

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

Starlight Technology
• Starlight ultra-low light technology uses light sensitivity to capture color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene which produces clear images in dark environments.

Intelligent Video System (IVS) Standard Features
• IVS triggers an alarm and takes a defined action when it detects tampering with the camera, error writing to an onboard microSD card, error sending or receiving data over the network, and unauthorized access to the cameras.

IVS Premium Features
• In addition to the standard event triggers mentioned above, the camera offers premium event triggers. IVS triggers an alarm and takes a defined action when an object moves through any part of the scene, when a target crosses a user-defined line, when a target enters or exits a defined perimeter, when a person or object moves or obscures the camera, and when a target leaves an object in a designated area or removes an object from a designated area.

IVS Advanced Features
• IVS advanced features include facial detection which detects and captures a snapshot of a human face in a defined area within a scene.

Wide Dynamic Range
• 120 dB True Wide Dynamic Range (WDR) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

High Efficiency Video Coding
• H.265 compression expands the pattern comparison and difference-coding by improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Environmental
• The camera is designed for extreme temperature environments with an IK10 vandal-resistance rating and an IP66 rating for resistance to weather and water.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology Starlight Specs

Memory	1024 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	Remote Pan: 355° at 100°/s Remote Tilt: 90° at 60°/s
Alarm I/O	None
I/O Connections	1 x Power 1 x RJ45
Video Management Software	Smart PSS, DSS
Certifications	CSA, as per Manufacturer
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	10 W
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP66
IK Rating	IK10
