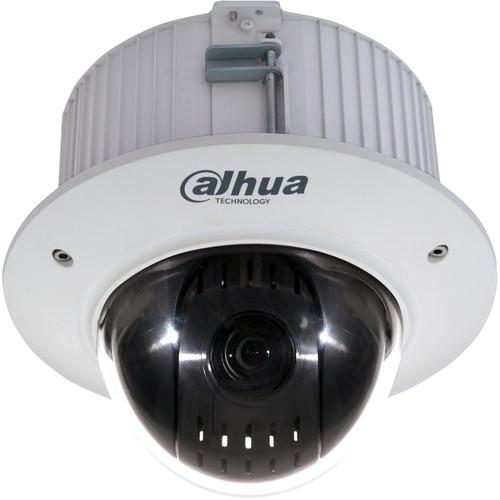

User Manual for Dahua Technology 2MP Starlight PTZ Network In-Ceiling Dome Camera with 5.3-64mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology 2MP Starlight PTZ Network
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology 2MP Starlight PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 2MP Starlight PTZ Network In-Ceiling Dome Camera from Dahua Technology is a 1/2.8" 2MP STARVIS sensor dome camera with up to 1920 x 1080 resolution at 30 fps. This dome camera has a 5.3-64mm lens with a 12x optical zoom. It features H.265, H.264, or MJPEG triple-streaming video compression, adjustable white balance, gain control, day and night auto ICR, digital noise reduction (2D, 3D Ultra DNR), a 120 dB wide dynamic range, and backlight compensation. The camera can be powered via PoE, simplifying installation and minimizing cable runs. - Starlight Technology
- Starlight ultra-low light technology can capture color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene which produces clear images in dark environments.
- Intelligent Video System (IVS) Standard Features
- IVS triggers an alarm and takes a defined action when it detects tampering with the camera, an error writing to an onboard microSD card, an error sending or receiving data over the network, and unauthorized access to the cameras.
- IVS Premium Features
- In addition to the standard event triggers mentioned above, the camera offers premium event triggers. IVS triggers an alarm and takes a defined action when an object moves through any part of the scene, when a target crosses a user-defined line, when a target enters or exits a defined perimeter, when a person or object moves or obscures the camera, and when a target leaves an object in a designated area or removes an object from a designated area.
- IVS Advanced Features
- IVS advanced features include facial detection which detects and captures a snapshot of a human face in a defined area within a scene.
- Wide Dynamic Range
- 120 dB True Wide Dynamic Range (WDR) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
- High Efficiency Video Coding
- H.265 compression expands pattern comparison and difference-coding by improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
- Interoperability
- The camera conforms to the Open Network Video Interface Forum (ONVIF) and to the Physical Security Interoperability Alliance (PSIA) specifications, ensuring interoperability between network video products.
- Environmental
- The camera is designed for extreme temperature environments and complies with an IK10 vandal resistance rating, making it capable of withstanding the equivalent of 11 lb of force dropped from a height of 15.75".
- Protection
- This camera is designed to be used for outdoor applications. Its 2kV lightning rating provides protection against the camera and its structure from the effects of lightning.
UPC: 819290021561 In the Box Dahua Technology 2MP Starlight PTZ Network In-Ceiling Dome Camera with 5.3-64mm Lens Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 2MP Starlight PTZ Network In-Ceiling Dome Camera with 5.3-64mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Starlight Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 5.3 to 64mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 12x | | Lens Field of View | Horizontal: 58.2 to 4.8° | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.0005 Lux | | Shutter Speed | 1/30000 to 1/1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 960 at 30 fps
1280 x 720 at 30 fps
704 x 480 at 30 fps
352 x 240 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | IVS | | Event Trigger | Yes | | Event Action | Alarm | | | | Memory | 1024 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 300°/s
Remote Tilt: 92° at 200°/s | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | Video Management Software | Smart PSS, DSS | | Certifications | CSA, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 12 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 90% | | IK Rating | IK10 | | Dimensions |
