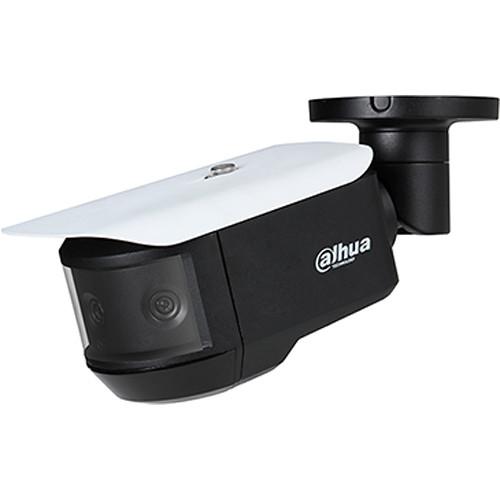

User Manual for Dahua Technology 3 x 2MP HD-CVI Outdoor Panoramic Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology 3 x 2MP HD-CVI
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology 3 x 2MP HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 3 x 2MP HD-CVI Outdoor Panoramic Bullet Camera from Dahua Technology utilizes three 1/2.8" progressive scan CMOS sensors and 3.6mm fixed lenses to capture HD analog video at a resolution up to 2MP each. It offers WDR of up to 120 dB for capturing images under varied lighting conditions. The camera supports up to 500m transmission over RG59 coaxial cable. It is equipped with HD-CVI Starlight technology and a Smart IR function (auto/manual). With an IP67-rated weather-resistant and IK10-rated vandal-resistant housing, this camera is suitable for outdoor applications. - Maximum 15 fps at 3840 x 832, 30 fps at 2560 x 554
- 120 dB true WDR, 2D and 3D-DNR
- HD-CVI Starlight technology
- Three simultaneous individual 2MP video outputs
UPC: 816116029787 Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 3 x 2MP HD-CVI Outdoor Panoramic Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Multi-Sensor Specs | | | Image Sensor | 3 x 2 MP 1/2.8" STARVIS CMOS sensors | | Effective Pixels (H x V) | 3840 x 832 | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/3 sec | | Minimum Illumination | Color: 0.007 lux at f/1.8
0 lux at f/1.8 with IR on | | S/N Ratio | >65 dB | | Number of IR LEDs and Range | 6 x IR LEDs, up to 65.6' (20 m) | | Day/Night | Auto, manual | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 3.6mm | | Maximum Aperture | f/1.8 | | Angle of View | Horizontal: 180° | | Close Focus Distance | 0.79" (20 cm) | | Pan/Tilt | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | | | Resolution | 3840 x 832, 2560 x 554 | | Frame Rate | 3840 x 832 at 15 fps, 2560 x 554 at 30 fps | | Video Output | 1-channel BNC HD-CVI panoramic video output and 3-channels BNC 2 MP HD-CVI video output | | Day/Night | Auto (electronic) / Manual | | OSD Menu | Multilanguage | | Backlight Compensation | BLC, HLC, WDR | | WDR Mode | 120 dB | | Gain Control | AGC | | Noise Reduction | 2D/3D | | White Balance | Auto/Manual | | Smart IR | Auto/Manual | | | | Alarm I/O | 2/1 | | Audio Interface | 1-channel audio in jack | | Test Applications | 1-channel 2-pin CVBS video output | | Upgrade Type | 1-channel 4-pin USB input | | Code | 1 x physical code switch (switch the preset video source) | | Menu Options | 1 x five-direction button | | | | Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | | Power Supply | 12 VDC
