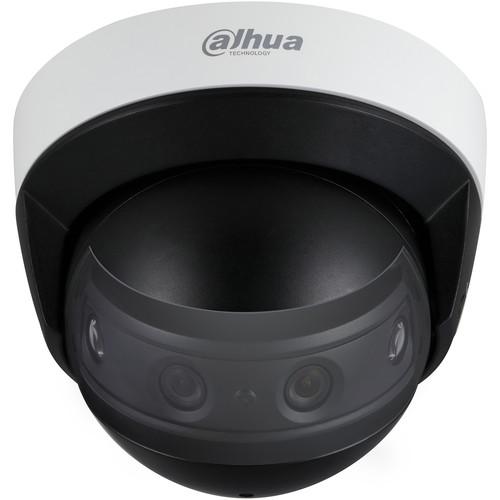

User Manual for Dahua Technology 4 x 2MP Multi-Sensor 180° Panoramic Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology 4 x 2MP Multi-Sensor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology 4 x 2MP Multi-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Multi-Sensor 180° Panoramic Outdoor Network Dome Camera from Dahua Technology uses four 1/2.8" 2MP progressive scan STARVIS CMOS sensors in tandem to create a 180° panoramic view. It captures 4096 x 1800 resolution video at 25 fps. The camera offers day/night functionality with an ICR and eight built-in IR LEDs provide night visibility to a range of 98'. Smart IR technology adjusts the intensity of the IR LEDs. For challenging low-light applications the camera features Starlight technology to capture color video to 0.007 lux. The camera offers Intelligent Video System (IVS) functions including tripwire violations, intrusion, abandoned/missing object, and motion detection. It also offers advanced features like heat mapping and E-PTZ functionality that add business intelligence to your security system. The camera uses Smart H.265+ compression that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. The camera comes with a built-in heater that gives it an operating temperature range of -40 to 140°F. Its 6kV lightning rating indicates effective protection for both the camera and its structure against lightning. The IP67- and IK10-rated housing protects the camera from harsh weather conditions and acts of theft or vandalism, making it suitable for outdoor applications. - Four 1/2.8" 2MP progressive scan STARVIS CMOS sensors
- Captures 4096 x 1800 resolution video at 25 fps
- Day/night functionality with mechanical IR cut filter
- Triple-stream encoding with Smart H.265+ compression
- Intelligent Video System (IVS) with tripwire violations, intrusion detection, abandoned/missing object, auto tracking, and face detection
- Heat map and E-PTZ functionality
- IP67- and IK10-rated enclosure for outdoor applications
In the Box Dahua Technology 4 x 2MP Multi-Sensor 180° Panoramic Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 4 x 2MP Multi-Sensor 180° Panoramic Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Multi-Sensor Specs | | | Image Sensor | 4 x 1/2.8" 2MP STARVIS CMOS sensors | | Effective Pixels | 4096 x 1800 | | Memory | RAM/ROM: 1024/128 MB | | Scanning System | Progressive | | Electronic Shutter Speed | Auto, Manual: 1/100,000 to 1/3 sec | | Minimum Illumination | Color: 0.007 lux at f/2.0 (1/3 sec, 30 IRE)
Color: 0.05 lux at f/2.0 (1/30 sec, 30 IRE)
0 lux at f/2.0 with IR on | | S/N Ratio | >50 dB | | IR Range | Up to 98.43' (30 m) | | IR Control | Auto, manual | | IR LEDs | 6 | | DORI Distance | Detect (8 ppf): 135' (41 m)
Observe (19 ppf): 53' (16 m)
Recognize (38 ppf): 26' (8 m)
Identify (76 ppf): 13' (4 m) | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 3mm | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 180°
Vertical: 80° | | Focus Control | Fixed | | | | Range | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation:
