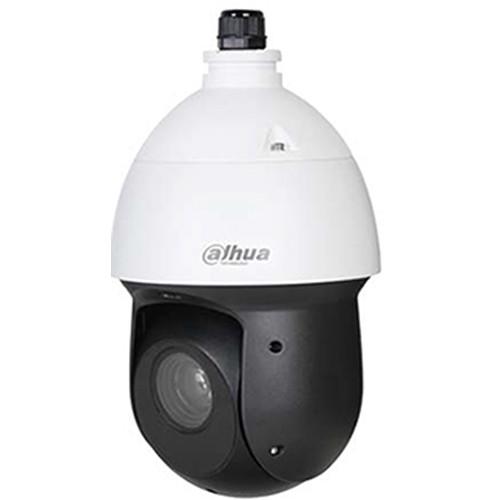

User Manual for Dahua Technology 49225IC Pro Series 2MP Outdoor PTZ HD-CVI Dome Camera with Night Vision & 4.8-120mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology 49225IC Pro Series 2MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology 49225IC Pro Series 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 49225IC Pro Series 2MP Outdoor PTZ HD-CVI Dome Camera from Dahua Technology features a 1/2.8" STARVIS CMOS sensor with a 25x optical zoom lens for capturing videos at a maximum resolution of 1920 x 1080. For applications with both bright and low light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. In addition, the camera also features PTZ (pan/tilt/zoom) control.
HD-CVI technology integrates traditional analog surveillance systems with HD video to protect security investments. The camera offers one BNC video output to transmit an HD-CVI or a CVBS signal. These output signals allow the camera to integrate with various devices, including analog matrix systems and monitors. With a built-in heater and temperature range of -40 to 158°F, the camera is designed for use in harsh temperature environments. The 6kV lightning rating means the camera and its structure are protected from the effects of lightning. In addition, this IP66-rated weather-resistant camera is suitable for use in outdoor environments. - Starlight Technology
- For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers high light sensitivity, capturing color details down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
- HD-CVI Technology
- HDCVI technology integrates traditional analog surveillance systems with HD video to protect security investments. The plug-and-play approach enables full HD video surveillance without the hassles of configuring a network.
- Long Distance Transmission
- HD-CVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or Cat 6 UTP cabling.
- Dual Video Output Signals
- The camera offers one BNC video output connection to transmit either an HD-CVI or a CVBS signal.
- True Wide Dynamic Range
- For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
- Defog
- Utilizing Dahua's advanced algorithm technology, the Defog feature dynamically adjusts the camera's contrast settings to provide improved image quality in scenes affected by fog, smog, mist, smoke, or other low-contrast interference.
- Environmental
- With a built-in heater and a temperature range of -40 to 158°F, the camera is designed for extreme temperature environments. Subjected and certified to dust and water immersion tests, the IP66 rating means it is suitable for demanding outdoor applications.
- Protection
- Its 6kV lightning rating indicates protection from the effects of lightning.
UPC: 816116026922 In the Box Dahua Technology 49225IC Pro Series 2MP Outdoor PTZ HD-CVI Dome Camera with Night Vision & 4.8-120mm Lens Power Supply PFB305W Wall Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 49225IC Pro Series 2MP Outdoor PTZ HD-CVI Dome Camera with Night Vision & 4.8-120mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 49225IC Specs | | | Image Sensor | 1/2.8" STARVIS CMOS sensor | | Effective Pixels | 1920 x 1080, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/300,000 to 1/30 seconds | | Minimum Illumination | Color: 0.005 lux at f/1.6
B&W: 0 lux at f/1.6 with IR on | | S/N Ratio | More than 55 dB | | IR Range | Up to 328.1' (100 m) | | IR Control | Auto/Manual | | IR LEDs | 6 | | | | Focal Length | 4.8-120mm | | Maximum Aperture | f/1.6 to f/4.4 | | Angle of View | Horizontal: 59.2 to 2.4° | | Optical Zoom | 25x | | Focus Control | Auto, Manual | | Close Focus Distance | 0.32 to 3.28' / 100 to 1000 mm | | DORI Distance | Detect (8 ppf): 5292' / 1613 m
Observe (19 ppf): 2119' / 646 m
Recognize (38 ppf): 1060' / 323 m
Identify (76 ppf): 528' / 161 m | | | | Pan & Tilt Range | Pan: 0 to 360° endless
Tilt: -15 to 90°
Auto Flip: 180° | | Manual Control Speed | Pan: 0.1 to 200°/second
Tilt: 0.1 to 120°/second | | Preset Speeds | Pan: 240°/second
Tilt: 200°/second | | Presets | 300 | | PTZ Mode | 5 pattern, 8 tour, auto pan, auto scan | | Speed | Human-oriented focal length / speed adaptation | | Power Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset, scan, tour, pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (Auto-recognition) | | | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720) | | Frame Rate | 1080p at 30 fps or 720p at 30/60 fps | | Transmission Rates | RG-59/U Coax
720p: 1640.4' / 500 m
1080p: 1312.3' / 400 m
RG-6/U Coax
720p: 2624.6' / 800 m
1080p: 1968.5' / 600 m
Cat 6 UTP (Balun Required)
720p: 1246.7' / 380 m
1080p: 1246.7' / 380 m | | Day/Night | Auto (ICR), Color, B&W | | OSD Menu | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish | | Backlight Compensation | BLC, HLC, WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | Ultra DNR (2D/3D) | | Digital Zoom | 16x | | Privacy Masking | Up to 24 areas | | | | Video | 1 x BNC | | Audio | Input: 1-channel | | RS-485 | 1 port | | Alarm | Input: 2 channels
Output: 1 channel | | | | Power Supply | 12 VDC, 3 A | | Power Consumption | 13 W, 20 W with IR on | | | | Operating Conditions | -40 to 158°F / -40 to 70°C with built-in heater, less than 90% RH | | Ingress Protection | IP66 | | Certifications | CE: EN 55032, EN 55024, EN 50130-4
UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B ANSI C63.4-2014 | | | | Casing | Metal | | Dimensions | 6.30 x 11.6" / 16 x 29.4 cm | | Weight | 8.8 lb / 3.9 kg |
