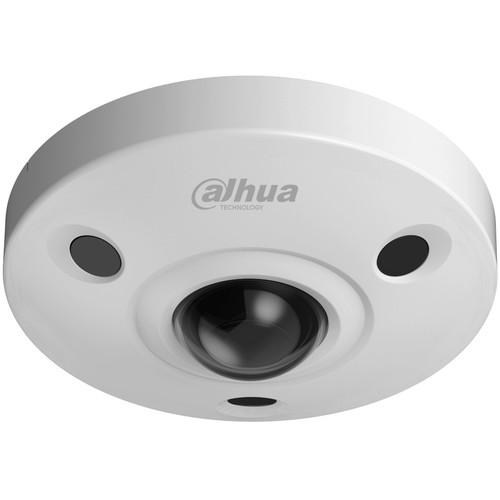

User Manual for Dahua Technology 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology 6MP Outdoor Vandal-Resistant Network
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology 6MP Outdoor Vandal-Resistant Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 6MP Outdoor Vandal-Resistant Network Fisheye Camera from Dahua Technology comes with a 1/1.8" progressive scan CMOS sensor and a 1.55mm fixed lens for capturing videos at a maximum resolution of 3072 x 2048 at 30 fps. This day/night camera provides 24-hour surveillance thanks to the built-in IR LEDs with a range of up to 33'. Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. Enclosed in an IP67- and IK10-rated housing, the camera can be used for both indoor and outdoor applications. - 1/1.8" 6MP progressive scan CMOS sensor
- H.264 and MJPEG dual-stream encoding
- Maximum 30 fps at 6MP (3072 x 2048)
- Multiple Dewarp Modes: Original, Panoramic, Double Panoramic, 1 + 3, ePTZ, and 4 pictures
- DWDR, Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, and BLC modes
- Multiple Network Monitoring: Web viewer, CMS(DSS/PSS), and DMSS
- IR LEDs have a range of up to 33'
- 2-way audio with built-in mic
- Features a microSD card slot
- Built-in IVS for advanced analytics and detection
- IP67 and IK10-rated housing
UPC: 856920006789 In the Box Dahua Technology 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-EBW86A0N Specs | | | Image Sensor | 1/1.8" 6 MP CMOS sensor | | Scanning System | Progressive | | Effective Pixels (H x V) | 3072 x 2048 | | Electronic Shutter | 1/3 (4) to 1/100,000 sec | | Minimum Illumination | 0.01 lux at f/2.2 (color)
0 lux at f/2.2 (IR on) | | S/N Ratio | >50 dB | | | | IR LED Range | 33' (10 m) | | IR LED Control | Auto/Manual | | Day/Night | Auto ICR / Color / B&W | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto / Manual | | Gain Control | Auto / Manual | | Noise Reduction | 3D-DNR | | Privacy Masking | Up to 4 areas | | | | Focal Length | 1.55 mm | | Maximum Aperture | f/2.0 | | Focus Control | Fixed | | Lens Type | Fixed | | Angle of View | 185° / 185° / 185° | | Mount Type | Board-in | | | | Compression | H.264/MJPEG | | Resolution | 6 MP (3072 x 2048)/ 3 MP (2048 x 1536)/ 1080P(1920 x 1080) | | Frame Rate | Main Stream: 6 MP at 1 to 30 fps
Sub Stream: D1/CIF at 1 to 30 fps | | Bit Rate | 40 to 8192 kb/s | | Fisheye Dewarp Mode | Original, Panoramic, Double Panoramic, 1 + 3, ePTZ, 4 pictures | | | | Interface | 1/1 channel in/out (built-in mic) | | | | Ethernet | RJ-45 (10/100 Base-T) | | Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, CGI, PSIA | | Max. User Access | 20 | | Mobile OS Support | iOS and Android | | | | Detection | Tripwire, intrusion, abandoned object, missing object, face | | | | Memory Slots | microSD, supports up to 64 GB | | Alarm | 2/1 channel in/out | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity (Non-Condensing) | <95% | | Ingress protection | IP67 | | Vandal Resistance | IK10 | | Power Supply | 12 VDC, PoE (802.3af) | | Power Consumption | <11 W (IR on) | | Dimensions (Ø x H) | 5.9 x 2" (150 x 50.7 mm) | | Weight | 1.28 lb (0.58 kg) | | | | Box Dimensions (LxWxH) | 8.07 x 7.64 x 7.56" |
