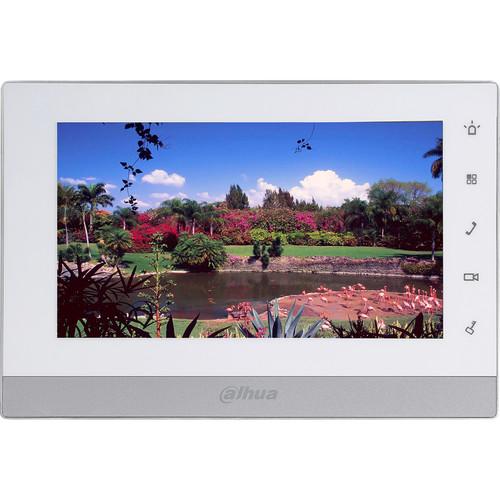

User Manual for Dahua Technology 7" Color Indoor Touchscreen Video Intercom Monitor Click to enlarge the picture
Contents of the user manual for the Dahua Technology 7" Color Indoor Touchscreen
- Product category: Indoor Stations Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Indoor Stations
|
User manual for the Dahua Technology 7" Color Indoor Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description See and talk to your visitors before letting them in with the 7" Color Indoor Touchscreen Video Intercom Monitor with 2-wire connection from Dahua Technology. Designed to integrate into your home's IP surveillance system, this surface-mounted 7" capacitive touchscreen monitor enables you to view the feed from a camera (available separately) outside your door live and in full color, at resolutions up to 800 x 400. The monitor's built-in speaker and omnidirectional microphone allow for two-way voice communication with visitors.
The indoor monitor communicates with IP cameras, electric locks, and other devices in your home security system over 10/100 Mbps Ethernet interface. A microSD card (available separately) can be added to the monitor for local storage of up to 32GB worth of video and images shot by your IP cameras via the intercom. An alarm interface with six input channels offers the convenience of integrating your alarm and intercom systems. UPC: 816116024041 In the Box Dahua Technology 7" Color Indoor Touchscreen Video Intercom Monitor (2-Wire) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 7" Color Indoor Touchscreen Video Intercom Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-VTH1550CHW-2 Specs | | | Main Processor | Embedded microprocessor | | Operating System | Embedded Linux | | | | Viewing Area | 7" TFT LCD, capacitive | | Resolution | 800 x 400 | | Input | Touchscreen technology and mechanical keys | | | | Audio | Two-way talk | | Audio Input | Omnidirectional Microphone | | Audio Output | Built-in speaker | | Audio Compression | G.711 | | Alarm Input | 6 | | Alarm Output | 1 | | RS-485 | 1 x port | | Memory | microSD, 32 GB maximum (available separately) | | | | Connection | 2-wire | | Video Compression | H.264 | | Ethernet | 10/100 Mbps, self-adaptive | | Network Protocol | TCP/IP | | | | Safety | EN 60950:2006+A2:2013 | | Electromagnetic Compatibility | FCC CFR 47 part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 | | | | Power | 12 VDC, supplied by VTNS1060A (available separately) | | Power Consumption | Standby: 1.5 W or less
Operation: 7 W or less | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90%, relative | | | | Installation | Surface mounted | | Dimensions | 7.89 x 5.37 x 0.87" (20 x 13.6 x 2.2 cm) | | Weight | 1.76 lb (0.8 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Dahua Technology 7" Color Indoor Touchscreen Video Intercom Monitor
| Subject: Dahua Technology DHI-VTH1550CHW-2 Specs Troubleshooting | | Date: 09.06.2022 07:25:46 | Name: Satish Kanani | Hi
The intercom button is not working and on the screens nearest to the front door there is an image of a monitor and buzzer with a Red Cross but the other 2 screens are fine?
What can I do to rectify and use the buzzer? | | Post reply |
