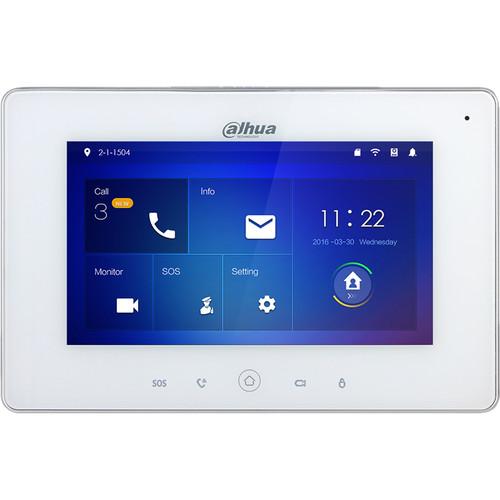

User Manual for Dahua Technology 7" Wi-Fi Color Monitor Indoor Door Station Click to enlarge the picture
Contents of the user manual for the Dahua Technology 7" Wi-Fi Color Monitor
- Product category: Indoor Stations Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Indoor Stations
|
User manual for the Dahua Technology 7" Wi-Fi Color Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The 7" Wi-Fi Color Monitor Indoor Door Station is a surface-mounted display designed to be integrated with any Dahua video intercom system. It connects to the intercom over Wi-Fi and allows you to see who's at the door and speak with them over two-way voice thanks to a built-mic and speaker. Additionally, offering six alarm input channels, the monitor allows you to integrate your alarm systems.
The monitor features a 7" capacitive touchscreen display, 1024 x 600 resolution, a microSD card slot for storing video recordings and snapshots of your visitors, and Power-over-Ethernet, allowing for cleaner and neater installation.
The 7" Wi-Fi Color Monitor supports group calls, meaning that when you install multiple units throughout a building, all of them will ring when a visitor rings the doorbell (although only one can be used to see and communicate with the visitor at a time). It is also compatible with networked electronic door locks and allows you to remotely unlock up to two doors. - Key Features
-
- Connects to any Dahua video intercom systems over Wi-Fi or Ethernet
- Video monitoring of and two-way voice communication with visitors at the door
- 7" capacitive touchscreen display
- 1024 x 600 resolution
- microSD card slot for video recording and snapshot storage
- Power-over-Ethernet
- Six alarm input channels
- Group call support
- Networked electronic lock compatibility (up to two doors)
UPC: 816116024058 In the Box Dahua Technology 7" Wi-Fi Color Monitor Indoor Door Station Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 7" Wi-Fi Color Monitor Indoor Door Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-VTH5221D Specs | | | Main Processor | Embedded microprocessor | | Operating System | Embedded Linux | | | | Viewing Area | 7" LCD, capacitive | | Resolution | 1024 x 600 | | Input | Touchscreen display | | | | Audio | Input: Omnidirectional microphone
Output: Built-in speaker
Two-way talk | | Audio Compression | G.711 | | Alarm | Input: 6 x channels
Output: 1 x channel | | RS-485 | 1 x port | | Memory | microSD card slot, up to 32 GB cards supported (sold separately) | | | | Video Compression | H.264 | | Wi-Fi | IEEE 802.11b/g/n | | Ethernet | 10/100 Mb/s, self-adaptive | | Network Protocol | TCP/IP | | | | Safety | EN 60950:2006+A2:2013 | | Electromagnetic Compatibility | FCC CFR 47 part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 | | | | Power | 12 VDC or PoE (802.3af) | | Power Consumption | Standby: 1 W or less
Operation: 8 W or less | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90%, relative | | | | Installation | Surface mounted | | Dimensions | 8.46 x 5.51 x 0.83" / 21.5 x 14.0 x 2.1 cm | | Weight | 1.76 lb / 0.8 kg | | | | Package Weight | 1.53 lb | | Box Dimensions (LxWxH) | 11.95 x 7.95 x 3.0" |
