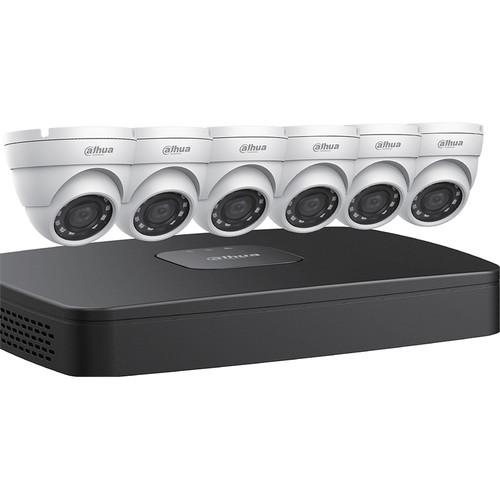

Product description Monitor your home or business with the 8-Channel 8MP NVR with 2TB HDD & 6 4MP Night Vision Mini Turret Cameras Kit from Dahua Technology. The 8-channel NVR enables you to record from and manage up to eight cameras. It comes preinstalled with a 2TB HDD. If more space is required, storage is expandable to 6TB.
The included 4MP mini turret cameras capture 2688 x 1520 resolution at 20 fps from a 2.8mm fixed lens that delivers a 104° horizontal field of view. The cameras have a night vision range up to 98'. They are IP67 rated for outdoor use. - NVR Features
-
- Quad-core embedded processor and Linux OS
- Plug-and-play operation
- Smart H.265+, H.265, Smart H.264+, and H.264 video compressions
- 80 Mb/s maximum recording rate
- Configurable recording options and schedules that save HDD space and active monitoring time
- Two-way audio supported
- HDMI and VGA video outputs
- Two USB 2.0 ports
- 100M RJ45 port
- Compatible with iOS and Android
- Up to 128 users
- Camera Features
-
- Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations and intrusion detection, along with support for tamper detection
- Built-in heater
- Smart IR
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compressions
- Unicast and multicast streaming methods
- CBR and VBR
- Fixed focus control
- Camera pivots horizontally from 0 to 360° and vertically from 0 to 90°
- 0 to 360° rotation
- 16x digital zoom
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- >50 dB S/N ratio
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- 3D-DNR
- Motion detection for four zones (rectangular)
- ROI (region of interest) for four zones
- Privacy masking for four areas (rectangular)
- Flip perspective for 0, 90, 180, and 270°
- Mirroring
- Up to 20 users
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Smart PSS and DSS management software
- Records to microSD card, local PC, and NAS edge storage
- ±25% input voltage tolerance and 2kV lightning protection
- DORI Distance
-
- Detect (8 ppf): 207'
- Observe (19 ppf): 82'
- Recognize (38 ppf): 43'
- Identify (76 ppf): 20'
UPC: 819290026450 In the Box Dahua Technology 8-Channel 8MP NVR with 2TB HDD & 6 4MP Night Vision Mini Turret Cameras Kit 6 x N41BK22 4MP Outdoor Network Mini Turret Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 8-Channel 8MP NVR with 2TB HDD & 6 4MP Night Vision Mini Turret Cameras Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N484E62 Specs | | | Main Processor | Quad-Core Embedded Processor | | Operating System | Embedded Linux | | IP Camera Input | 8 | | Audio Input | 1 x Microphone, RCA | | Audio Output | 1 x RCA from Camera or Microphone | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, | | Supported IP Camera Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, 960H, D1, CIF | | Recording Rate | 80 Mb/s Maximum | | Bit Rate | 16 kb/s to 20 Mb/s per Channel | | Record Mode | Manual, Schedule (Regular, Continuous), Motion Detection, Tampering, Video Loss, Stop | | Recording Intervals | 1 to 120 Minutes (Default: 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | Interface | 1 x HDMI
1 x VGA | | Output Native Resolutions | HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 | | Maximum Decoding | Two Channels of 8 MP at 30 fps
Four Channels of 4 MP at 30 fps
Eight Channels of 1080p at 30 fps | | Multi-Screen Display | 1/4/8/9 | | OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | | Network Interface | 1 x 100M RJ45 Port | | PoE Ports | 8 x Ports (IEEE 802.3af/at) | | Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Supports Dahua IP Cameras, DVRs, NVS) | | Maximum User Access | 128 Users | | Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4, SDK, CGI | | Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer, and Screen Tips | | Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Tampering | | Playback | 1/4/9 | | Search Modes | Time/Date, Alarm, MD and Exact Search (Accurate to One Second), Smart Search | | Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom | | Backup Modes | USB Device, Network | | HDD | 1 x SATA III Port up to 6 TB (2 TB HDD Preinstalled) | | HDD Mode | Single | | USB | 1 x USB 2.0 (Front Panel)
1 x USB 2.0 (Rear Panel) | | Power Supply | 48 VDC, 1.5 A | | Power Consumption | <8.3 W without HDD | | Total PoE Power Budget | 25.5 W per Single Port, 80 W Total | | Operating Temperature | 14 to 131°F / -10 to 55°C, 86 to 106 kpa | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | Safety: UL 60950-1, EN 60950-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B, ANSI C63.4-2014, EN 55032, EN 50130-4
Immunity: EN 55024 | | Dimensions | 10.6 x 8.1 x 1.8" / 270 x 204.7 x 45.7 mm | | Weight | 1.43 lb / 0.65 kg (Without HDD) | | | | Image Sensor | 1/3" Progressive Scan CMOS | | Effective Pixels (H x V) | 2688 x 1520, 4 MP | | Electronic Shutter Speed | 1/100,000 to 1/30 Seconds (Auto, Manual) | | Minimum Illumination | Color: 0.08 Lux at f/2.0 (1/3 Seconds, 30 IRE)
Color: 0.3 Lux at f/2.0 (1/30 Seconds, 30 IRE)
B&W: 0 Lux with IR | | S/N Ratio | >65 dB | | IR Range | 98' / 30 m | | IR Control | Auto, Manual (On/Off) | | Number of IR LEDs | 12 | | Lens | 2.8mm Fixed Lens | | Mount Type | Board-In | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 104°
Vertical: 57° | | Focus Control | Fixed | | Angle Adjustments | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (Sub Stream Only) | | Streaming Capability | Two Streams | | Resolutions | 2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 480, 704 x 480, 352 x 240 | | Frame Rate | Main Stream: 4 MP at 20 fps or 3 MP at 30 fps
Sub Stream: D1 at 30 fps | | Bit Rate Control | CBR, VBR | | Day/Night | Auto IR Cut Filter, Color, B&W | | BLC | BLC, HLC, True WDR (120 dB) | | Gain Control | Auto, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Zones, Rectangular) | | Region of Interest | Off, On (4 Zones) | | Smart IR | Auto, Manual | | Digital Zoom | 16x | | Flip | 0, 90, 180, 270° | | Mirror | Off, On | | Privacy Masking | Off, On (4 Areas, Rectangular) | | Intelligent Video Analytics | Tampering
Memory Card Error
Network Error
Unauthorized Access
Motion
Tripwire
Intrusion | | Ethernet | 1 x 100M RJ45 | | Network Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4, IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF Profiles S & G, API | | Streaming Method | Unicast, Multicast | | Maximum User Access | 10/20 Users | | Edge Storage | NAS, Local PC for Instant Recording, microSD Card up to 128 GB | | Web Viewer | Internet Explorer, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | Power Supply | 12 VDC, 0.5 A or PoE (IEEE 802.3af, Class 0) | | Power Consumption | <5.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Storage Humidity | <95% RH | | Casing | Aluminum | | IP Rating | IP67 | | Certifications | Safety: UL60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B | | Dimensions | Ø3.7 x 3.1" / Ø93.4 x 79.4 mm | | Weight | 0.66 lb / 0.3 kg | | | | Package Weight | 12.685 lb | | Box Dimensions (LxWxH) | 19.15 x 12.7 x 9.6" |
