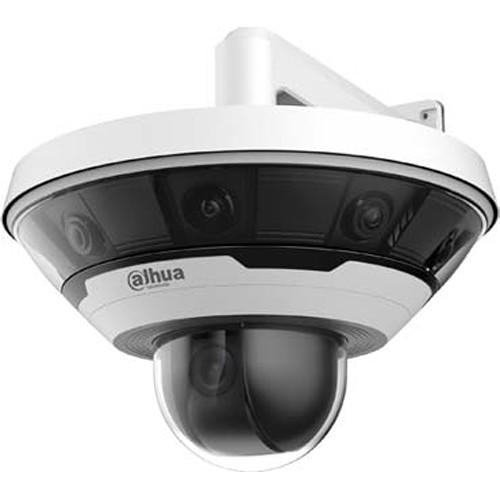

Product description The 8 x 2MP Multi-Sensor 360° Panoramic Outdoor Camera with Integrated 2MP PTZ Network Camera from Dahua Technology combines eight 2MP sensors in tandem to create a 360° panoramic view, and a high-speed PTZ camera to focus on a specific area of the 360° scene. The panoramic camera can capture two video feeds in 4096 x 1800 resolution at 25 fps, while the PTZ camera captures 1920 x 1080 resolution video at 60 fps. For challenging low-light applications the camera features Starlight technology to capture color video to 0.005 lux. Furthermore, ultra wide dynamic range up to 140 dB, 3D-DNR, AWB, AGC, and BLC enhance images in varying lighting conditions. The camera offers Intelligent Video System (IVS) functions including tripwire violations, intrusion, auto tracking, abandoned/missing object detection, and face detection. Smart H.265+ uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) standards, ensuring interoperability between third-party network video products. The camera comes with a built-in heater that gives it an operating temperature range of -40 to 158°F. The IP67- and IK10-rated housing protects the camera from harsh weather conditions and acts of theft or vandalism, making it suitable for outdoor applications. - 360° panoramic camera with eight 1/1.9" 2MP progressive scan CMOS sensors capture video in two 4096 x 1800 resolution feeds at 25 fps
- PTZ camera with a 1/1.9" 2MP progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 60 fps
- Day/night functionality with mechanical IR cut filter
- Starlight technology for ultra-low light sensitivity
- Triple-stream encoding with Smart H.265+ compression
- Intelligent Video System (IVS) with tripwire violations, intrusion detection, abandoned/missing object, auto tracking, and face detection
- Operating temperature range of -40 to 158°F
- IP67- and IK10-rated enclosure for outdoor applications
UPC: 816116029800 In the Box Dahua Technology 8 x 2MP Multi-Sensor 360° Panoramic Outdoor Camera with Integrated 2MP PTZ Network Camera Mount Adapter Wall Mount Bracket 36 VDC / 4.17 A Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology 8 x 2MP Multi-Sensor 360° Panoramic Outdoor Camera with Integrated 2MP PTZ Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-PSD81602N-A360 Specs | | | Image Sensor | 8 x 1/1.9" 2 MP CMOS sensors | | Effective Pixels | 2 x 4096 x 1800 | | Scanning System | Progressive | | Electronic Shutter Speed | Auto, Manual: 1/3 to 1/100,000 sec | | Resolution | 2 x 4096 x 1800, 2 x 3840 x 1680, 2 x 2880 x 1264, 2 x 1920 x 832, 2 x 1280 x 560, 2 x 1024 x 452 | | Frame Rate | Main Stream: 25 fps at 2 x 4096 x 1800
Sub Stream: 30 fps at 2 x 1024 x 452
Sub Stream 2: 30 fps at 2 x 1920 x 832 | | Minimum Illumination | Color: 0.005 lux at f/2.2 (1/3 sec, 30 IRE)
Color: 0.03 lux at f/2.2 (1/30 sec, 30 IRE)
B&W: 0.003 lux at f/2.2 (1/3 sec, 30 IRE)
B&W: 0.02 lux at f/2.2 (/30 sec, 30 IRE) | | Bit Rate | H.265: 2 x 14 to 8192 kbps
H.264: 2 x 24 to 8192 kbps | | S/N Ratio | >50 dB | | DORI Distance | Detect (8 ppf): 178' (53 m)
Observe (19 ppf): 69' (21 m)
Recognize (38 ppf): 33' (10 m)
Identify (76 ppf): 17' (5 m) | | Camera Type | Panoramic camera | | Lens Type | Fixed | | Lens Mount Type | Board-in | | Focal Length | 5mm | | Maximum Aperture | f/2.2 | | Field of View | Horizontal: 360°
Vertical: 80° | | | | Image Sensor | 1 x 1/1.9" 2 MP CMOS sensor | | Effective Pixels | 1920 x 1080 | | Memory | RAM/ROM: 1024 MB / 128 MB | | Scanning System | Progressive | | Electronic Shutter Speed | Auto, Manual: 1/3 to 1/100,000 sec | | Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 60 fps at 1080p
Sub Stream: 60 fps at D1
Sub Stream 2: 60 fps at 1080p | | Minimum Illumination | Color: 0.002 lux at f/1.5 (1/3 sec, 30 IRE)
Color: 0.01 lux at f/1.5 (1/30 sec, 30 IRE)
B&W: 0.001 lux at f/1.5 (1/3 sec, 30 IRE)
B&W: 0.008 lux at f/1.5 (1/30 sec, 30 IRE) | | Bit Rate | H.265: 4 to 8192 kbps
H.264: 8 to 7168 kbps | | S/N Ratio | >50 dB | | DORI Distance | Wide-Angle:
Detect (8 ppf): 229' (70 m)
Observe (19 ppf): 92' (28 m)
Recognize (38 ppf): 46' (14 m)
Identify (76 ppf): 23' (7 m)
Telephoto:
Detect (8 ppf): 6824' (2080 m)
Observe (19 ppf): 2730' (832 m)
Recognize (38 ppf): 1365' (416 m)
Identify (76 ppf): 682' (208 m) | | Camera Type | PTZ camera | | Lens Type | Motorized/auto iris (hall-effect) | | Lens Mount Type | Board-in | | Focal Length | 5.5-206mm | | Maximum Aperture | f/1.5 | | Field of View | Horizontal: 65.8 to 2° | | Optical Zoom | 37x | | Focus Control | Motorized | | | | Range | Pan: 0 to 360°, endless
Tilt: -20 to 90°
Auto flip: 180° | | Manual Control Speed | Pan: 0.1 to 240°/sec
Tilt: 0.1 to 120°/sec | | Preset | 300 | | PTZ Mode | 5 patterns, 8 tours, auto pan, auto scan | | Speed | Setup: Human-oriented focal length and speed adaptation | | Power Failure Auto Recover | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset/Scan/Tour/Pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (auto recognition) | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | 3 streams | | Output Channels | 2 channels for stitched panoramic video
1 channel for PTZ video | | Bit Rate Control | CBR, VBR | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC/HLC/WDR | | White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | | Gain Control | Auto/Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off/on (4 zone, rectangle) | | Region of Interest | Off/on (4 zone) | | Defog | Support, PTZ camera only | | Digital Zoom | 16x | | Privacy Masking | Panoramic Camera: Off/on (4 area, rectangle)
PTZ Camera: Off/on (24 area, rectangle) | | | | Compression | G.711a, G.711Mu, AAC, G.726 | | | | Video | 1 x port (for PTZ camera only) | | Audio | 2 x inputs
1 x output | | RS-485 | 1 (for PTZ control) | | Alarm | 7 x inputs (5 VDC, 5 mA)
2 x outputs (30 VDC, 1 A; 50 VAC, 0.5 A) | | | | Alarm Triggers | Tampering with the camera
Camera loses or changes focus drastically
Error writing to an onboard microSD card
Error sending or receiving data over the network
Unauthorized access to the camera
Motion detection
Tripwire detection
Intrusion detection
Scene change
Abandoned/missing object
Auto tracking | | | | Ethernet | 1 x RJ45 (10/100Base-T) | | Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | IP Addresses | Default: 192.168.1.108 (Camera uses a single IP address for all sensors) | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / multicast | | Maximum User Access | 10 users / 20 users | | Edge Storage | NAS (Network Attached Storage)
Local PC for instant recording
microSD card, maximum 128 GB (card not included) | | Web Viewer | IE 10, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | | | Power Supply | 36 VDC | | Power Consumption | <120 W | | | | Temperature | -40 to 140°F (-40 to 60°C) with built-in heater | | Humidity | Less than 95% RH | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Metal | | Certifications | Safety EN 60950:2000 UL60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B | | Dimensions (Ø x H) | 17.7 x 13.5" (449.5 x 342.5 mm) | | Weight | 35.3 lb (16 kg) |
