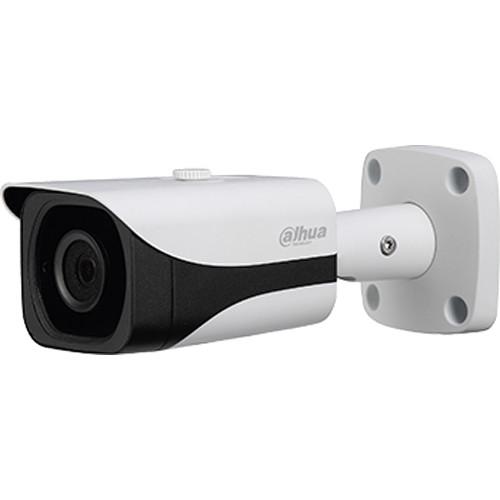

User Manual for Dahua Technology A42AB23 Pro Series 4MP Outdoor HD-CVI Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology A42AB23 Pro Series 4MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology A42AB23 Pro Series 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Suitable for outdoor use thanks to its IP67-rated enclosure, the A42AB23 Pro Series 4MP Outdoor HD-CVI Bullet Camera with Night Vision from Dahua Technology can capture 2560 x 1440 resolution video at up to 25 fps using HD-CVI. IR LEDs allow the camera to produce black and white images in complete darkness of objects up to 131' away. Wide Dynamic Range (WDR) and 3D-DNR further help produce accurate images in varying lighting conditions by reducing noise and compensating for extremely bright or dark environments. Its 3.6mm fixed lens has a 78° horizontal field of view to monitor medium-sized indoor or outdoor areas. - 1/3" progressive scan CMOS sensor captures 4MP video at up to 25 fps
- IR LEDs for night vision up to 131'
- Smart IR technology adjusts the intensity of the IR LEDs to compensate for object distance
- HD-CVI technology allows the camera to capture high-quality video over standard coax cable
- 3.6mm fixed lens has a 78° field of view
- Wide Dynamic Range (WDR) up to 120 dB
- 3D Noise Reduction (3D-DNR) reduces noise to produce clearer images in low light
- Dual video outputs (HD-CVI and CVBS)
- 4KV lightning resistance rating for protection against lightning strikes
- IP67-rated for outdoor use
UPC: 816116025055 In the Box Dahua Technology A42AB23 Pro Series 4MP Outdoor HD-CVI Bullet Camera with Night Vision Mounting Template Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology A42AB23 Pro Series 4MP Outdoor HD-CVI Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A42AB23 Specs | | | Image Sensor | 4.1 MP 1/3" progressive scan CMOS sensor | | Effective Pixels | 2688 x 1520 | | Electronic Shutter Speed | 1/3 to 1/300,000 sec | | Minimum Illumination | 0.03 lux at f/1.5
0 Lux (IR on) | | S/N Ratio | >65 dB | | Day/Night | Automatic IR cut filter, manual | | Number of IR LEDs and Range | 2 x IR LEDs, up to 131' (40 m) | | | | Type | Fixed lens and iris | | Mount Type | Board-in | | Focal Length | 3.6mm | | Aperture | f/1.5 | | Field of View | Horizontal: 78° | | Close Focus Distance | 59" (1500 mm) | | | | Resolution | 2560 x 1440 (4 MP) | | Frame Rate | 25 fps at 4 MP, 25/30 fps at 1080p, 25/30/50/60 fps at 720p | | Video Output | 1 x BNC HD-CVI, 1 x BNC CVBS | | On Screen Display Languages | Multi-language | | BLC | BLC, HLC, WDR | | WDR Technology | Up to 120 dB | | Gain Control | AGC | | Noise Reduction | 2D, 3D | | White Balance | Auto, manual | | Smart IR | Auto, manual | | Transmission Distance | Coaxial Cable: Up to 2300' (700 m) for 4 MP HD Video
UTP Cable: Up to 984' (300 m) for 4 MP HD Video | | | | Certifications | FCC (CFR 47 FCC Part 15 Subpart B), ANSI C63.4-2014, UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 7 W (12 VDC with IR LEDs on) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP67 | | Casing Material | Aluminum | | Dimensions | 7.1 x 2.8 x 2.8" (180 x 70 x 70 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.2 x 4.2 x 3.9" |
