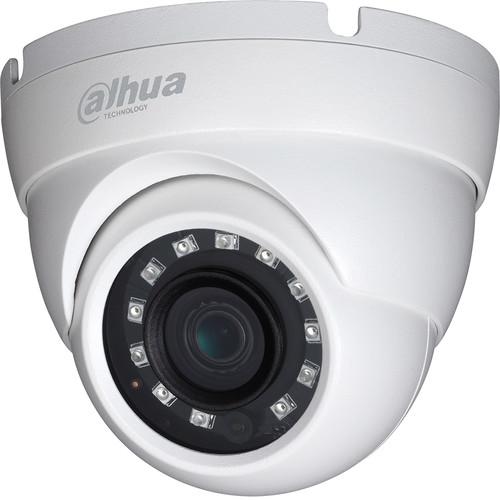

User Manual for Dahua Technology A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Dahua Technology A511K02 5MP Outdoor HD-CVI
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology A511K02 5MP Outdoor HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The A511K02 5MP Outdoor HD-CVI Turret Camera from Dahua Technology uses a 1/2.7" progressive scan CMOS sensor to transmit 2592 x 1944 resolution video at 20 fps. Twelve IR LEDs provide up to 98' of night vision. The camera's 2.8mm fixed lens delivers a 103° horizontal field of view. HD-CVI, HD-TVI, AHD, and CVBS formats are supported.
This camera is equipped with a built-in heater. It is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use. - Simultaneously transmits video, audio, and data over a single coax cable
- Compatible with Dahua HCVRs/DVRs
- Video transmission distance up to 3937'
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- 35.43" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- Backlight compensation, highlight compensation, and digital wide dynamic range
- Auto and manual white balance
- DORI Distance
-
- Detect (8 ppf): 207'
- Observe (19 ppf): 82'
- Recognize (38 ppf): 43'
- Identify (76 ppf): 20'
In the Box Dahua Technology A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A511K02 Specs | | | Image Sensor | 1/2.7" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 2592 x 1944 | | Electronic Shutter Speed | 1/100,000 to 1/30 Seconds | | Minimum Illumination | Color: 0.02 Lux at f/1.85, 30 IRE
B&W: 0 Lux with IR | | S/N Ratio | >65 dB | | IR Range | 98.04' / 30 m | | IR Control | On/Off Control (Auto, Manual) | | Number of IR LEDs | 12 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.85 | | Field of View | Horizontal: 103° | | Close Focus Distance | 35.43" / 900 mm | | | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | | | Resolution | 2592 x 1944 / 5 MP | | Frame Rate | 5 MP at 20 fps
4 MP at 30 fps
1080p at 30 fps | | Video Output | 1 x HD-CVI (BNC)
1 x CVBS, AHD, or HD-TVI (BNC, Switchable) | | Video Transmission Distance | RG-59/U:
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4 MP: 1640.42' / 500 m
RG-6/U:
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4 MP: 2296.59' / 700 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4 MP: 984.25' / 300 m | | Day/Night | Auto IR Cut Filter/Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, Digital WDR | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Power Supply | 12 VDC ±30% | | Power Consumption | Maximum 3.6 W at 12 VDC with IR | | Operating Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Storage Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Heater | Built-In | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | Safety: EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014 | | Dimensions (Diam. x H) | Ø3.68 x 3.13" / Ø93.4 x 79.4 mm | | Weight | 0.62 lb / 0.28 kg |
