User Manual for Dahua Technology Apartment Residential Video Intercom Outdoor Station with Remote Unlock Function Click to enlarge the picture
Contents of the user manual for the Dahua Technology Apartment Residential Video Intercom
- Product category: Door Stations Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Door Stations
|
User manual for the Dahua Technology Apartment Residential Video Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|

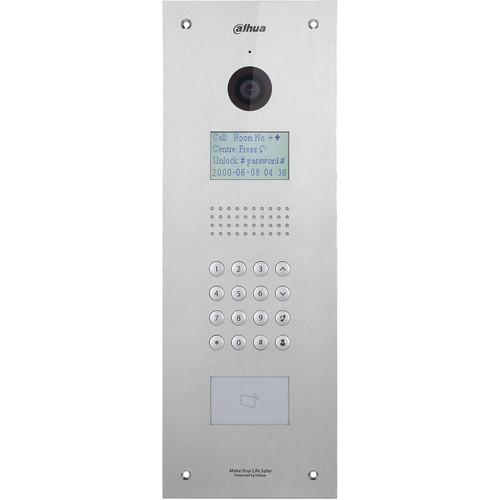

Product description Monitor your home's entrance and go keyless with the Apartment Residential Video Intercom Outdoor Station from Dahua Technology. Featuring a built-in camera with a 1.3MP CMOS sensor and automatic light compensation, this station captures the scene outside your door both during the day and at night. The speaker and microphone built into the station allow for two-way voice communication with callers at your door.
When someone rings your doorbell, you can watch the outdoor station's video feed on an indoor monitor or mobile device (both available separately). After seeing and talking to your visitors, you can choose to unlock the door – even from your mobile device if you happen to be away from home. Visitors ringing your doorbell are assisted by voice prompts and by instructions appearing on a 3" STN LCD screen. They can easily leave audio and video messages if no one answers.
Reliable and easy to use, the station grants comfortable access to family members and authorized visitors by integrating it with an access control system. All they have to do when coming home is wave a properly encoded IC card in front of the station's built-in proximity reader, or enter the right PIN code on a mechanical keypad. In the event of an emergency, the management center can be called from the station. The Intercom Outdoor Station is enclosed in an IP54- and IK07-rated stainless steel panel, ensuring protection from dust, water, and impact. It can be either surface- or flush-mounted. UPC: 816116023877 In the Box Dahua Technology Apartment Residential Video Intercom Outdoor Station with Remote Unlock Function Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Apartment Residential Video Intercom Outdoor Station with Remote Unlock Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-VTO1210C-X Specs | | | Main Processor | Embedded micro processor | | Operating system | Embedded Linux | | | | LCD Display | 3" STN screen | | Resolution | 128 x 64 | | | | Input | Mechanical buttons | | Door Opening | Built-in IC card induction reader
Password support | | Detection Range | IR, 3.28' (1 m) | | | | Image Sensor | 1.3 MP CMOS sensor | | Video support | Black light, auto-light compensation | | | | Audio | Input: Microphone
Output: Built-in speaker
Two-way talk | | Access Control | NO output
NC output
Door on/off button
Door status detection | | | | Ethernet | 10/100 Mbps, self-adaptive | | Network Protocol | TCP/IP | | Video Compensation | H.264 | | Audio Compression | G.711 | | | | Safety | EN 60950:2006+A2:2013 | | Electromagnetic Compatibility | FCC CFR 47 part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 | | | | Power | 12 VDC | | Power Consumption | Standby: 1 W or less
Operation: 10 W or less | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 10 to 95%, relative | | Ingress Protection | IP54 | | Vandal Resistance | IK07 | | | | Material | Stainless steel | | Installation | Surface or flush mount | | Dimensions | 16 x 5.6 x 1.7" (40.6 x 14.3 x 4.2 cm) | | Weight | 3.53 lb (1.6 kg) |
